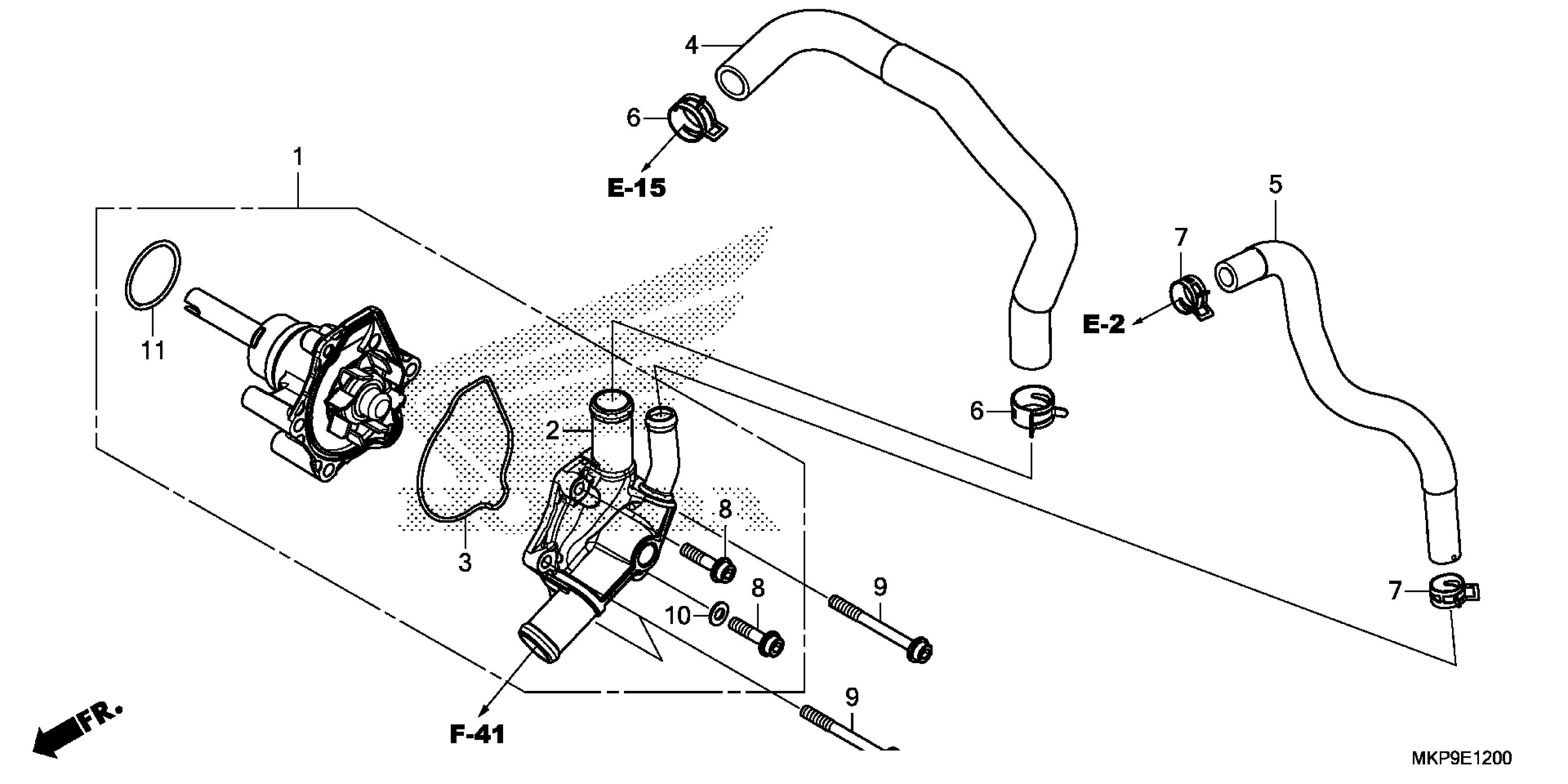

Honda CB500FAAC (23) MOTORCYCLE, THA, VIN# MLHPC635-P5400001 WATER PUMP Diagram

WATER PUMP

19200-MKP-305

$119.57

COVER, WATER PUMP

19220-MGZ-J00

$76.88

GASKET, WATER PUMP BODY

19226-MGZ-J00

$4.61

HOSE A, WATER

19525-MKP-D00

$32.43

HOSE, WATER BYPASS

19526-MKP-D00

$25.81

CLIP, WATER HOSE (D27)

19531-MJW-J00

$1.71

CLIP, WATER HOSE (D21)

19535-MJW-J00

$1.25

BOLT, FLANGE (6X25) (S-NSHF)

90028-GHB-680

$1.00

BOLT, FLANGE (6X60)

90028-GHB-780

$0.97

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.67
