Description

Price

2

COLLAR A, FR. FENDER

61103-KRY-900

$1.49

3

GROMMET, PANEL (INNER)

64285-MKP-J00

$1.49

4

FENDER SET A, RR. (TYPE1) (WL)

80100-MKP-A00ZA

$17.23

5

BRACKET, FENDER A

80102-MJW-J00

$63.97

6

FENDER ASSY. B, RR.

80104-MKP-J00

$31.42

7

COVER, RR. FENDER

80106-MJW-J00

$7.34

8

COLLAR, TAILLIGHT

80113-MGZ-J00

$1.98

9

BAND, TOOL

80123-GN5-900

$2.67

10

RUBBER, SIDE COVER

83545-KCJ-690

$1.49

11

BOLT, SPECIAL (6X16)

90107-K26-900

$1.49

12

BOLT, FLANGE (6MM)

90111-MKP-DN0

$1.49

13

BOLT, SPECIAL (10X16)

90115-MKP-J00

$1.87

14

RIVET, PUSH (6MM)

90116-K0A-E11

$1.49

15

SCREW, PAN (6X22)

90130-MKP-J00

$1.49

17

COLLAR, MOUNTING

90503-MJE-D40

$2.92

19

SCREW, TAPPING (4X12)

93903-24380

$1.49

20

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

21

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

22

COLLAR, FR. WHEEL COVER (FOR RR.)

44125-MN5-000

$5.12

23

BRACKET, NUMBER PLATE

84700-KYJ-920

$17.23

24

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

25

PLUG, HOLE

90852-446-630

$2.56

26

NUT, FLANGE (6MM)

94050-06000

$1.49

27

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

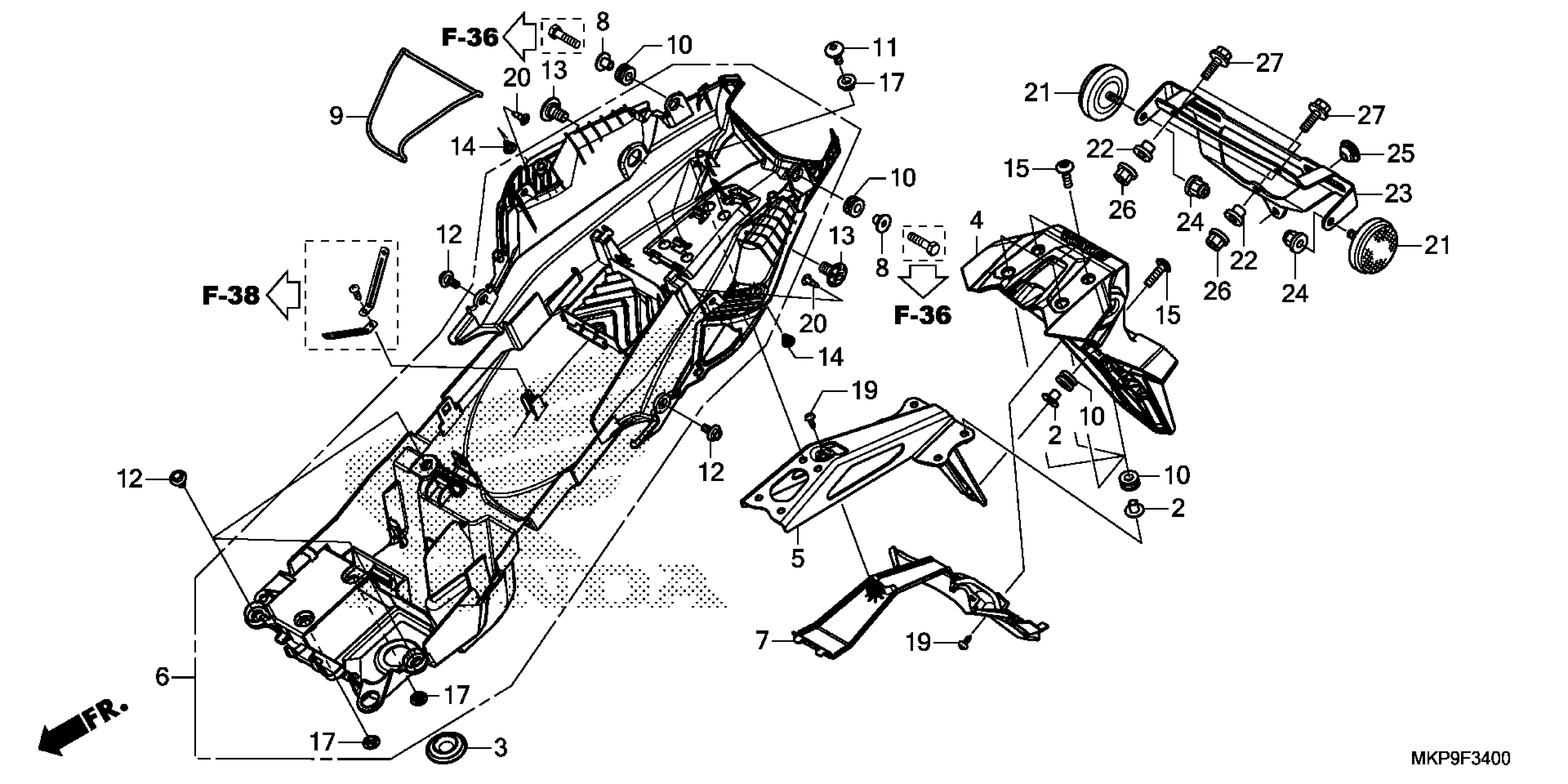

Honda CB500FAAC (23) MOTORCYCLE, THA, VIN# MLHPC635-P5400001 REAR FENDER Diagram

COLLAR A, FR. FENDER

GROMMET, PANEL (INNER)

FENDER SET A, RR. (TYPE1) (WL)

BRACKET, FENDER A

FENDER ASSY. B, RR.

COVER, RR. FENDER

COLLAR, TAILLIGHT

BAND, TOOL

RUBBER, SIDE COVER

BOLT, SPECIAL (6X16)

BOLT, FLANGE (6MM)

BOLT, SPECIAL (10X16)

RIVET, PUSH (6MM)

SCREW, PAN (6X22)

COLLAR, MOUNTING

SCREW, TAPPING (4X12)

CLIP, BUMPER SEAL

REFLECTOR, RR. REFLEX (RED)

COLLAR, FR. WHEEL COVER (FOR RR.)

BRACKET, NUMBER PLATE

NUT, U (6MM) (FUJI SEIMITSU)

PLUG, HOLE

NUT, FLANGE (6MM)

BOLT, FLANGE (6X14)
