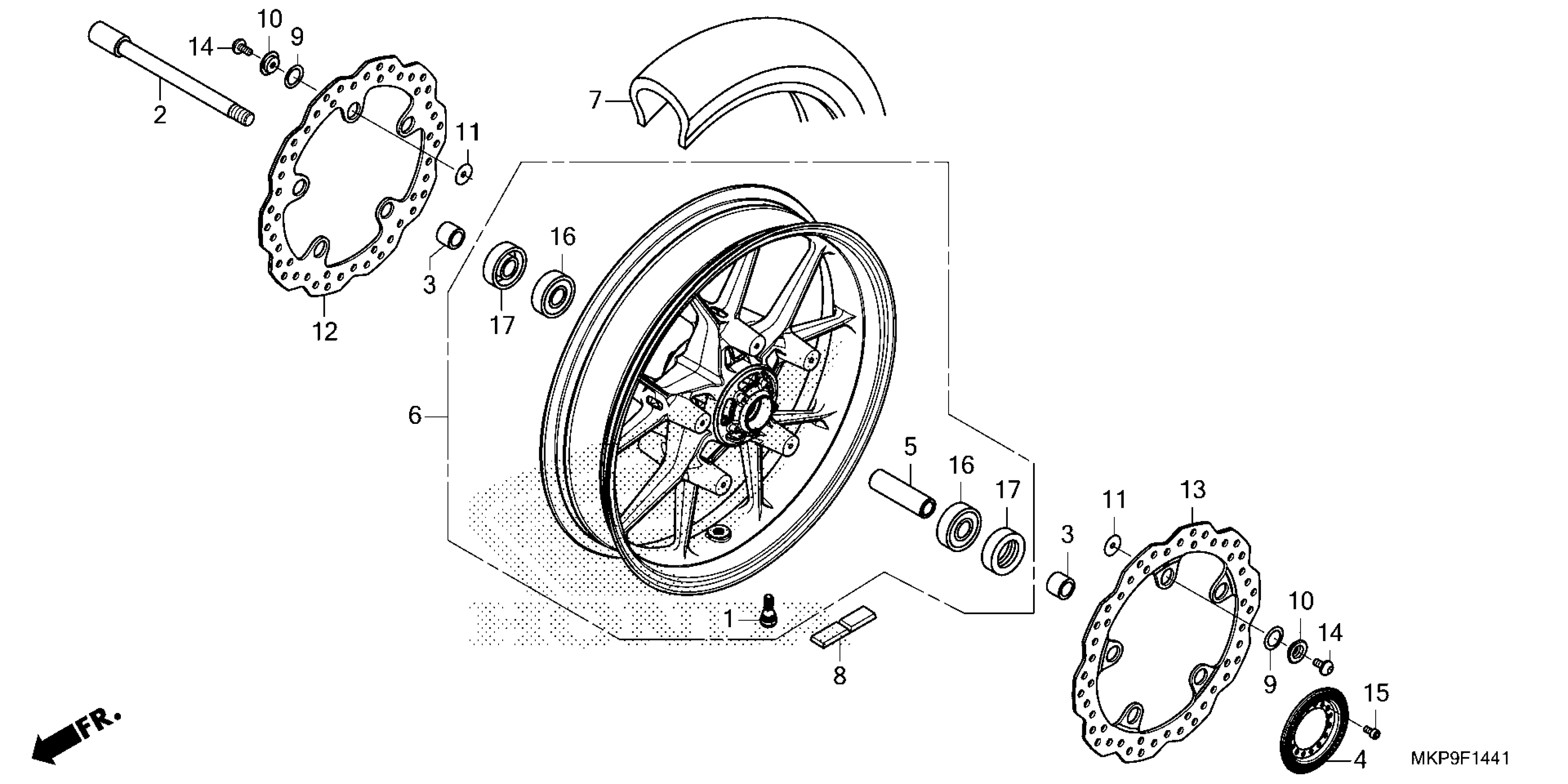

Honda CB500FAAC (23) MOTORCYCLE, THA, VIN# MLHPC635-P5400001 FRONT WHEEL (CB500FA'22/'23) Diagram

VALVE, RIM (IRC)

42753-GM9-743

$8.68

AXLE, FR. WHEEL

44301-MKP-DN0

$24.44

COLR, FR. WHEEL SIDE

44311-MKP-DN0

$8.38

RING, FR. PULSER

44515-MKP-DN0

$38.51

COLLAR, FR. | Use up to Frame SN P5400818.

44620-MKP-DN0

$8.90

COLLAR, FR. | Use from Frame SN P5400819.

44620-MKP-DP0

$9.16

WHEEL SUB-ASSY., FR. | Use up to Frame SN P5400818.

44650-MKP-DP0

$292.64

WHEEL SUB-ASSY., FR. | Use from Frame SN P5400819.

44650-MKP-DP1

$266.84

TIRE, FR. (120/70ZR17) (M/C 58W) (MICHELIN)

44711-MKP-J01

$221.80

TIRE, FR. (120/70ZR17) (M/C 58W) (MICHELIN) This part replaces 44711-MKP-J04.

44711-MKP-J01

$221.80

WEIGHT, BALANCE (10G)

44721-MGH-H21

$3.24

WEIGHT, BALANCE (15G)

44722-MGH-H21

$3.86

WEIGHT, BALANCE (20G)

44723-MGH-H21

$4.18

SPRING, FR. DISK

45223-MGC-003

$6.28

COLLAR, FR. DISK

45225-MKP-DN0

$3.28

WASHER, FR. DISK

45226-MGC-000

$4.90

DISK, R. FR. BRAKE

45251-MKP-DN1

$122.74

DISK, L. FR. BRAKE

45351-MKP-DN1

$122.74

BOLT (6X13)

90105-MKP-DN0

$1.49

BOLT, SOCKET (5X10)

90131-K87-L50

$1.49

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)

91051-KVK-901

$9.60

DUST SEAL (25X40X5)

91252-K35-V01

$2.21
