Description

Price

1

FORK ASSY., R. FR.

51400-MKP-DN1

$523.54

2

SPRING, R. FR. FORK

51401-MKP-DN1

$19.28

4

TUBE (OUTER)

51410-MKN-D51

$230.75

5

RING, BACK-UP (SHOWA)

51412-MB4-003

$8.66

6

SPRING, R. REBOUND

51412-MKY-D51

$2.49

7

BUSH, GUIDE

51414-MFJ-A51

$6.75

8

BUSH, SLIDER

51415-MFJ-A51

$6.75

9

SEAT, STOPPER

51419-K94-T01

$8.42

10

SEAT, R. STOPPER

51419-MKY-D51

$5.84

11

PIPE, R. SLIDE

51425-MKP-DN1

$274.13

12

ROD, PISTON

51426-MKP-DN1

$44.96

14

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.20

15

BOLT, FR. FORK

51450-MKY-D51

$73.33

16

NUT, HEX.

51451-MKY-D51

$12.46

18

CASE, ROD GUIDE

51455-MKY-D51

$39.32

19

RING, STOPPER

51456-K94-T01

$2.03

20

SEAL SET, FR. FORK

51490-MKL-D81

$22.56

21

FORK ASSY., L. FR.

51500-MKP-DN1

$482.35

22

SPRING, L. FR. FORK

51501-MKP-DN1

$27.49

24

SPRING, L. REBOUND

51512-MKY-D51

$4.12

25

PIPE, L. SLIDE

51525-MKP-DN1

$282.29

26

ROD

51526-MKY-D51

$12.65

27

BOLT (8X40)

90106-MKP-DN0

$1.74

28

DUST SEAL

91251-MKL-D81

$9.51

29

O-RING (39.7X2.4)

91258-MEE-D01

$1.93

30

RING, PISTON

51437-MKY-D51

$1.26

31

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.51

32

CIRCLIP (INNER)

51447-MB4-003

$4.33

33

JOINT, SPRING

51404-MKP-DN1

$2.86

34

COLLAR B, SPRING

51511-MKP-DN1

$15.75

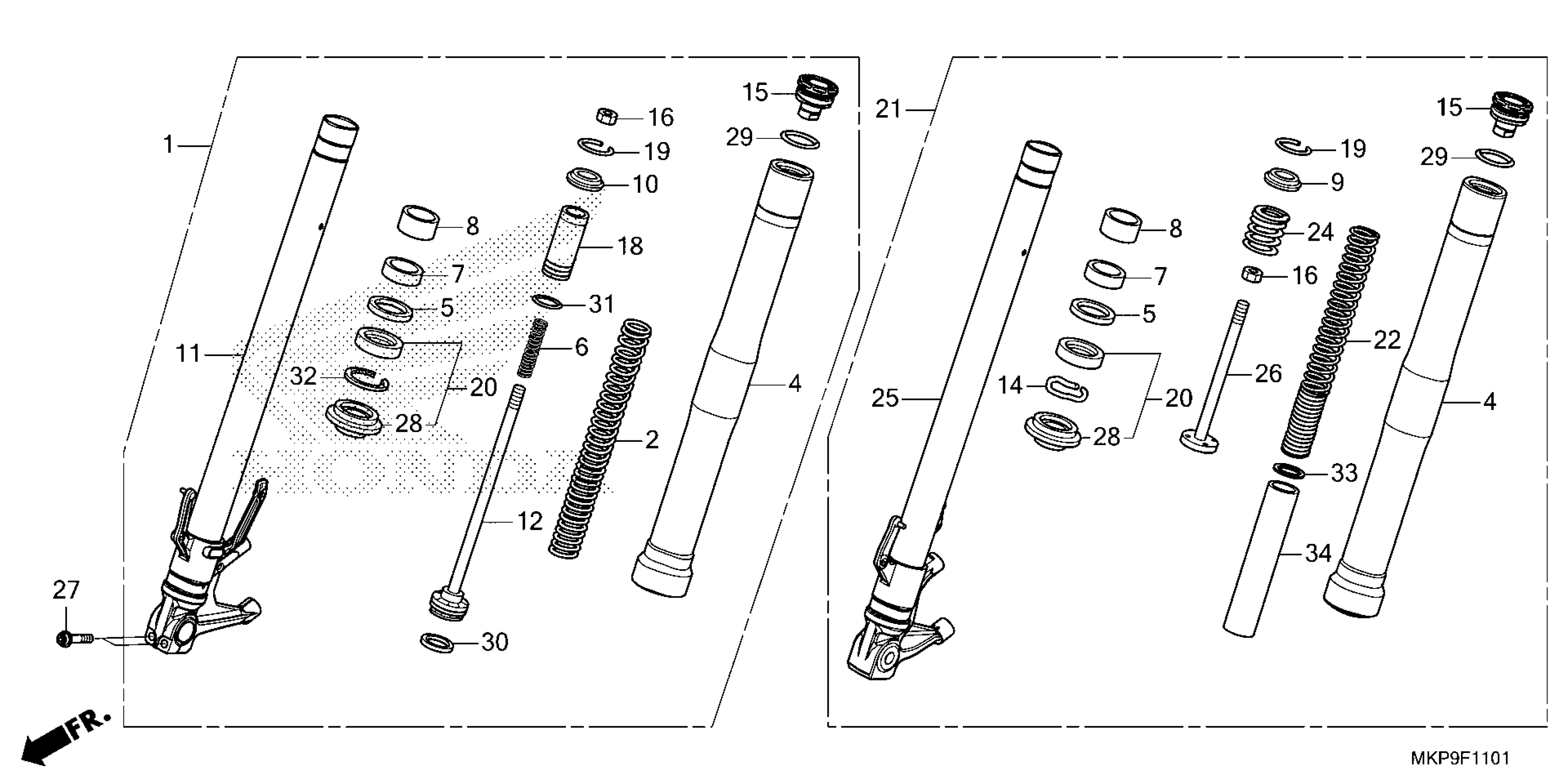

Honda CB500FAAC (23) MOTORCYCLE, THA, VIN# MLHPC635-P5400001 FRONT FORK (CB500FA'22/'23) Diagram
