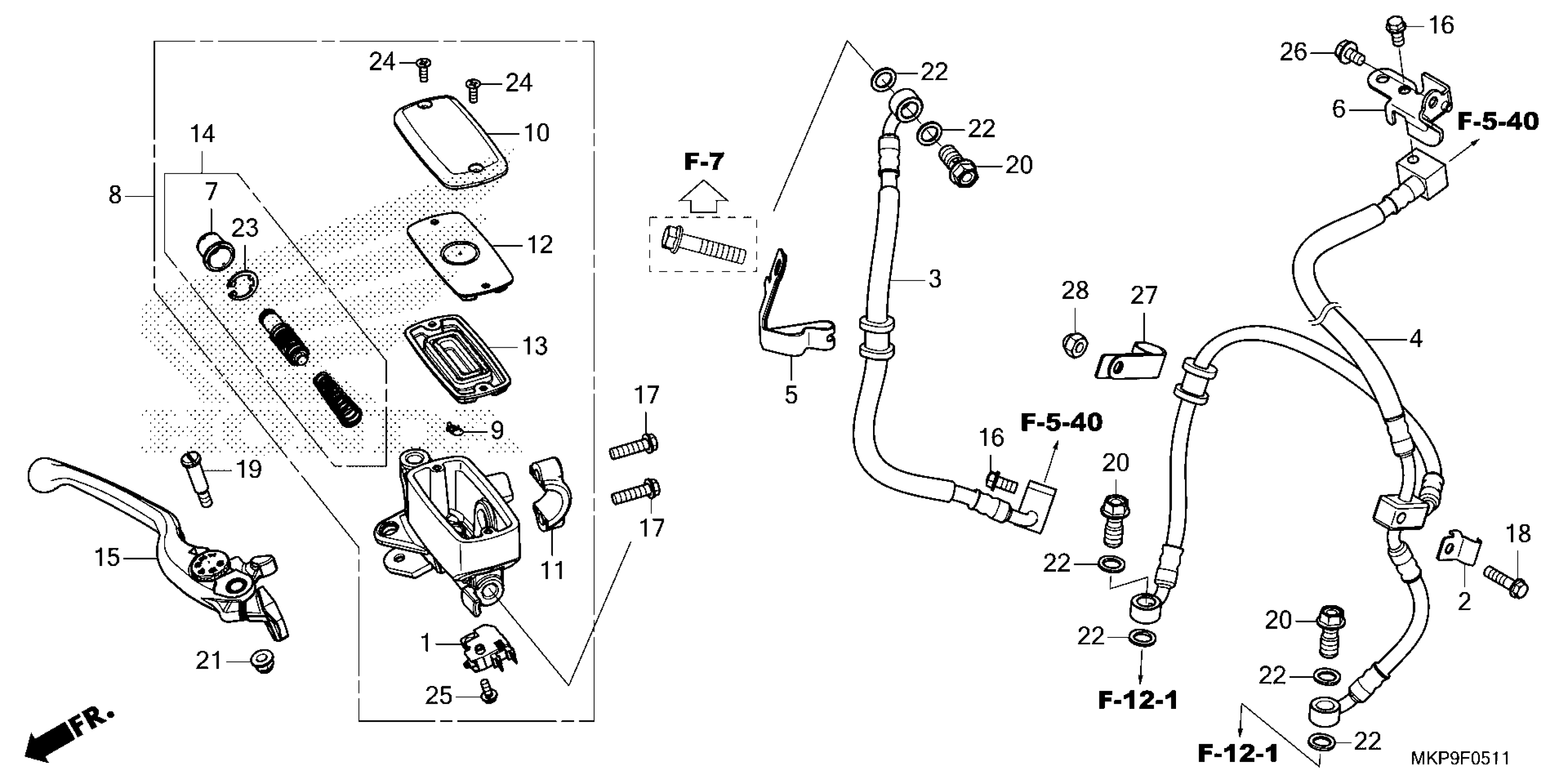

Honda CB500FAAC (23) MOTORCYCLE, THA, VIN# MLHPC635-P5400001 FRONT BRAKE MASTER CYLINDER (CB500FA'22/'23) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

2

CLAMP B, SENSOR WIRE

38514-MKH-D00

$1.85

3

HOSE A, FR. BRAKE

45125-MKP-DP1

$23.98

4

HOSE B, FR. BRAKE

45126-MKP-DN1

$97.33

5

CLAMP C, FR.

45157-MKP-DP0

$4.82

6

STAY, FR. BRAKE HOSE

45160-MKP-DN0

$7.47

7

BOOT

45504-410-003

$12.16

8

MASTER CYLINDER SUB-ASSY., FR. (COO) (NISSIN) This part replaces 45510-MJE-D01.

45510-MJE-305

$109.51

8

MASTER CYLINDER SUB-ASSY., FR. (COO) (NISSIN)

45510-MJE-305

$109.51

9

PROTECTOR

45512-MA6-006

$4.28

10

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

11

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

12

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

13

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

14

MASTER CYLINDER SET

45530-471-831

$40.86

15

LEVER ASSY., R. HANDLE

53170-MKK-D01

$50.87

16

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.33

17

BOLT, FLANGE (6X22)

90013-GHB-660

$2.33

18

BOLT, FLANGE (6X23.5)

90113-MKN-D50

$1.49

19

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

20

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

21

NUT, CAP (6MM)

90202-KCW-870

$2.92

22

WASHER, OIL BOLT

90545-300-000

$3.99

23

CIRCLIP

90651-MA5-671

$2.66

24

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

24

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

25

SCREW-WASHER (4X12)

93893-04012-07

$1.49

25

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

26

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

27

CLAMP, FR. BRAKE HOSE

45132-MKN-D50

$3.74

28

NUT, CAP (6MM)

94021-06070-0S

$1.62
