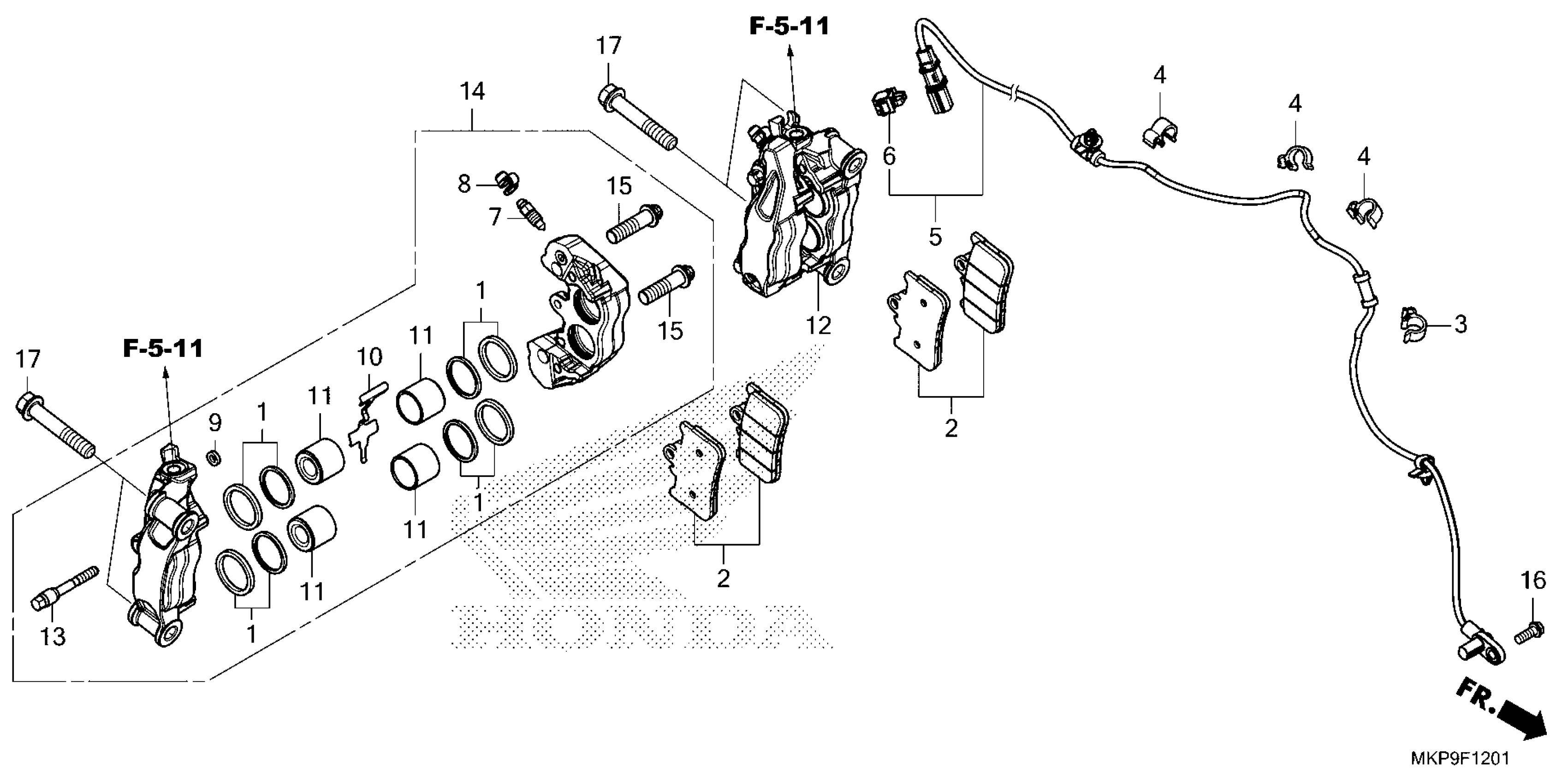

Honda CB500FAAC (23) MOTORCYCLE, THA, VIN# MLHPC635-P5400001 FRONT BRAKE CALIPER (CB500FA'22/'23) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$10.47

PAD SET, FR.

06455-MKP-DN1

$57.17

CLAMP, ABS WIRE (D8.5)

38516-MGE-003

$2.87

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.51

SENSOR, FR.

38520-MKP-DN1

$23.44

CLIP, CONNECTOR (DARK BLUE)

42524-T5A-003

$2.69

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

SEAL, JOINT (NISSIN)

45103-MR7-006

$3.56

SPRING, PAD

45106-MKP-DN1

$9.99

PISTON A

45107-MKP-DN1

$12.78

CALIPER SUB-ASSY.

45150-MKP-DN1

$198.04

PIN, HANGER

45215-MKP-DN1

$5.34

CALIPER SUB-ASSY.

45250-MKP-DN1

$197.79

BOLT, TORX (10X36)

90104-MKP-DN1

$3.10

BOLT, FLANGE (6X16)

90116-MKP-DN0

$0.99

BOLT, FLANGE (10X55)

90131-MKP-DN0

$2.79
