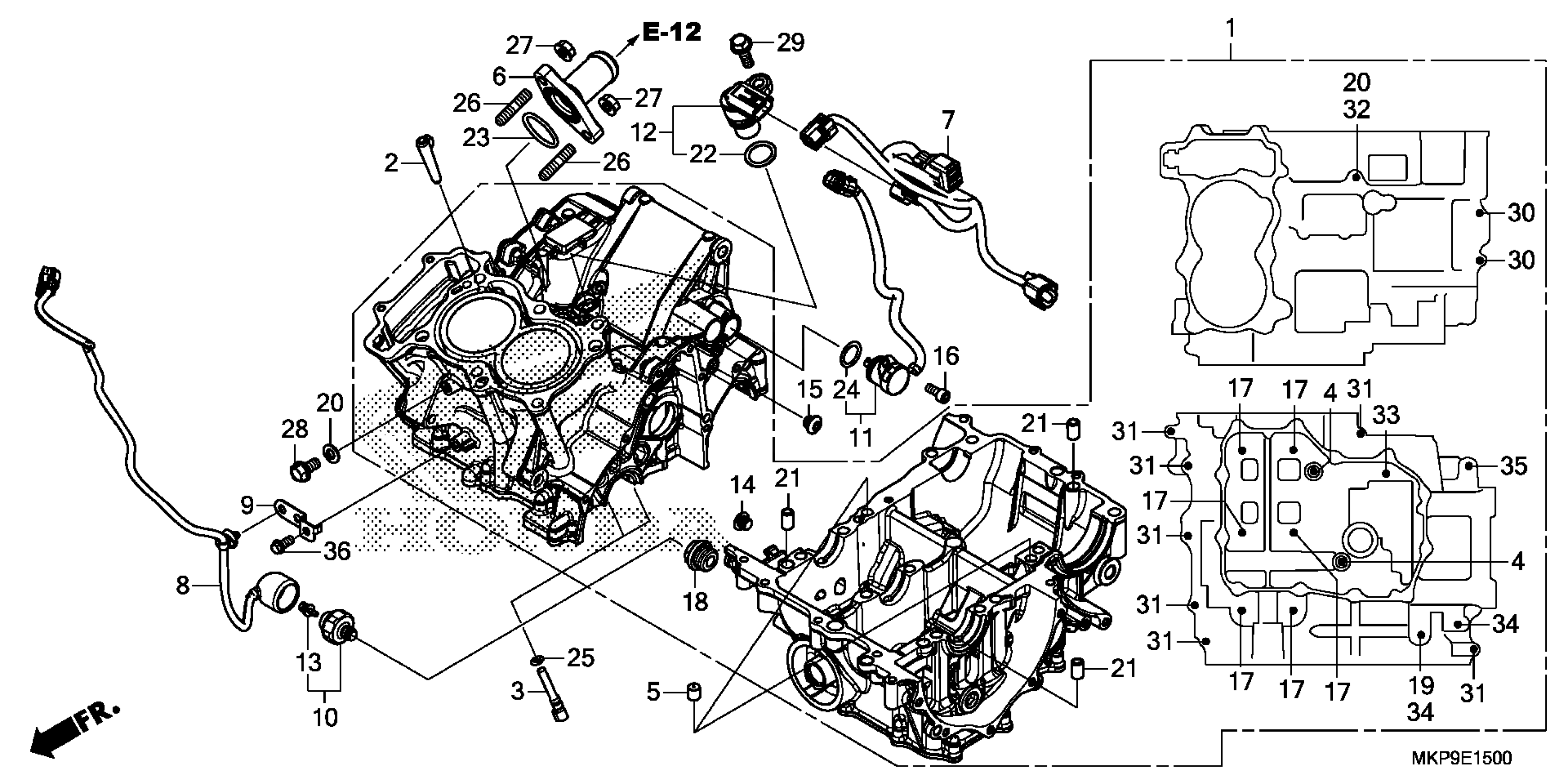

Honda CB500FAAC (23) MOTORCYCLE, THA, VIN# MLHPC635-P5400001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11000-MKP-D00

$1,918.84

2

PIN, PARTITION

11103-MGZ-J00

$4.03

3

JET, OIL

11140-MGZ-J00

$19.10

4

BOLT, SEALING (12MM)

12207-KYJ-900

$1.52

5

ORIFICE A (1.0MM)

15515-MGZ-J00

$1.49

6

JOINT, WATER

19060-MGZ-J00

$23.46

7

SUB-HARNESS, ENGINE

32101-MKP-DN0

$17.21

8

SUB-HARNESS, OIL PRESSURE

32102-MJW-J00

$9.74

9

STAY, HARNESS CLIP

32157-MGZ-J00

$1.49

10

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MEH-661

$48.89

11

SWITCH ASSY., CHANGE

35759-MKP-T02

$88.72

12

SENSOR ASSY., SPEED (TDK-EPC)

37700-MJE-D01

$26.44

13

BOLT-WASHER (4X8) (DENSO)

90002-PA6-003

$5.85

14

BOLT, SOCKET (10MM)

90005-MAZ-000

$2.26

15

BOLT, SOCKET (10MM)

90009-MGZ-J00

$3.93

16

BOLT, SOCKET KNOCK (6MM)

90011-MGP-000

$7.10

17

BOLT, UBS (8X105)

90015-MGZ-J01

$6.63

18

BOLT, SEALING (18MM)

90048-MY5-600

$13.82

19

WASHER, SEALING (8MM)

90442-028-000

$1.77

20

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

21

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.30

22

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

23

O-RING (23X2.4)

91304-MCP-900

$2.89

24

O-RING (16.5X2.5)

91305-KC1-850

$1.86

25

O-RING (3.2X1.1)

91305-MCJ-751

$2.16

26

BOLT, STUD (6X16)

92900-06016-0E

$1.89

27

NUT, FLANGE (6MM)

94050-06000

$1.49

28

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

29

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.62

30

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

31

BOLT, FLANGE (6X40)

95701-06040-08

$1.80

32

BOLT, FLANGE (6X95)

95701-06095-00

$1.92

33

BOLT, FLANGE (8X55)

95701-08055-00

$2.28

34

BOLT, FLANGE (8X75)

95701-08075-00

$2.67

35

BOLT, FLANGE (10X75)

95701-10075-00

$2.44

36

BOLT, FLANGE (6X14)

96001-06014-07

$1.49
