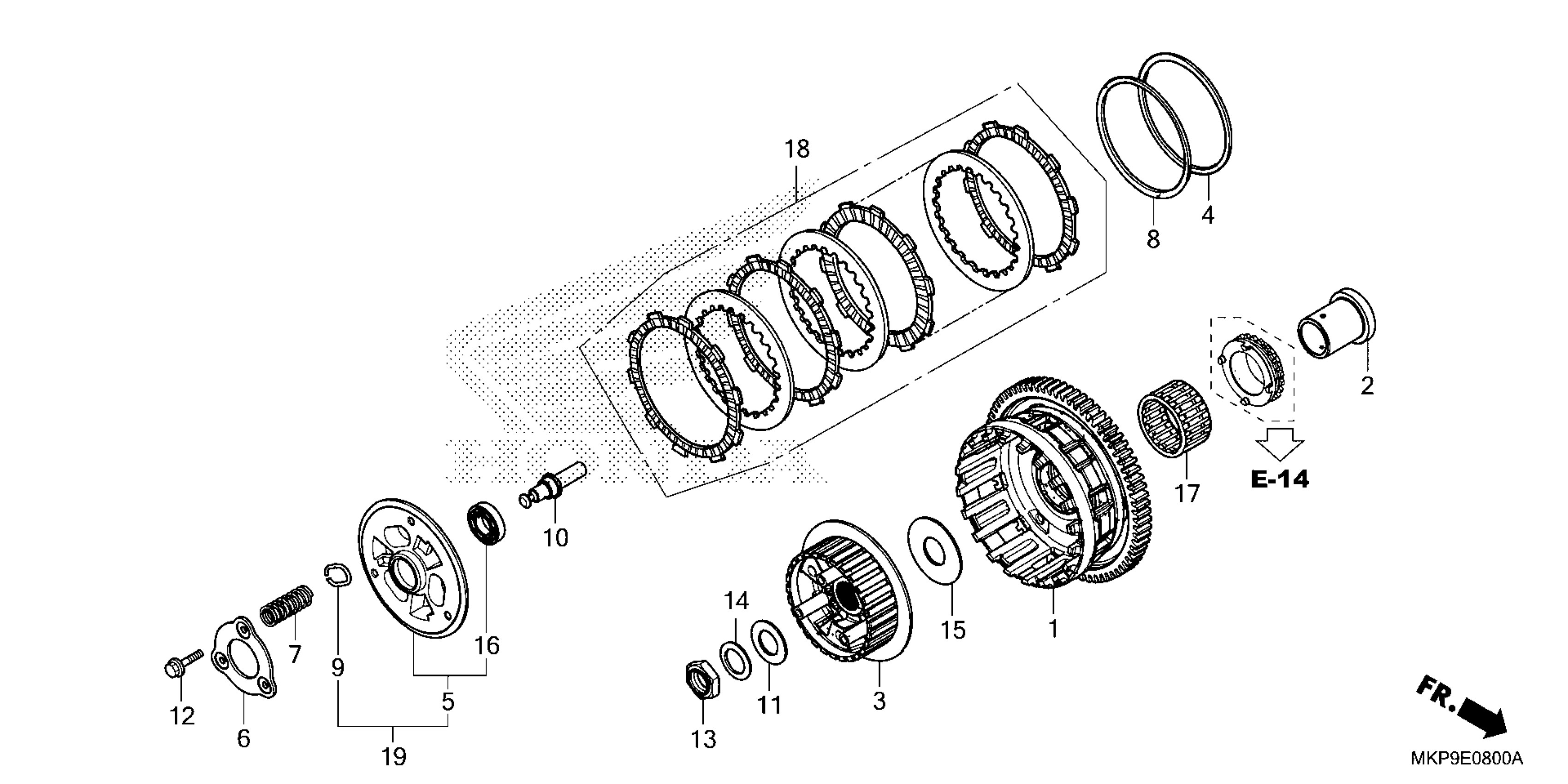

Honda CB500FAAC (23) MOTORCYCLE, THA, VIN# MLHPC635-P5400001 CLUTCH Diagram

Description

Price

CLUTCH OUTER (69T)

22100-MKP-D01

$239.66

GUIDE, CLUTCH (OUTER)

22116-MKP-D00

$8.16

CENTER, CLUTCH

22121-MKN-D11

$40.95

SEAT, JUDDER SPRING

22125-ML7-000

$10.67

PLATE, SETTING

22361-MKN-D11

$2.82

SPRING, CLUTCH

22401-MKP-D01

$2.64

SPRING, JUDDER

22402-MKN-D11

$9.65

SEAT, CLUTCH SPRING

22425-MJP-G51

$11.73

PIN, CLUTCH LIFTER

22847-MKP-D00

$16.10

WASHER, SWINGARM SIDE

52143-KZ3-860

$3.38

BOLT, FLANGE (6X30)

90050-MKN-D11

$1.49

NUT, LOCK (22MM)

90231-MJE-D00

$4.53

WASHER, SPRING (22MM)

90432-MM5-000

$8.52

WASHER, THRUST (25X45X1.6)

90452-MKP-D01

$2.48

BRG (30X35X17)

91111-MKG-L31

$2.64

DISK SET, CLUTCH

22210-MKP-305

$70.49

PLATE, CLU PRESS

22350-MLE-C11

$51.08
