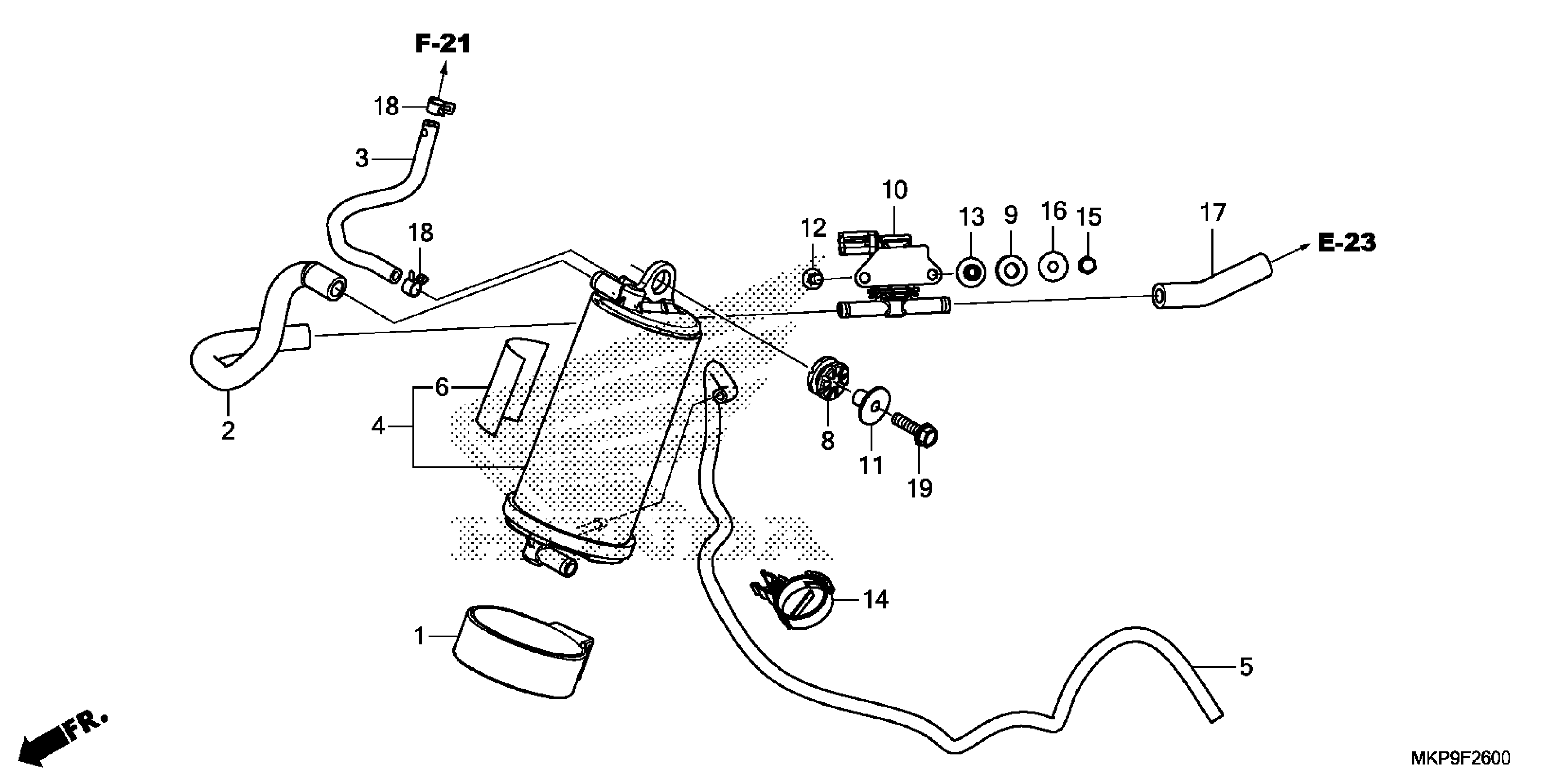

Honda CB500FAAC (23) MOTORCYCLE, THA, VIN# MLHPC635-P5400001 CANISTER Diagram

RUBBER, CANISTER MOUNT

17411-MGZ-A00

$6.74

TUBE (PCV-CANISTER)

17414-MGZ-A00

$10.79

TUBE, CANISTER

17418-MGZ-A00

$18.48

CANISTER

17420-MJW-J01

$95.59

TUBE, CANISTER DRAIN

17423-MKP-J00

$15.23

TAPE B, TANK GUARD

17528-KCZ-930

$3.39

RUBBER, HEADLIGHT

33115-KVK-900

$1.49

RUBBER, PURGE CONTROL SOLENOID

36037-MGZ-A00

$1.66

VALVE, PURGE CONTROL SOLENOID

36162-MKA-D81

$42.20

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

$4.42

BOLT, FLANGE (5X12)

90002-KWB-600

$1.49

COLLAR

90505-MGZ-A00

$1.79

CLIP, WATER HOSE

91558-MKP-J01

$1.70

NUT, CAP (5MM)

94021-05000-0S

$1.49

WASHER, PLAIN (5MM)

94103-05800

$1.49

BULK HOSE, FUEL (7.5X8000) (7.3X350) (BULK HOSE: 95001-75008-40M)

95001-75008-60M

$103.82

CLAMP, TUBE (D8)

95002-40800-08

$2.25

BOLT, FLANGE (6X22)

95701-06022-08

$1.72
