Description

Price

1

CLIP, OIL DRAIN TUBE

15771-KV6-000

Unavailable

2

ELEMENT, AIR CLEANER

17211-MKP-J00

$19.67

3

SEAL, AIR CLEANER

17213-MKP-J00

$2.43

4

SEAL, AIR CLEANER LID

17214-MKP-J00

$2.00

5

SEAL, THROTTLE BODY

17215-MGZ-D00

Unavailable

6

SEAL, AIR CLEANER DUCT

17216-MKP-J00

$2.00

7

FUNNEL, AIR

17225-MKP-J00

$6.38

8

COLLAR, AIR CLEANER MOUNTING

17232-KYJ-900

$0.81

9

CASE SUB-ASSY., AIR CLEANER

17235-MKP-J00

$12.16

10

DUCT, AIR CLEANER

17240-MKP-J00

$3.99

11

LID SUB-ASSY., AIR CLEANER

17245-MKP-J00

$6.00

12

COVER SUB-ASSY., AIR CLEANER

17255-MKP-J00

$10.10

13

TUBE, BREATHER

17265-MGZ-D00

$4.90

14

TUBE A, DRAIN

17366-428-670

$7.75

15

PLUG, BREATHER TUBE

17370-382-870

$3.58

16

CLIP, SUB-TANK HOSE

17724-102-700

$4.18

17

STAY, ENGINE SUB-HARNESS

32150-MGZ-J00

$1.71

18

STAY, HARNESS

32207-MGZ-J00

$0.78

19

SPONGE, RUBBER

80109-KYJ-900

$2.13

20

RUBBER, SIDE COVER

83545-KCJ-690

$1.29

21

WASHER, SPECIAL (6MM)

90538-KSH-900

$0.49

22

CLIP, AIR HOSE (16MM)

90646-657-000

$8.12

23

CLAMP, TUBE (D14.5)

91406-MS8-000

$3.71

24

SCREW, PAN (5MM)

91508-MGP-D00

$3.47

25

SCREW-WASHER (5X16)

93891-05016-08

$1.13

26

SCREW, TAPPING (5X16)

93901-25320

$0.56

27

SCREW, TAPPING (5X20)

93903-25480

$0.90

28

BOLT, FLANGE (6X20)

96001-06020-04

$1.09

29

COLLAR, FAN COVER

19619-ZM7-300

$1.91

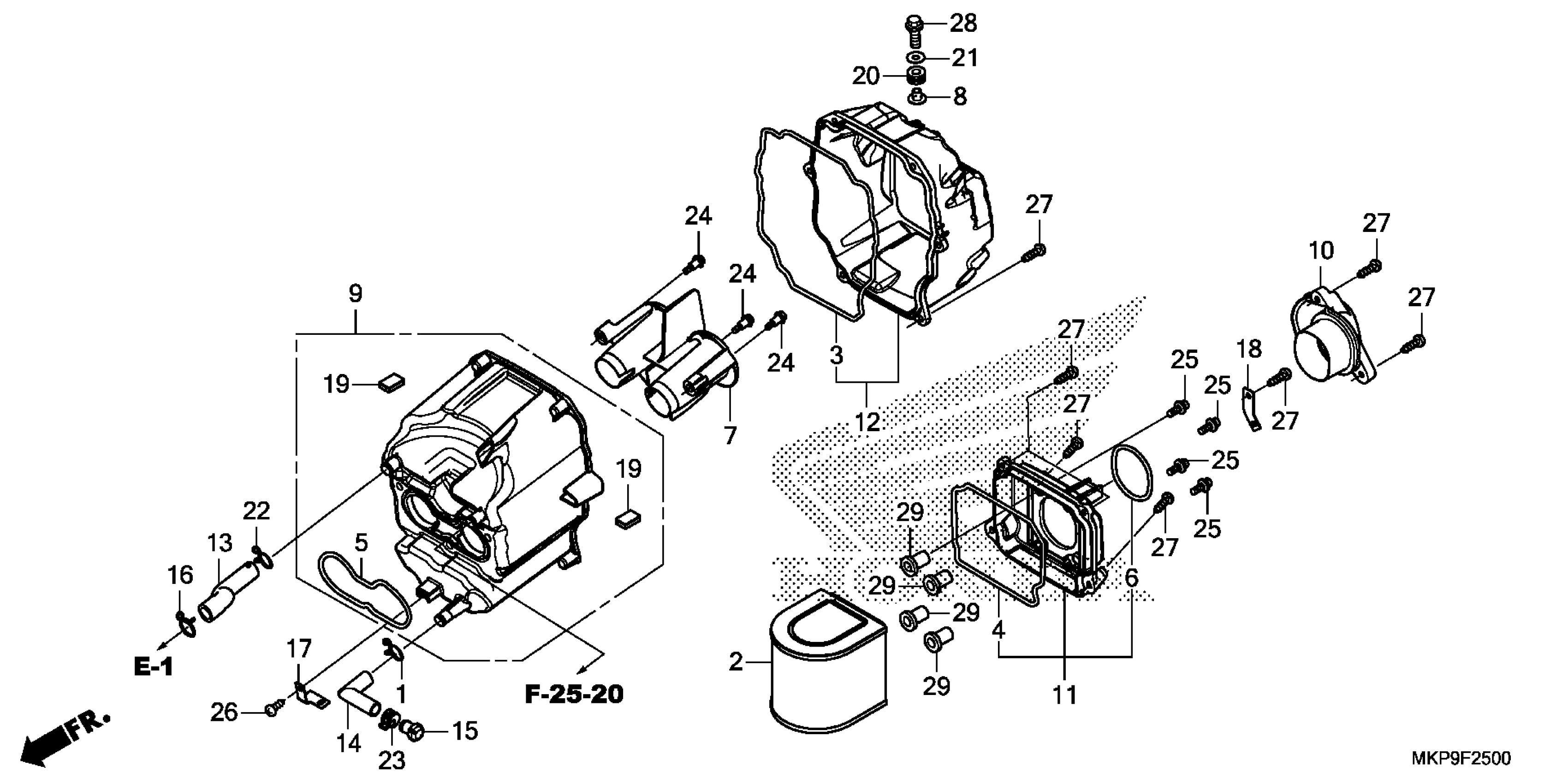

Honda CB500FAAC (23) MOTORCYCLE, THA, VIN# MLHPC635-P5400001 AIR CLEANER Diagram
