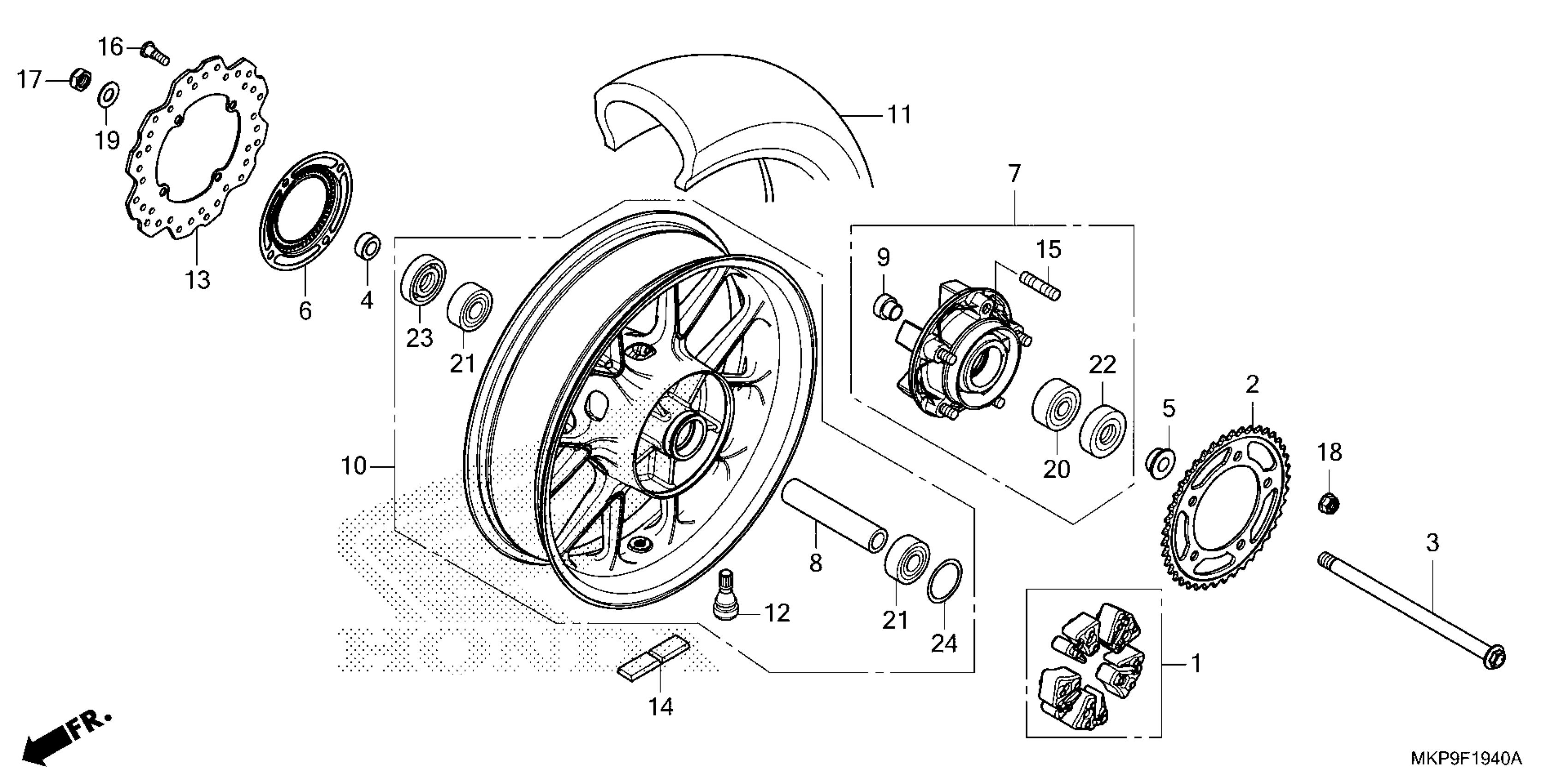

Description

Price

1

DAMPER SET, WHEEL

06410-MGS-D30

$59.16

2

SPROCKET, FINAL DRIVEN (41T)

41201-MKP-J00

$57.44

3

AXLE, RR. WHEEL

42301-MKP-J00

$11.31

4

COLLAR, RR. BRAKE SIDE

42312-MGZ-J00

$13.61

5

COLLAR, L. RR. WHEEL SIDE

42313-MKP-J00

$15.03

6

RING, RR. PULSER

42515-MKN-D50

$49.28

7

FLANGE SUB-ASSY., RR. DRIVEN

42615-MGZ-D00

$150.36

8

COLLAR, RR. AXLE DISTANCE

42620-MGZ-J00

$13.08

9

COLLAR B, RR. AXLE DISTANCE

42625-MGZ-J00

$8.39

10

WHEEL SUB-ASSY., RR.

42650-MKP-J40

$376.44

11

TIRE, RR. (160/60ZR17 M/C 69W) (MICHELIN)

42711-MKP-J01

$256.70

11

TIRE, RR. (160/60ZR17 M/C 69W) (MICHELIN) This part replaces 42711-MKP-J04.

42711-MKP-J01

$256.70

12

VALVE, RIM (IRC)

42753-GM9-743

$8.68

13

DISK, RR. BRAKE (SUNSTAR)

43251-MGZ-J02

$86.37

14

WEIGHT, BALANCE (10G)

44721-MGH-H21

$3.24

14

WEIGHT, BALANCE (15G)

44722-MGH-H21

$3.86

14

WEIGHT, BALANCE (20G)

44723-MGH-H21

$4.18

15

BOLT 2, STUD (12X25)

90102-MAS-000

$4.01

16

BOLT, DISK (8X25)

90105-MGS-D30

$2.92

17

NUT, U (16MM)

90305-GW2-711

$16.36

18

NUT, U (12MM) (FUJI SEIMITSU)

90306-KGH-901

$2.64

19

WASHER, PLAIN (16.4X32X2)

90501-K87-A00

$1.54

20

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$32.14

21

BEARING, RADIAL BALL (6303UU) (NSK)

91054-MT6-831

$38.32

22

DUST SEAL (30X52X7)

91253-442-003

$13.96

23

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$12.13

23

DUST SEAL (30X47X8) (NOK)
