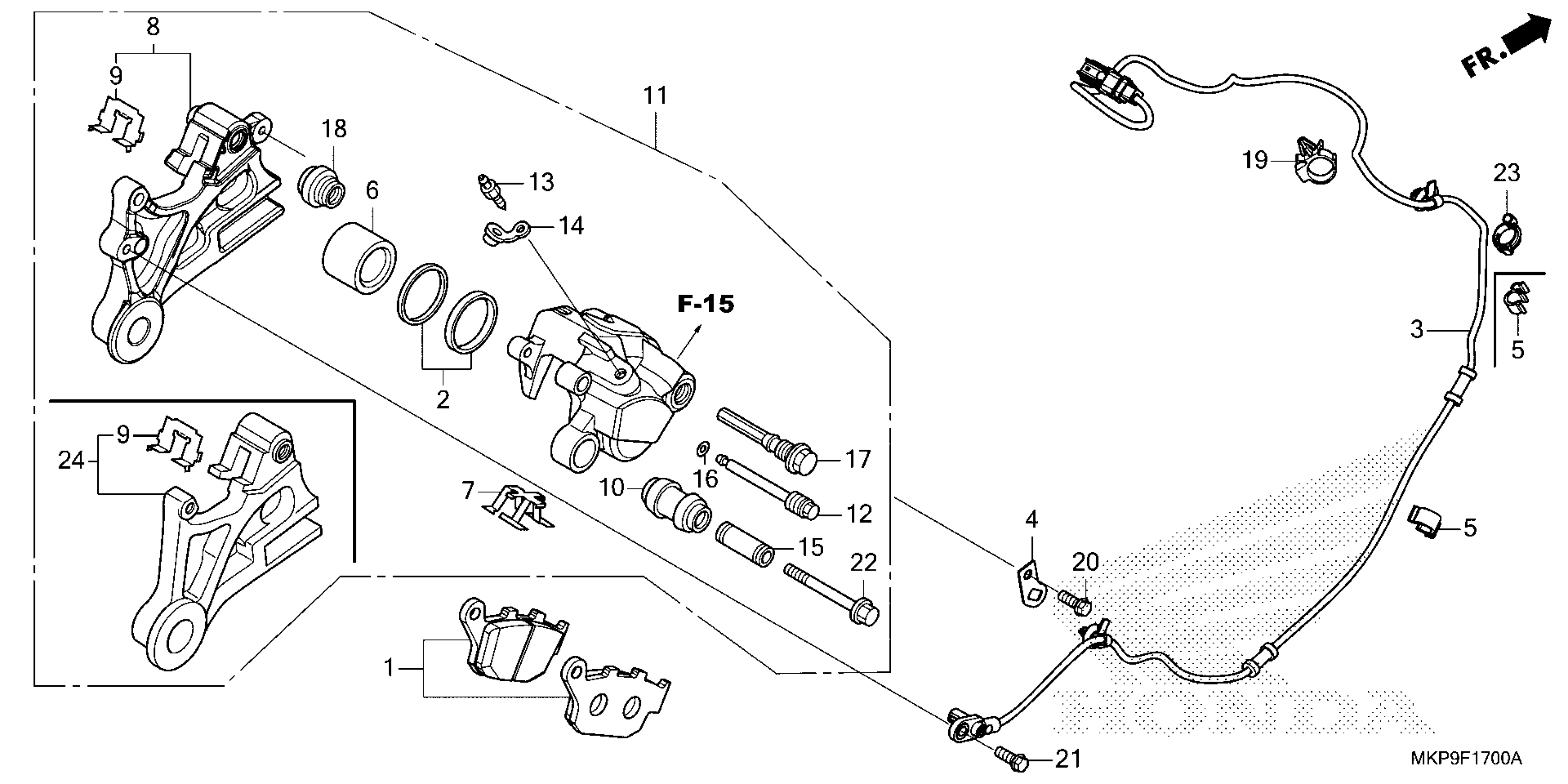

Honda CB500FAAC (21) MOTORCYCLE, THA, VIN# MLHPC635-M5200001 TO MLHPC635-M5299999 REAR BRAKE CALIPER Diagram

Description

Price

PAD SET, RR.

06435-MGZ-J02

$31.30

SEAL SET, PISTON

06451-443-405

$13.23

SENSOR, RR. WHEEL SPEED

38510-MKP-J01

$34.15

STAY, CLIP

38515-MKP-J00

$1.84

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.72

PISTON

43107-KT7-761

$37.87

SPRING, PAD

43108-MBB-006

$6.19

BRACKET, RR. BRAKE

43110-MJW-J11

$54.49

RETAINER

43112-KT7-761

$9.43

BOOT, SLEEVE

43132-KT7-761

$8.52

CALIPER SUB-ASSY., RR. (NISSIN) (MSDS)

43150-MJW-J11

$158.25

PIN, HANGER

43215-KZ4-J41

$5.25

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SLEEVE

45111-MA3-006

$13.38

RING, STOPPER

45111-MAJ-G41

$3.80

BOLT, PIN

45131-MN9-006

$15.97

BOOT B

45133-MA3-006

$5.46

CLIP, RETURN HOSE

53781-SE0-952

$7.57

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.33

BOLT, FLANGE (6X16)

90116-MKA-D80

$2.15

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07

CLIP, CABLE (14MM)

90690-MCA-003

$1.77
