Description

Price

1

COVER, COMBINATION SWITCH

35106-MAT-A00

$9.65

2

SEAL, IGNITION SWITCH

30433-MBW-602

$2.62

3

LOCK SET This part replaces 35010-MJW-A03.

35010-MJW-A04

$214.81

3

LOCK SET

35010-MJW-A04

$214.81

4

SWITCH ASSY., COMBINATION & LOCK

35100-MJW-A02

$151.24

5

BASE, CONTACT

35101-MJW-D11

$40.60

8

EMBLEM, KEY | (Optional).

35113-MJE-D00

$20.09

9

KEY, BLANK | (Optional).

35121-MJE-A02

$20.18

10

HANDLEBAR

53100-MKP-J40

$72.76

11

WEIGHT, HANDLEBAR

53104-MJE-DF0

Unavailable

12

WEIGHT B, HANDLEBAR

53105-MJE-DF0

$6.54

13

RUBBER, HANDLE WEIGHT (B)

53107-MY1-000

$6.69

14

RING, HANDLE WEIGHT SNAP

53108-KR3-770

$5.95

15

HOLDER, HANDLE (UPPER) NH303M (MAT AXIS GRAY METALLIC)

53131-MKP-J40ZA

$27.74

16

HOLDER, HANDLEBAR (LOWER) NH303M (MAT AXIS GRAY METALLIC)

53132-K94-T00ZB

$24.74

17

SCREW-WASHER (5X25)

53192-MFL-000

$1.71

18

CAP, STEERING NUT

53232-MJW-J00

$23.00

19

RUBBER, HANDLE CUSHION

53136-K94-T00

Unavailable

20

BRIDGE, FORK TOP

53300-MKP-J40

$90.87

21

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.80

22

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.46

23

BOLT, FLANGE (8X40)

90108-KZZ-900

$0.68

24

SCREW, OVAL (6X40)

90191-MJE-D40

$0.96

25

NUT, STEERING STEM

90304-KGA-900

$2.91

26

WASHER, STEERING STEM

90503-KGA-900

$1.38

27

NUT, U (8MM)

90304-KPG-901

$0.90

28

SCREW, TAPPING (3X16)

91059-KY2-711

$2.83

29

HOLDER, BRACKET (RED)

91554-SM4-003

$7.75

30

WASHER, HANDLE HOLDER (LOWER)

90535-K26-900

$2.40

31

CAP, SOCKET BOLT

91456-371-770

$3.31

32

BOLT, SOCKET (8X28)

96600-08028-08

$1.18

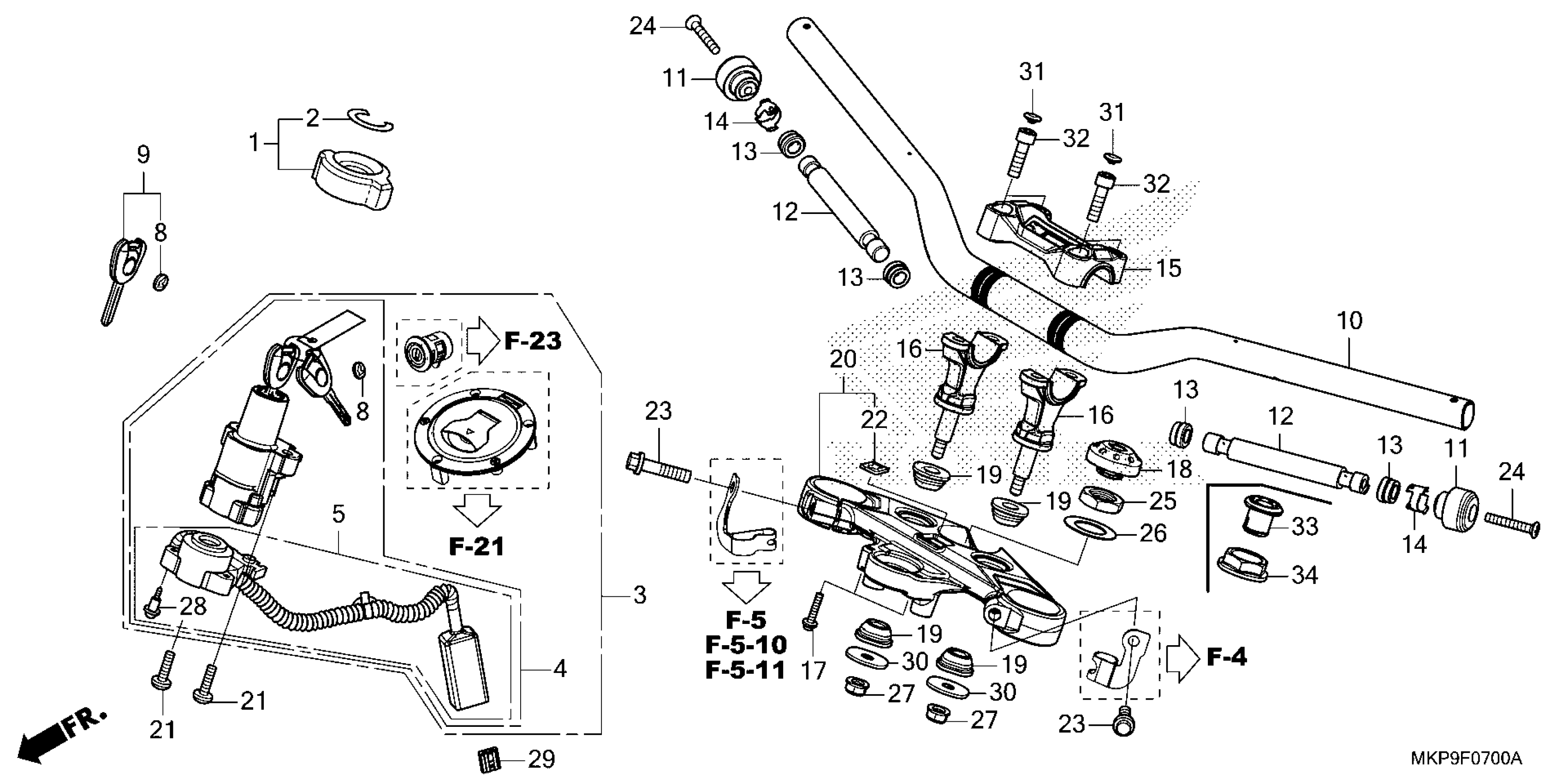

Honda CB500FAAC (21) MOTORCYCLE, THA, VIN# MLHPC635-M5200001 TO MLHPC635-M5299999 HANDLEBAR@TOP BRIDGE Diagram
