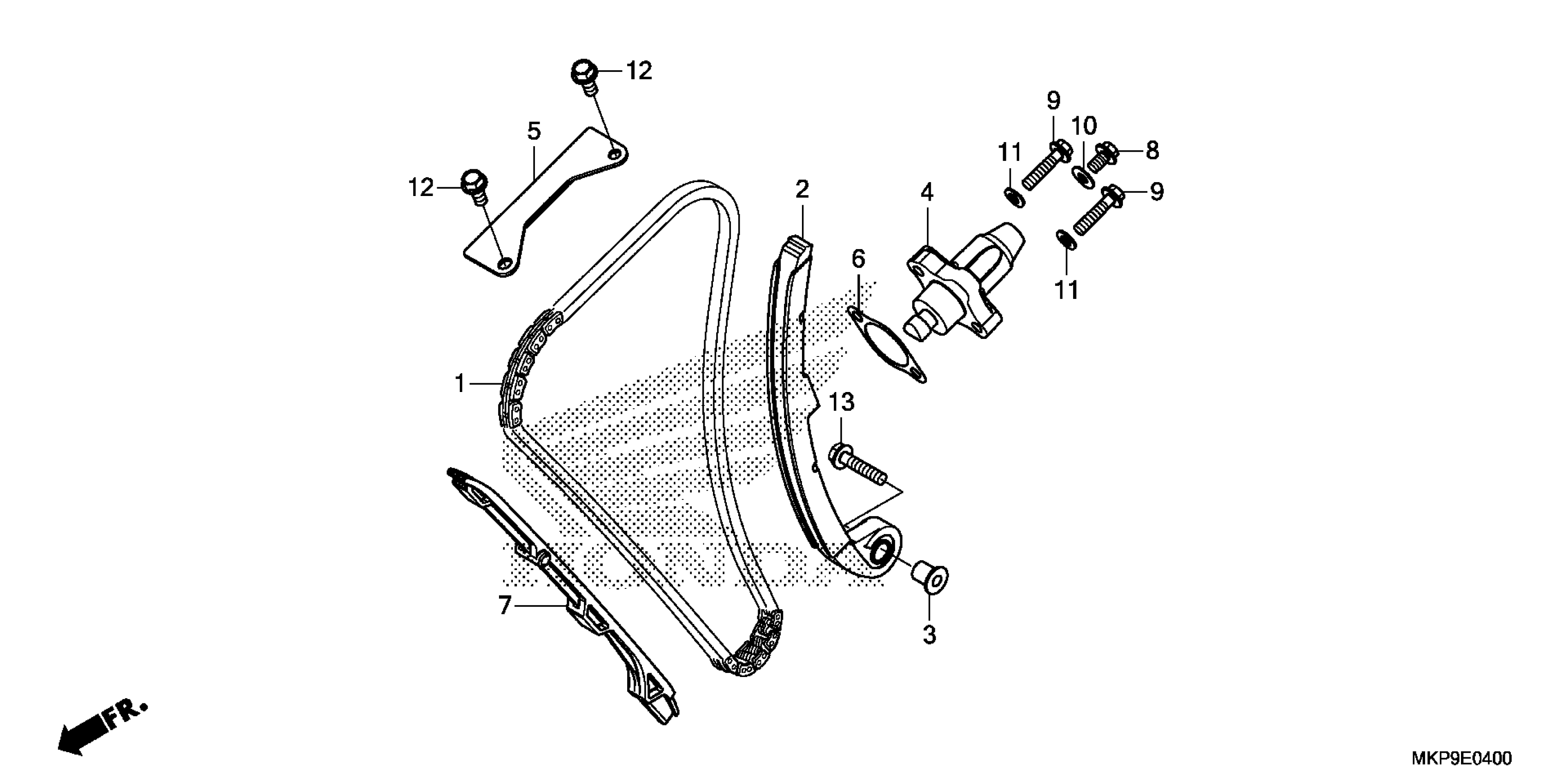

Honda CB500FAAC (21) MOTORCYCLE, THA, VIN# MLHPC635-M5200001 TO MLHPC635-M5299999 CAM CHAIN@TENSIONER Diagram

#

Description

Price

1

CHAIN, CAM (130L) (SCH-0409 SV) (DAIDO)

14401-MGZ-J01

$89.97

2

TENSIONER, CAM CHAIN (NOK)

14510-MGZ-J01

$71.89

3

COLLAR, TENSIONER

14517-MGZ-J00

$1.49

4

LIFTER ASSY., TENSIONER (NHK)

14520-MGZ-J01

$110.05

5

GUIDE B, CAM CHAIN

14546-KYJ-900

$7.70

6

GASKET, TENSIONER HOLE

14560-MGZ-J01

$4.74

7

GUIDE A, CAM CHAIN

14611-MGZ-J00

$10.95

8

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$3.10

9

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.89

10

WASHER, SEALING (6MM)

90442-397-000

$2.28

11

WASHER, SEALING (6MM)

90463-MEE-000

$1.77

12

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

13

BOLT, FLANGE (6X28)

95801-06028-00

$1.73
