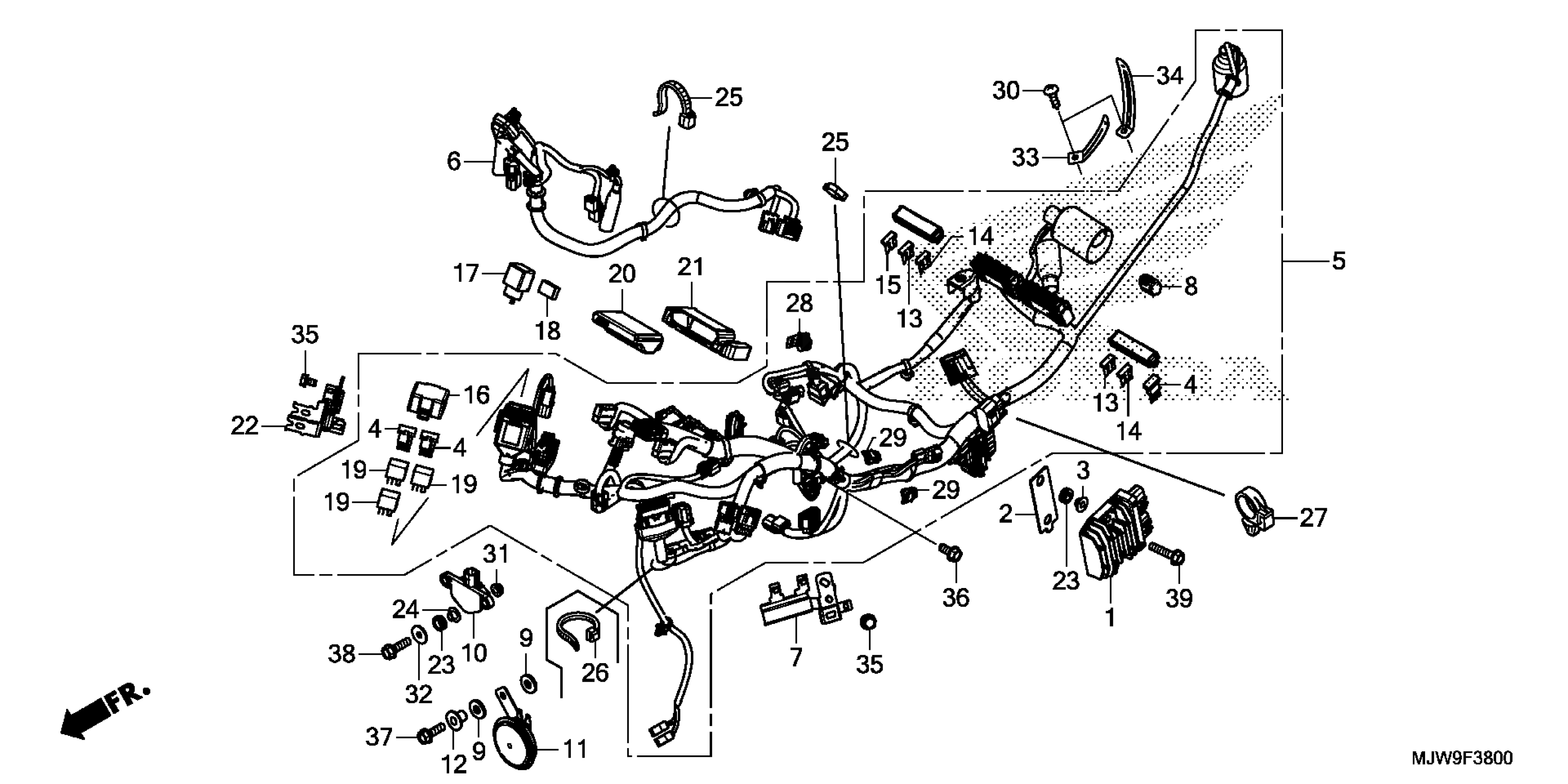

Honda CB500FAAC (18) MOTORCYCLE, THA, VIN# MLHPC450-J5500001 WIRE HARNESS Diagram

RECTIFIER ASSY., REGULATOR

31600-MGZ-J01

$172.04

PLATE, REGULATE RECTIFIER

31605-MJW-J00

$1.46

COLLAR, REGULATOR RECTIFIER

31607-MJW-J00

$1.41

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

WIRE HARNESS

32100-MJW-A50

$988.91

SUB-HARNESS, FR.

32103-MJW-J40

$60.93

STAY, CONNECTOR

32206-MGZ-J00

$7.22

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.18

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.32

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$138.63

HORN (HIGH)

38110-KPP-T01

$32.35

COLLAR, HORN SETTING

38117-KFE-701

$0.71

FUSE, BLADE (7.5A)

38221-SNA-A31

$2.96

FUSE, BLADE (15A)

38221-SNA-A51

$3.44

FUSE, BLADE (30A)

38221-SNA-A81

$2.24

COVER, RELAY BOX

38281-MGZ-J01

$13.51

RELAY, TURN SIGNAL (MITSUBA)

38301-MJE-D02

$46.06

SUSPENSION, TURN SIGNAL RELAY

38306-MGZ-K00

$4.96

RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003.

38501-MKP-DN1

Unavailable

PGM-FI UNIT

38770-MJW-AS1

$307.75

CUSHION, PGM-FI UNIT

38774-MGZ-J00

$3.85

STAY, RELAY BOX

50194-MJW-J00

$8.57

RUBBER, SIDE COVER

64535-MFJ-D00

$1.79

COLLAR, BANK ANGLE SENSOR

90129-MGZ-J00

$2.12

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.97

CLAMP, HARNESS

90652-HC4-003

$5.68

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

SCREW, TAPPING (4X12)

93903-24380

Unavailable

NUT, FLANGE (6MM)

94050-06080

$0.60

WASHER, PLAIN (6MM)

94103-06800

$0.72

CLIP, CABLE (4X60)

94591-46000

$2.75

CLIP (4X90)

94591-49000

Unavailable

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.16

BOLT, FLANGE (6X14)

95701-06014-08

$1.50

BOLT, FLANGE (6X20)

95701-06020-07

$1.50

BOLT, FLANGE (6X22)

95701-06022-08

$1.66

BOLT, FLANGE (6X28)

95701-06028-08

$2.62
