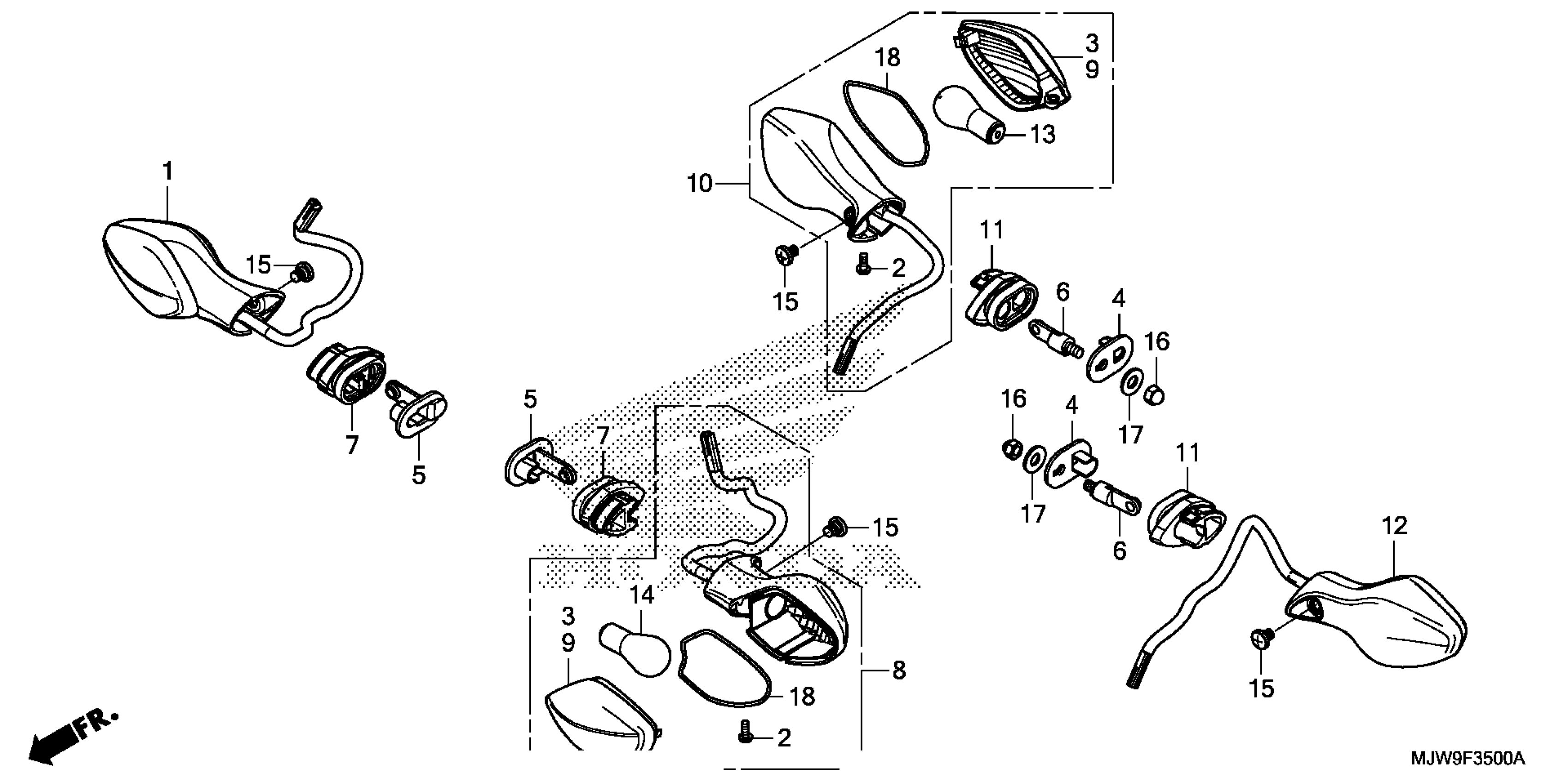

Honda CB500FAAC (18) MOTORCYCLE, THA, VIN# MLHPC450-J5500001 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL R, FR. This part replaces 33400-MGZ-326.

33400-MGZ-336

$15.29

2

SCREW, SPECIAL (4X10)

33402-MGS-D31

$1.01

3

LENS, R. TURN SIGNAL (R. FR./L. RR.)

33404-MGS-J32

$2.82

4

PLATE, TURN SIGNAL (FR.)

33411-MGZ-J00

$1.29

5

STAY, TURN SIGNAL (RR.)

33412-MGS-D30

$7.36

6

STAY, TURN SIGNAL (FR.)

33412-MGZ-J00

$15.88

7

RUBBER, TURN SIGNAL MOUNTING

33413-MGZ-J40

$6.01

8

TURN SIGNAL L, FR. This part replaces 33450-MGZ-326.

33450-MGZ-336

$56.35

9

LENS, L. TURN SIGNAL (L. FR./R. RR.)

33454-MGS-J32

$2.82

10

LIGHT ASSY., RR. This part replaces 33600-MJW-J01.

33600-MJW-J02

$14.89

10

LIGHT ASSY., RR.

33600-MJW-J02

$14.89

11

RUBBER, TURN SIGNAL MOUNTING

33613-MGZ-J00

$6.86

12

LIGHT ASSY., RR. This part replaces 33650-MJW-J01.

33650-MJW-J02

$15.90

12

LIGHT ASSY., RR.

33650-MJW-J02

$15.90

13

BULB, TURN SIGNAL LIGHT (P21W) (RR.) (FOR RR.)

34904-MGZ-J01

$15.88

14

BULB, TAILLIGHT (P21/5W) (LIFE ELEX) (FR. WINKER)

34906-MGZ-J01

$6.40

15

SCREW, SPECIAL (6X8)

90380-MGZ-J00

Unavailable

16

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$2.07

16

NUT, CAP (6MM)

94021-06020

$2.07

16

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$2.07

16

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$2.07

17

WASHER, PLAIN (6MM)

94101-06700

$0.87

18

SEAL, GASKET

33405-MKA-D81

$0.50
