Description

Price

1

TUBE, VENT

33113-MJW-J80

$1.49

2

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.80

3

TAILLIGHT UNIT

33701-MJW-A81

$255.64

4

COLLAR, TAILLIGHT

33705-MGZ-J00

$1.56

5

SUSPENSION, TAILLIGHT

33706-MFN-D00

$1.49

6

LIGHT ASSY., LICENSE (12V 5W)

33720-MJW-A01

$38.57

7

COVER, LICENSE (COO) This part replaces 33722-KWN-901.

33722-K26-305

$10.56

7

COVER, LICENSE (COO)

33722-K26-305

$10.56

8

RUBBER, LICENSE LIGHT

33728-KPP-T00

$4.41

9

GASKET, LENS

33729-MCZ-003

$9.48

10

COLLAR, REGULATOR MOUNTING

33731-MJ0-940

$2.39

11

REFLECTOR, REFLEX

33741-KPL-902

$7.58

12

BRACKET, LICENSE LIGHT

80201-KYJ-920

$8.76

13

RUBBER, SIDE COVER

83545-KCJ-690

$1.49

14

NUT, U (5MM)

90301-KWN-901

$1.49

15

NUT, U (5MM)

90302-KVB-T01

$1.85

16

NUT, CLIP (5MM)

90677-KAN-T00

$1.49

17

BOLT, HEX. (5X20) (USE ONLY WITH ORIGINAL OIL PUMP ASSY. P/N 15100-437-672.)

92101-05020-0A

$1.49

18

SCREW, TAPPING (4X16)

93901-24480

$1.49

19

SCREW, TAPPING (4X12)

93903-24380

$1.49

20

SCREW, TAPPING (4X16)

93903-24420

$1.49

21

WASHER, PLAIN (4MM)

94103-04000

$1.49

22

CLIP (4X90)

94591-49000

$3.01

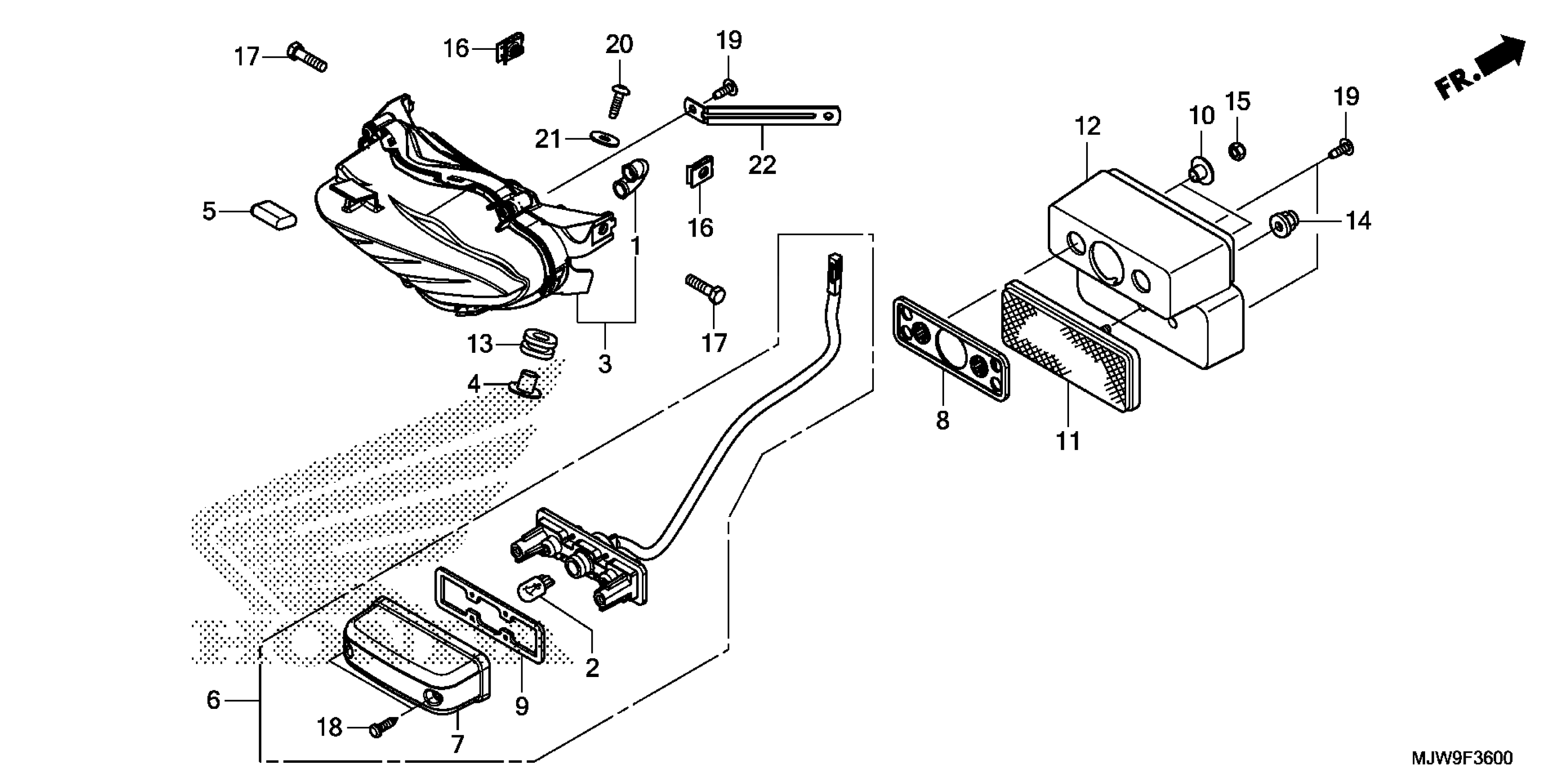

Honda CB500FAAC (18) MOTORCYCLE, THA, VIN# MLHPC450-J5500001 TAILLIGHT Diagram

TUBE, VENT

BULB (12V 5W) (STANLEY)

TAILLIGHT UNIT

COLLAR, TAILLIGHT

SUSPENSION, TAILLIGHT

LIGHT ASSY., LICENSE (12V 5W)

COVER, LICENSE (COO) This part replaces 33722-KWN-901.

COVER, LICENSE (COO)

RUBBER, LICENSE LIGHT

GASKET, LENS

COLLAR, REGULATOR MOUNTING

REFLECTOR, REFLEX

BRACKET, LICENSE LIGHT

RUBBER, SIDE COVER

NUT, U (5MM)

NUT, U (5MM)

NUT, CLIP (5MM)

BOLT, HEX. (5X20) (USE ONLY WITH ORIGINAL OIL PUMP ASSY. P/N 15100-437-672.)

SCREW, TAPPING (4X16)

SCREW, TAPPING (4X12)

SCREW, TAPPING (4X16)

WASHER, PLAIN (4MM)

CLIP (4X90)
