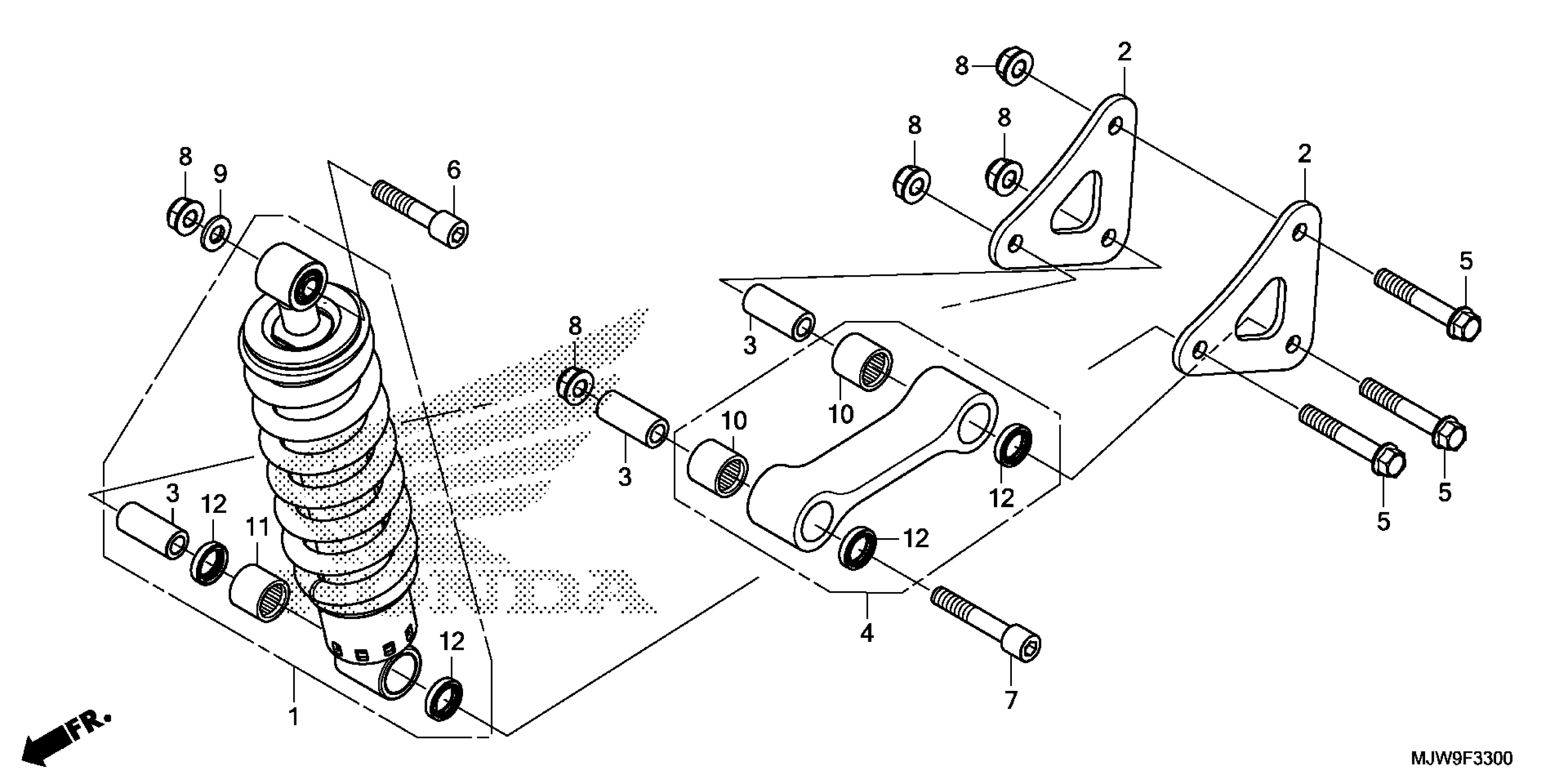

Honda CB500FAAC (18) MOTORCYCLE, THA, VIN# MLHPC450-J5500001 REAR SHOCK ABSORBER Diagram

CUSHION ASSY., RR. (COO) (SHOWA)

52400-MJW-305

$275.94

PLATE, CUSHION ARM

52461-MGZ-J00

$7.32

COLLAR, CUSHION CONNECTING ROD

52463-MGZ-J00

$4.78

ROD SUB-ASSY., CUSHION CONNECTING

52475-MGZ-J00

$82.38

BOLT, FLANGE (10X62)

90121-MGZ-J00

$1.68

BOLT, SOCKET (10X48)

90122-MGZ-J00

$4.16

BOLT, SOCKET (10X58)

90123-MGZ-J00

$4.60

NUT, U (10MM)

90304-KGH-901

Unavailable

WASHER (10MM)

90465-MM9-000

$3.38

BEARING, NEEDLE (17X24X30)

91052-MGS-D31

$9.00

BEARING, NEEDLE (KOYO)

91071-KV3-005

$22.84

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.91
