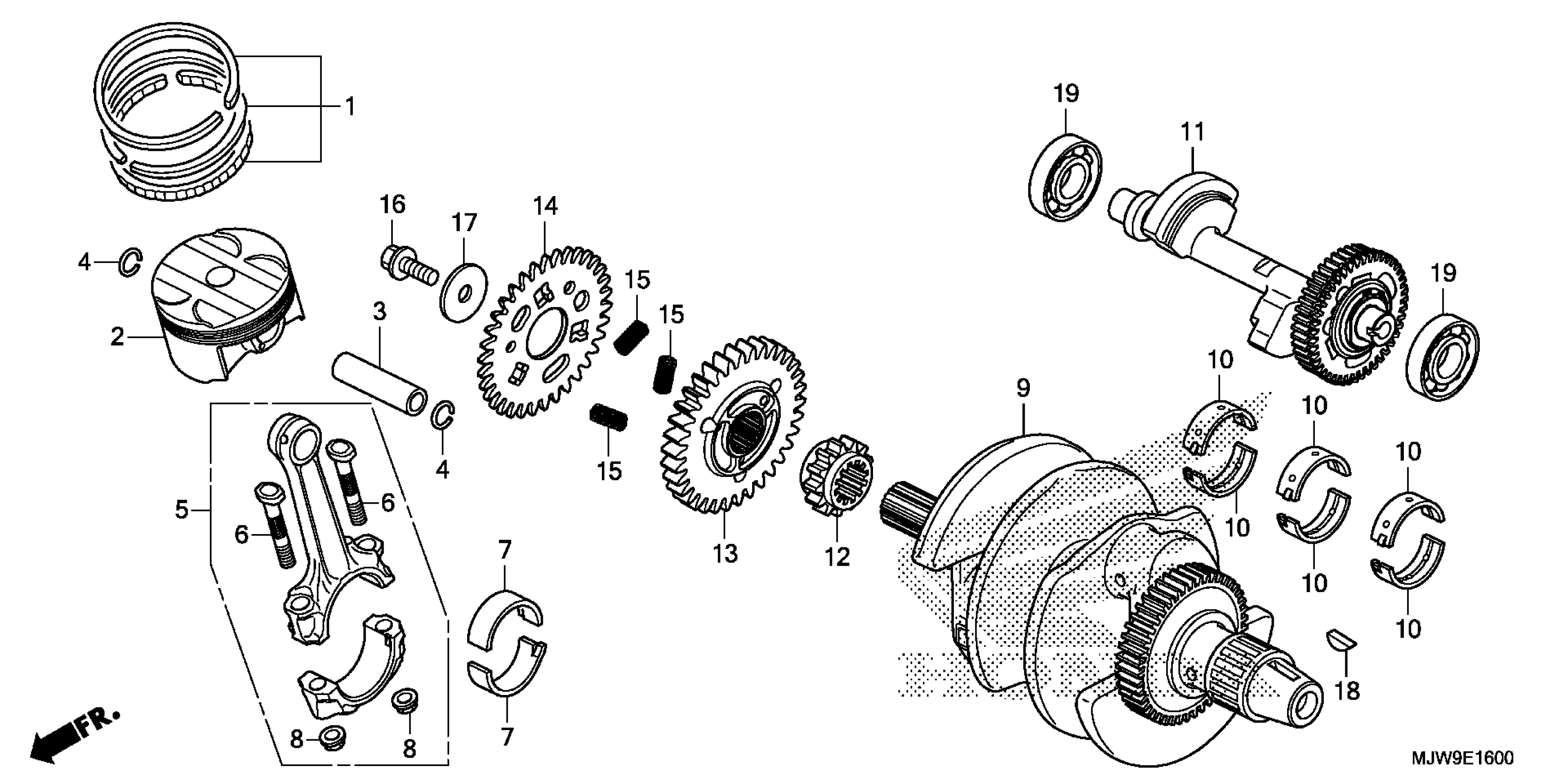

Honda CB500FAAC (18) MOTORCYCLE, THA, VIN# MLHPC450-J5500001 CRANKSHAFT@PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD)

13011-MEE-305

$43.75

1

RING SET, PISTON (0.25) | (Optional).

13021-MEE-305

$46.41

2

PISTON (STD)

13101-MGZ-D00

$55.95

2

PISTON (0.25) | (Optional).

13102-MGZ-305

Unavailable

3

PIN, PISTON

13111-MFG-D00

$19.80

4

CLIP, PISTON PIN (16MM)

13115-MGZ-J00

$1.49

5

ROD ASSY., CONNECTING

13210-MGZ-D00

$109.20

6

BOLT, CONNECTING ROD

13213-ML7-020

$8.00

7

BEARING A, CONNECTING ROD (BLUE)

13214-MGZ-J01

$24.48

7

BEARING B, CONNECTING ROD (BLACK)

13215-MGZ-J01

$24.48

7

BEARING C, CONNECTING ROD (BROWN)

13216-MGZ-J01

$24.48

7

BEARING D, CONNECTING ROD (GREEN)

13217-MGZ-J01

$24.48

7

BEARING E, CONNECTING ROD (YELLOW)

13218-MGZ-J01

$24.48

8

NUT, CONNECTING ROD

13215-ML7-000

$3.89

9

CRANKSHAFT

13300-MGZ-D01

$782.21

10

BEARING A, CRANKSHAFT (BLACK)

13313-MW0-003

$13.19

10

BEARING B, CRANKSHAFT (BROWN)

13314-MW0-003

$13.19

10

BEARING C, CRANKSHAFT (GREEN)

13315-MW0-003

$13.19

10

BEARING D, CRANKSHAFT (YELLOW)

13316-MW0-003

$13.19

10

BEARING E, CRANKSHAFT (PINK)

13317-MW0-003

$13.19

11

SHAFT, BALANCER (40T)

13420-MGZ-D01

$295.44

12

SPROCKET, TIMING (17T)

14311-MGZ-J00

$11.52

13

GEAR, PRIMARY DRIVE (34T)

23113-MGZ-J00

$69.33

14

SUB-GEAR, PRIMARY (34T)

23114-MGZ-J00

$66.97

15

SPRING, PRIMARY DRIVE GEAR

23115-MV1-300

$2.18

16

BOLT, SPECIAL (10X25)

90013-MGZ-J00

$1.49

17

WASHER (10.5X40)

90405-MGZ-J00

$6.08

18

KEY, WOODRUFF (25X18)

90742-KYJ-900

$2.34

19

BEARING, SPECIAL RADIAL BALL (6204)

91001-MGZ-J00

$43.08
