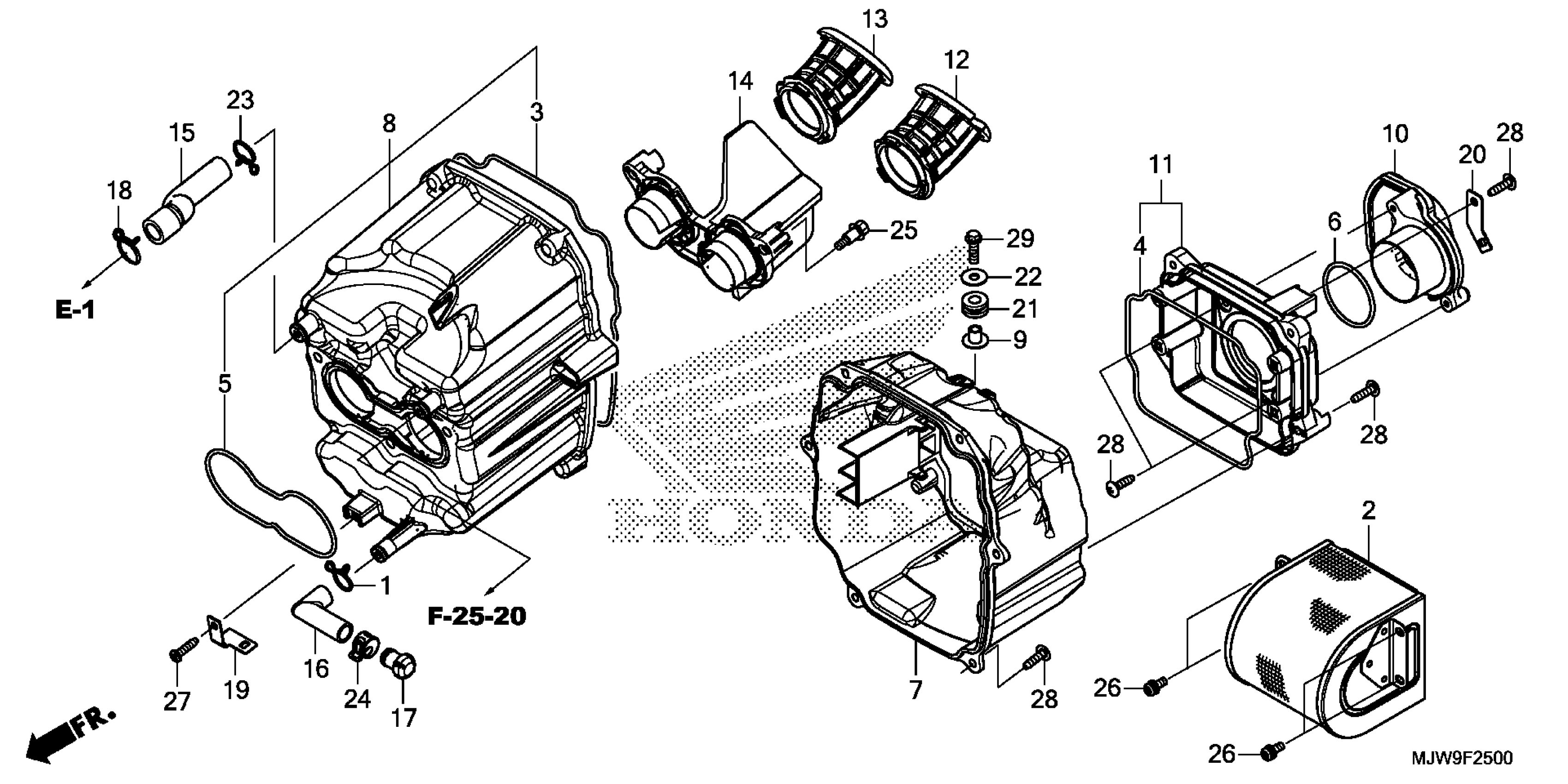

Honda CB500FAAC (16) CB500FA, THA, VIN# MLHPC450-G5300001 TO MLHPC450-G5399999 AIR CLEANER Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.72

2

ELEMENT, AIR CLEANER

17211-MJW-J00

$20.43

3

SEAL, AIR CLEANER

17213-MGZ-D00

$3.11

4

SEAL, AIR CLEANER LID

17214-MGZ-D00

$1.85

5

SEAL, THROTTLE BODY

17215-MGZ-D00

$1.84

6

SEAL, AIR CLEANER DUCT

17216-MGZ-D00

$1.82

7

COVER, AIR CLEANER

17220-MGZ-D00

$16.54

8

CASE SUB-ASSY., AIR CLEANER

17225-MGZ-D00

$32.31

9

COLLAR, AIR CLEANER MOUNTING

17232-KYJ-900

$1.49

10

DUCT, AIR CLEANER

17240-MJW-J00

$5.85

11

LID SUB-ASSY., AIR CLEANER

17245-MGZ-D01

$10.31

12

FUNNEL, L. AIR

17251-MGZ-A00

$12.75

13

FUNNEL, R. AIR

17252-MGZ-A00

$12.75

14

FUNNEL, AIR

17253-MGZ-D00

$8.77

15

TUBE, BREATHER

17265-MGZ-D00

$5.46

16

TUBE A, DRAIN

17366-428-670

$8.39

17

PLUG, BREATHER TUBE

17370-382-870

$3.74

18

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

19

STAY, ENGINE SUB-HARNESS

32150-MGZ-J00

$1.90

20

STAY, HARNESS

32207-MGZ-J00

$1.49

21

RUBBER, SIDE COVER

83545-KCJ-690

$1.49

22

WASHER, SPECIAL (6MM)

90538-KSH-900

$1.49

23

CLIP, AIR HOSE (16MM)

90646-657-000

$7.32

24

CLAMP, TUBE (D14.5)

91406-MS8-000

$3.89

25

SCREW, PAN (5MM)

91508-MGP-D00

$3.75

26

SCREW-WASHER (5X12)

93893-05012-08

$1.49

27

SCREW, TAPPING (5X16)

93901-25320

$1.49

28

SCREW, TAPPING (5X20)

93903-25480

$1.49

29

BOLT, FLANGE (6X20)

96001-06020-04

$1.49
