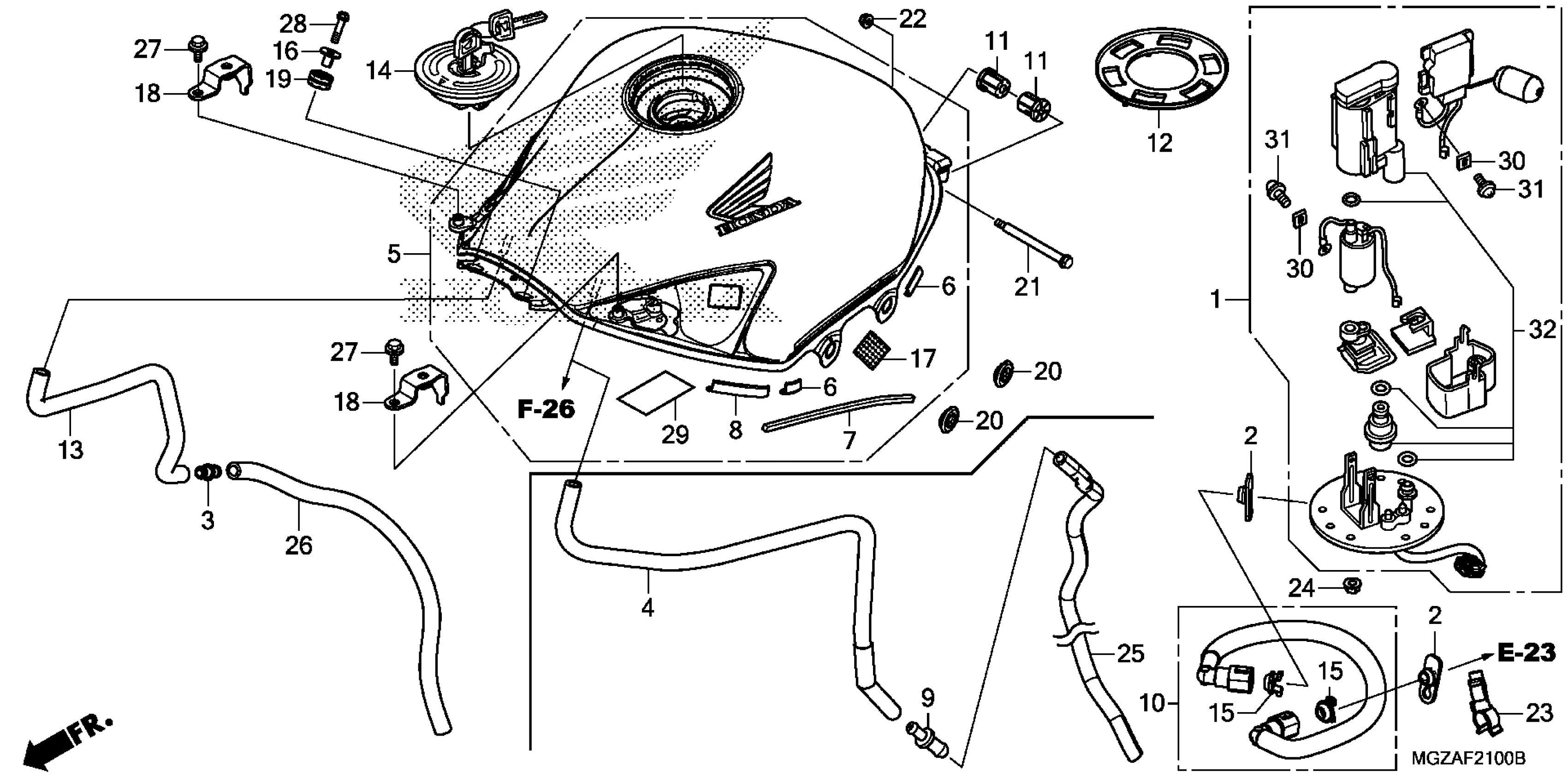

Honda CB500FAAC (14) MOTORCYCLE, THA, VIN# MLHPC450-E5100001 TO MLHPC450-E5199999 FUEL TANK@FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY., FUEL This part replaces 16700-MGZ-J01.

16700-MGZ-J04

$657.41

1

PUMP ASSY., FUEL This part replaces 16700-MGZ-J02.

16700-MGZ-J04

$657.41

1

PUMP ASSY., FUEL This part replaces 16700-MGZ-J03.

16700-MGZ-J04

$657.41

1

PUMP ASSY., FUEL

16700-MGZ-J04

$657.41

2

DAMPER, CONNECTOR

16719-MEW-920

$2.80

3

JOINT, BREATHER TUBE

17359-419-670

$1.90

5

TANK ASSY., FUEL (TYPE1) (WL)

17500-MGZ-J41ZC

$767.37

6

RUBBER, FUEL TANK

17501-MGZ-J00

$6.28

7

RUBBER, TANK BODY

17502-MGZ-J40

$3.68

8

SEAL, TANK

17521-KY1-300

$2.13

10

HOSE, FUEL FEED

17570-MGZ-J01

$56.66

11

CUSHION, RR. FUEL TANK PIVOT

17572-KPP-T00

$2.13

12

GASKET, BASE

17574-MGS-D30

$22.44

13

TUBE, FUEL TANK DRAIN

17590-MGZ-J00

$7.99

14

CAP, FUEL FILLER This part replaces 17620-MCB-611.

17620-MCB-612

$115.03

14

CAP, FUEL FILLER

17620-MCB-612

$115.03

15

RETAINER

17711-MGE-003

$6.05

16

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$3.83

17

FASTENER B, DUAL LOCK (20X20)

64243-MEW-920

$2.83

18

STAY, COWL (INNER)

64431-MGZ-J41

$1.19

19

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.13

20

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

21

BOLT, TANK HINGE

90135-MS2-000

$5.95

22

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.28

23

CLAMP, FUEL HOSE (BLACK)

91593-MGZ-J01

$2.09

24

NUT, FLANGE (6MM)

94050-06000

$0.60

26

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$27.67

27

BOLT, FLANGE (6X12)

96001-06012-00

$1.66

28

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

Unavailable

29

TAPE B, TANK GUARD

17528-KCZ-930

$3.44

30

STOPPER

16711-MGS-D31

$4.47

31

SCREW (4X6.6)

16712-MGS-D31

$1.74

32

FILTER ASSY., FUEL This part replaces 16730-MGS-D31.

16730-MKT-D01

$38.84

32

FILTER ASSY., FUEL This part replaces 16730-MKA-D82.

16730-MKT-D01

$38.84

32

FILTER ASSY., FUEL This part replaces 16730-MKA-D83.

16730-MKT-D01

$38.84

32

FILTER ASSY., FUEL

16730-MKT-D01

$38.84
