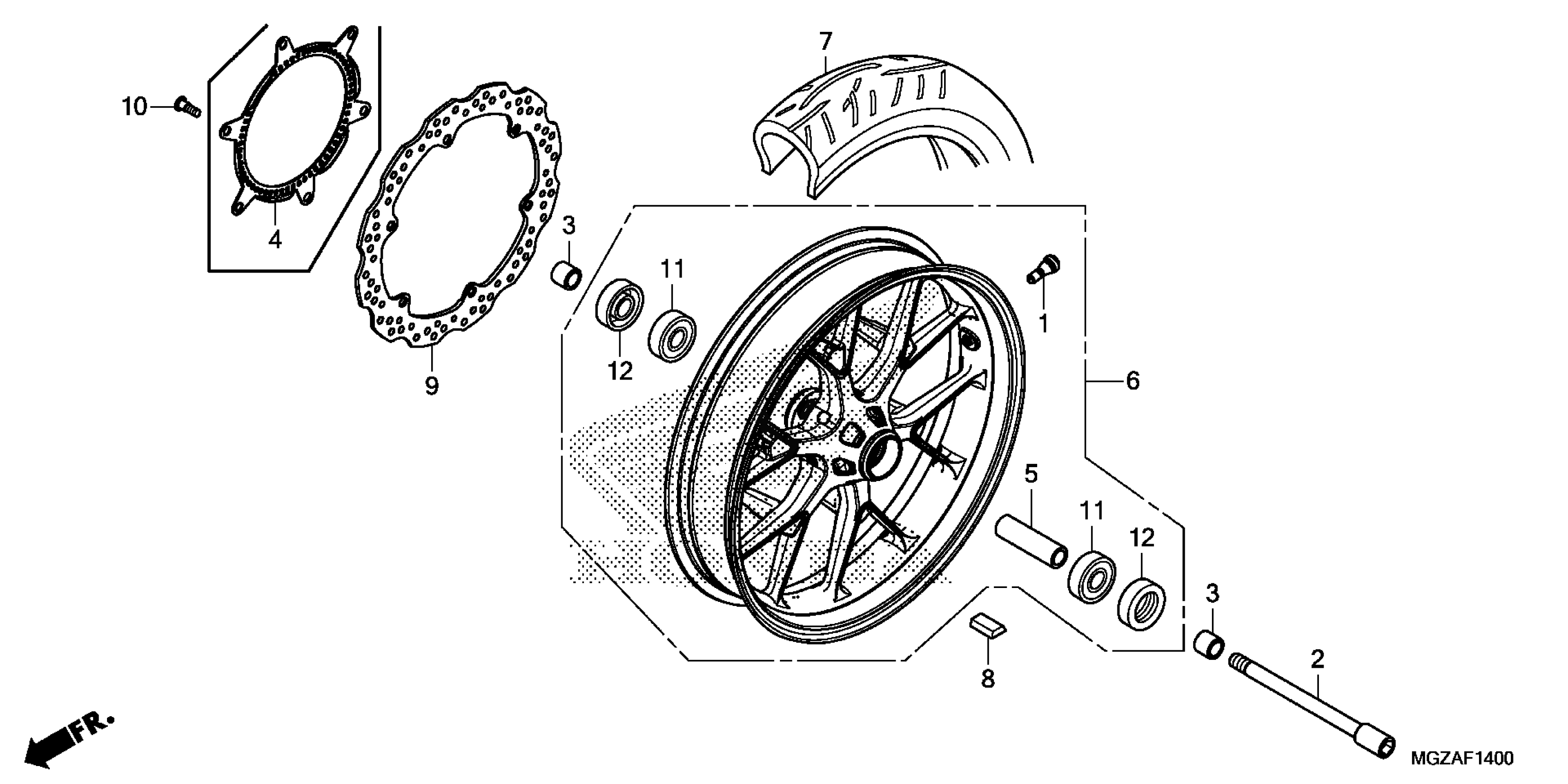

Honda CB500FAAC (14) MOTORCYCLE, THA, VIN# MLHPC450-E5100001 TO MLHPC450-E5199999 FRONT WHEEL Diagram

#

Description
Price

1

VALVE, RIM This part replaces 42753-KWF-901.

42753-K38-901

$1.49

1

VALVE, RIM

42753-K38-901

$1.49

1

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$12.74

1

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

1

VALVE, RIM (BS) This part replaces 42753-MR4-901.

42753-ML7-003

$12.74

2

AXLE, FR. WHEEL

44301-MGZ-J00

$26.39

3

COLLAR, FR. WHEEL SIDE

44311-MGZ-J00

$12.67

4

RING, FR. PULSER

44515-MGZ-J10

$139.20

5

COLLAR, FR. AXLE DISTANCE

44620-MGZ-J00

$9.98

6

WHEEL SUB-ASSY., FR. This part replaces 44650-MGZ-305.

44650-MGZ-J01

$293.48

7

TIRE, FR. (120/70ZR17) (M/C 58W) (METZELER) This part replaces 44711-MGS-D31.

44711-MGS-D36

$169.93

7

TIRE, FR. (120/70ZR17) (M/C 58W) (METZELER) This part replaces 44711-MGS-D33.

44711-MGS-D36

$169.93

7

TIRE, FR. (120/70ZR17) (M/C 58W) (METZELER) This part replaces 44711-MGS-D34.

44711-MGS-D36

$169.93

7

TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP) | Use from Frame SN E5100082.

44711-MGZ-D02

Unavailable

7

TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP) | Use from Frame SN E5100082.

44711-MJW-J01

$228.75

8

WEIGHT, BALANCE (10G) (TOHO ZINK)

44721-SEA-N02

$4.23

8

WEIGHT, BALANCE (20G) (TOHO ZINK)

44722-SEA-N02

$4.94

8

WEIGHT, BALANCE (30G) (TOHO ZINK)

44723-SEA-N02

$5.72

8

WEIGHT, BALANCE (5G) (TOHO ZINK)

44726-SEA-N02

$4.56

8

WEIGHT, BALANCE (15G) (TOHO ZINK)

44727-SEA-N02

$3.91

8

WEIGHT, BALANCE (25G) (TOHO ZINK)

44728-SEA-N02

$5.34

9

DISK, FR. BRAKE (SUNSTAR) (R. SIDE)

45251-MGZ-J11

$177.15

10

BOLT, DISK (8X25)

90105-MGS-D30

$2.92

11

BEARING, RADIAL BALL (6303UU) (FUJIKOSHI)

91051-MGZ-J01

$20.43

11

BEARING, RADIAL BALL (6303UU) (NSK)

91054-MT6-831

$38.32

12

OIL SEAL (25X47X6.5) (ARAI)

91253-KZJ-901

$2.92
