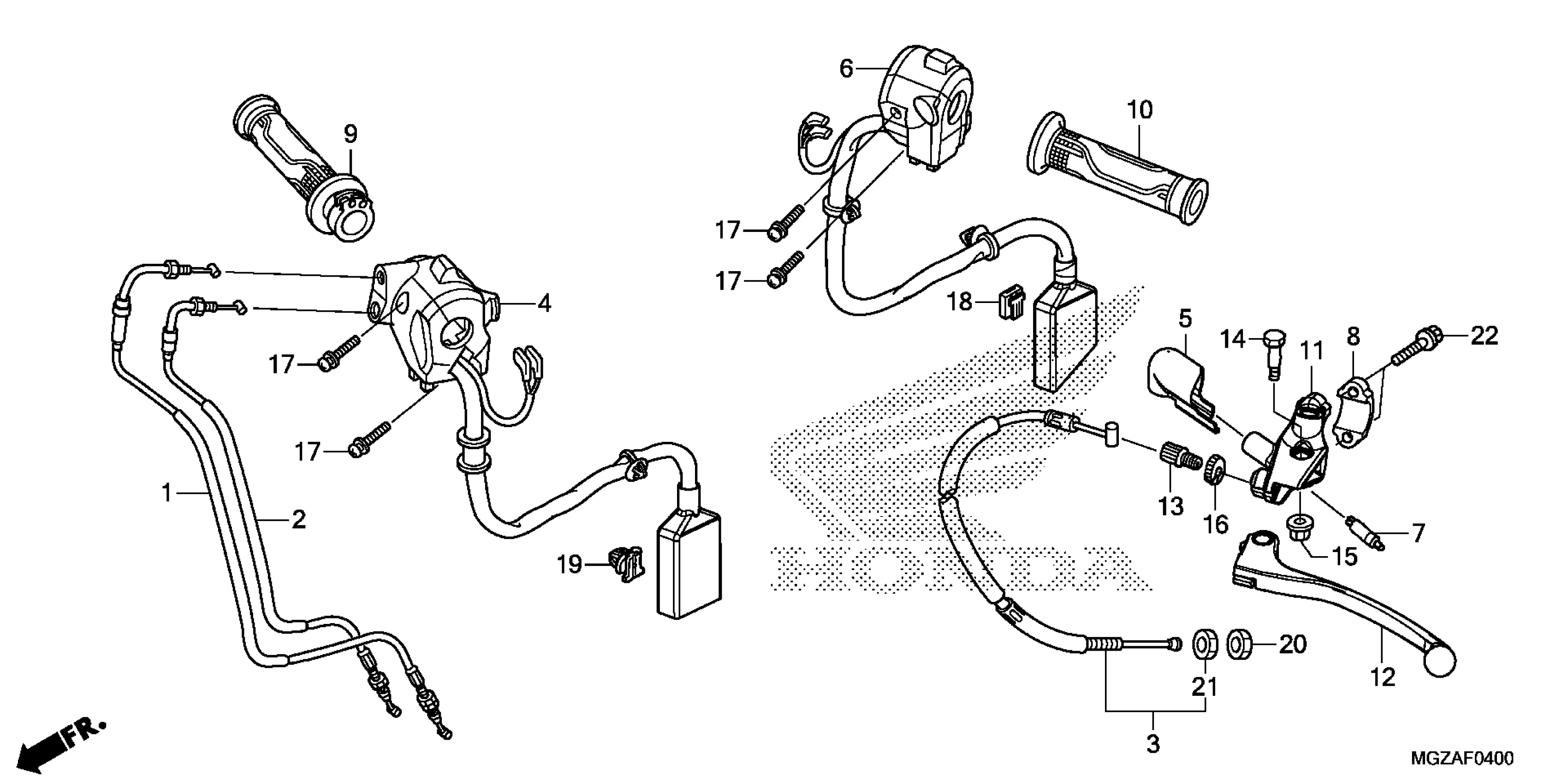

Honda CB500FA3A (15) MOTORCYCLE, THA, VIN# MLHPC455-F5200001 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE A, THROTTLE

17910-MGZ-J01

$12.66

CABLE B, THROTTLE

17920-MGZ-J01

$12.20

CABLE, CLUTCH

22870-MGZ-J01

$15.41

SWITCH, ENGINE STOP This part replaces 35130-MGZ-J41.

35130-MGZ-J42

$67.48

SWITCH, ENGINE STOP

35130-MGZ-J42

$67.48

COVER, CLUTCH SWITCH

35152-MGZ-J00

$2.00

SWITCH ASSY., TURN SIGNAL

35200-MGZ-A41

$71.43

SWITCH, FR. LEVER

35330-KYJ-901

$6.80

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

GRIP, THROTTLE (COO)

53140-KYJ-305

$10.41

GRIP, L. HANDLE (COO)

53166-KYJ-305

$5.85

BRACKET, HANDLE LEVER

53172-KYJ-900

$14.31

LEVER, L. HANDLE

53178-MAH-000

$19.50

LEVER, L. HANDLE This part replaces 53178-MFR-305.

53178-MAH-000

$19.50

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

NUT, FIXING

90321-315-670

$7.31

SCREW-WASHER (5X20)

90507-MGZ-J00

$1.49

HOLDER, BRACKET (RED)

91554-SM4-003

$7.82

CLIP, CONNECTOR (ORANGE)

91580-SM4-003

$6.67

NUT, HEX. (8MM)

94002-08070-0S

$1.49

NUT, HEX. (8MM)

94030-08070

$1.49

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
