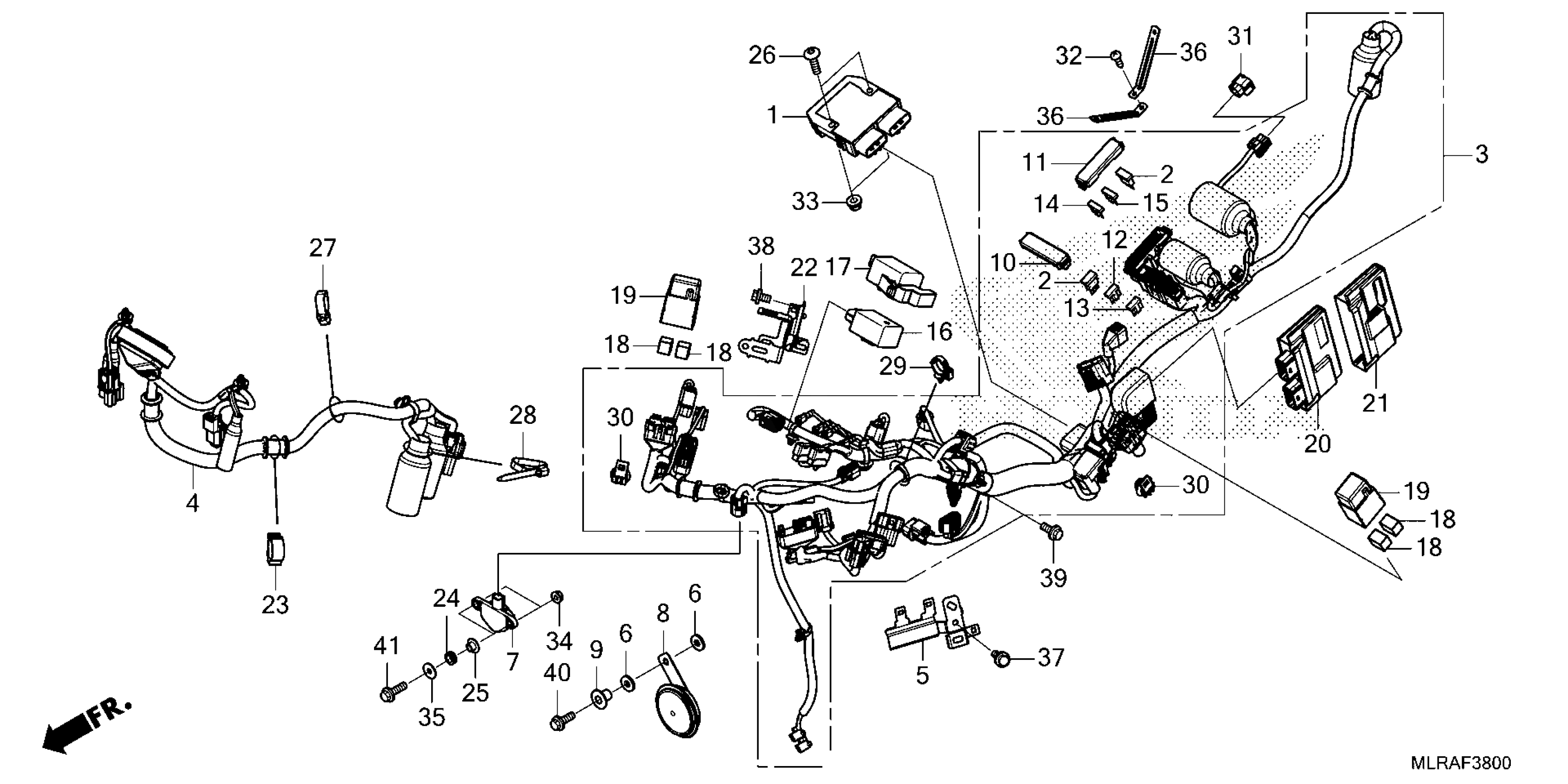

Honda CB500FA2AC (25) MOTORCYCLE, THA, VIN# MLHPC715-S5100001 TO MLHPC715-S5199999 WIRE HARNESS Diagram

RECTIFIER ASSY., REGULATOR

31600-MKN-D51

$173.16

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

WIRE HARNESS

32100-MLR-A40

$647.34

SUB-HARNESS, FR.

32103-MLR-D40

$111.16

STAY, CONNECTOR

32206-MGZ-J00

$7.22

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.32

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$138.63

HORN (HIGH)

38110-MGZ-J01

$25.68

COLLAR, HORN SETTING

38117-KFE-701

$0.71

COVER, FUSE BOX

38201-MLR-D01

$14.93

COVER, FUSE BOX

38202-MLR-D01

$14.93

FUSE, BLADE (7.5A)

38221-SNA-A31

$2.96

FUSE, BLADE (10A)

38221-SNA-A41

$2.96

FUSE, BLADE (15A)

38221-SNA-A51

$3.44

FUSE, BLADE (30A)

38221-SNA-A81

$2.24

RELAY, TURN SIGNAL (LED)(ESS)

38301-MLL-D01

$45.85

SUSPENSION

38306-MKP-D00

$3.09

RELAY (MICRO ISO 4P)

38501-MKP-DN1

Unavailable

COVER, RELAY (2P)

38506-KZZ-900

$3.34

PGM-FI UNIT

38770-MLR-A41

$340.82

CUSHION, PGM-FI UNIT

38774-MKP-D00

$3.62

STAY, RELAY BOX

50194-MLR-D00

$7.99

CLIP, RETURN HOSE

53781-SE0-952

$7.00

RUBBER, SIDE COVER

64535-MFJ-D00

$1.79

COLLAR, BANK ANGLE SENSOR

90129-MGZ-J00

$2.12

SCREW, PAN (6X25)

90135-K87-A00

$0.66

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.97

CLAMP, HARNESS

90652-HC4-003

$5.68

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$5.85

CAP, DUMMY (6P) (RED)

91771-MKK-H11

$20.76

SCREW, TAPPING (4X12)

93903-24380

Unavailable

NUT, FLANGE (6MM)

94050-06070

$1.34

NUT, FLANGE (6MM)

94050-06080

$0.60

WASHER, PLAIN (6MM)

94103-06800

$0.72

CLIP (4X90)

94591-49000

Unavailable

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.16

BOLT, FLANGE (6X10)

95701-06010-07

$1.50

BOLT, FLANGE (6X14)

95701-06014-08

$1.50

BOLT, FLANGE (6X20)

95701-06020-07

$1.50

BOLT, FLANGE (6X22)

95701-06022-00

$1.66
