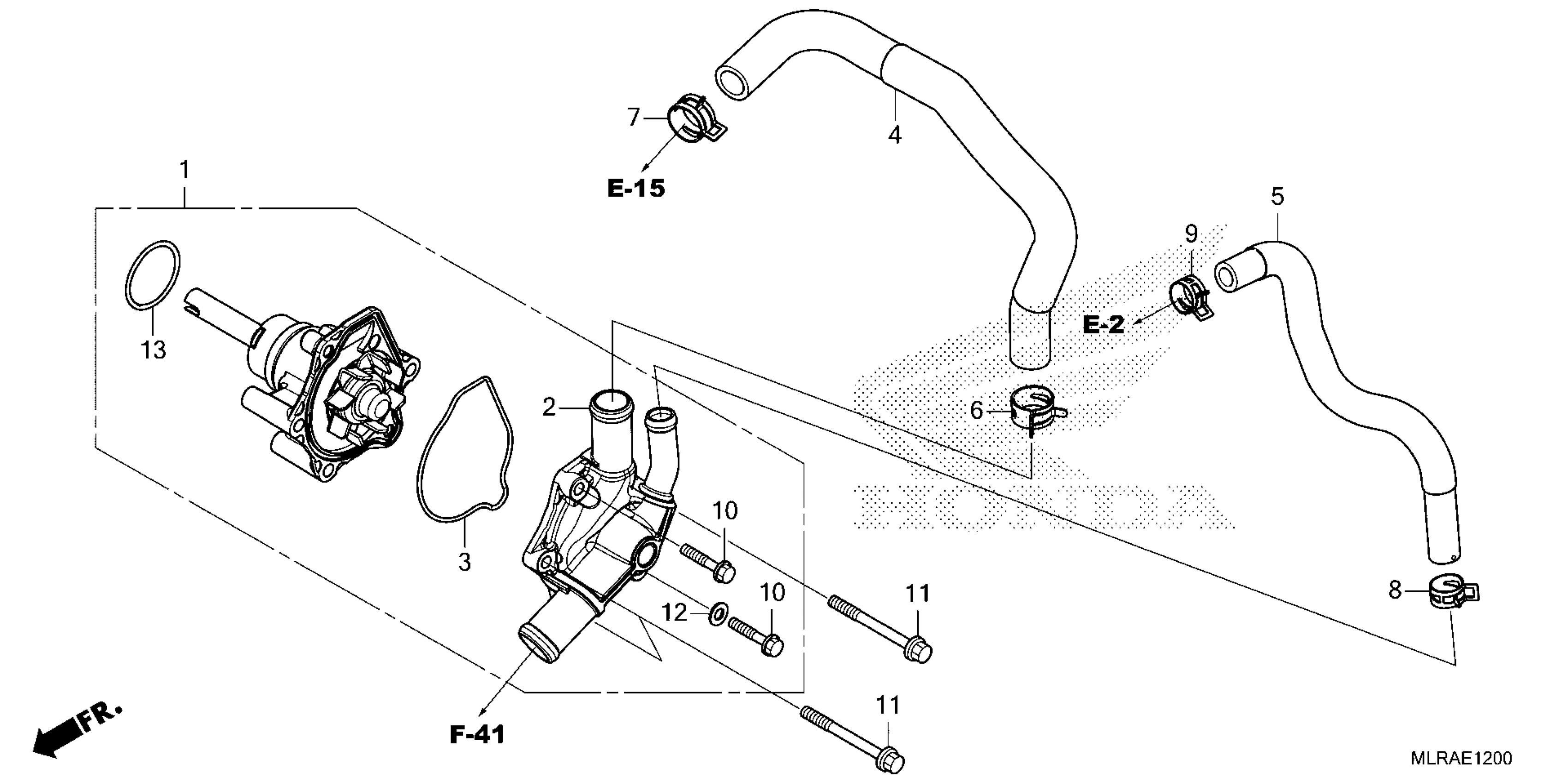

Honda CB500FA2AC (25) MOTORCYCLE, THA, VIN# MLHPC715-S5100001 TO MLHPC715-S5199999 WATER PUMP Diagram

WATER PUMP

19200-MKP-305

$135.25

COVER, WATER PUMP

19220-MGZ-J00

$86.97

GASKET, WATER PUMP BODY

19226-MGZ-J00

$5.10

HOSE A, WATER

19525-MKP-D00

$36.69

HOSE, WATER BYPASS

19526-MKP-D00

$29.20

CLIP, WATER HOSE (D27)

19531-MGZ-J00

$2.05

CLIP, WATER HOSE (D27)

19531-MJW-J00

$1.93

CLIP, WATER HOSE (D21)

19535-MGZ-J00

$1.49

CLIP, WATER HOSE (D21)

19535-MJW-J00

$1.49

BOLT, FLANGE (6X25) (S-NSHF)

90028-GHB-680

$1.49

BOLT, FLANGE (6X60)

90028-GHB-780

$1.49

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92
