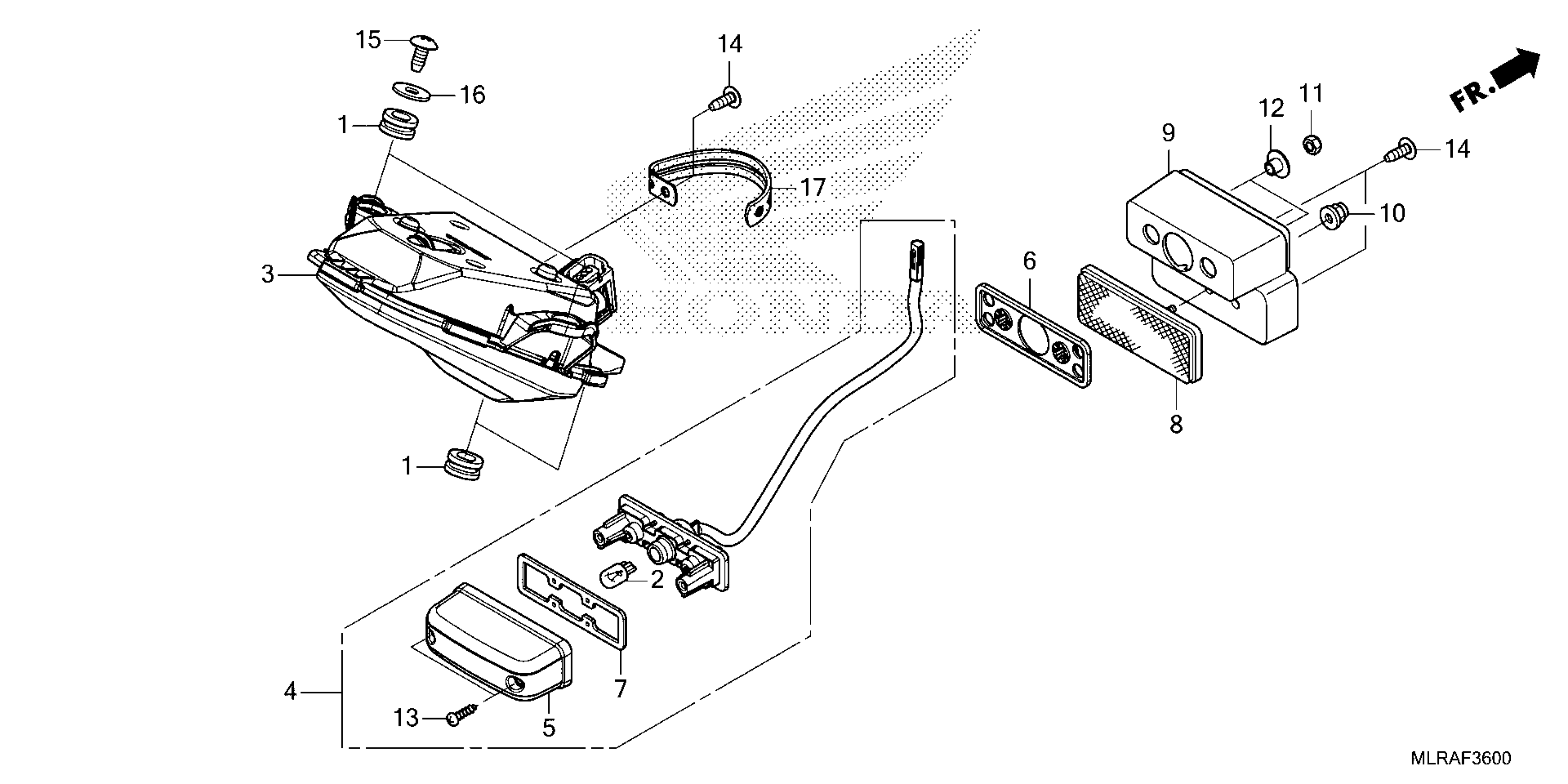

Honda CB500FA2AC (25) MOTORCYCLE, THA, VIN# MLHPC715-S5100001 TO MLHPC715-S5199999 TAILLIGHT Diagram

RUBBER, MOUNTING

19639-GBC-000

$1.29

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.74

TAILLIGHT UNIT

33701-MLR-D01

$103.00

LIGHT ASSY., LICENSE (12V 5W)

33720-MJW-A01

$34.60

COVER, LICENSE (COO) This part replaces 33722-KWN-901.

33722-K26-305

$9.47

COVER, LICENSE (COO)

33722-K26-305

$9.47

RUBBER, LICENSE LIGHT

33728-KPP-T00

$3.96

GASKET, LENS

33729-MCZ-003

$8.75

REFLECTOR, REFLEX

33741-KPL-902

$7.03

BRACKET, LICENSE LIGHT

80201-KYJ-920

$7.84

NUT, U (5MM)

90301-KWN-901

$0.62

NUT, U (5MM)

90302-KVB-T01

$1.66

COLLAR

90505-MGZ-A00

$1.60

SCREW, TAPPING (4X16)

93901-24480

$0.76

SCREW, TAPPING (4X12)

93903-24380

Unavailable

SCREW, TAPPING (5X12)

93903-25220

$0.84

WASHER, PLAIN (5MM)

94103-05800

$0.91

CLIP (4X90)

94591-49000

Unavailable
