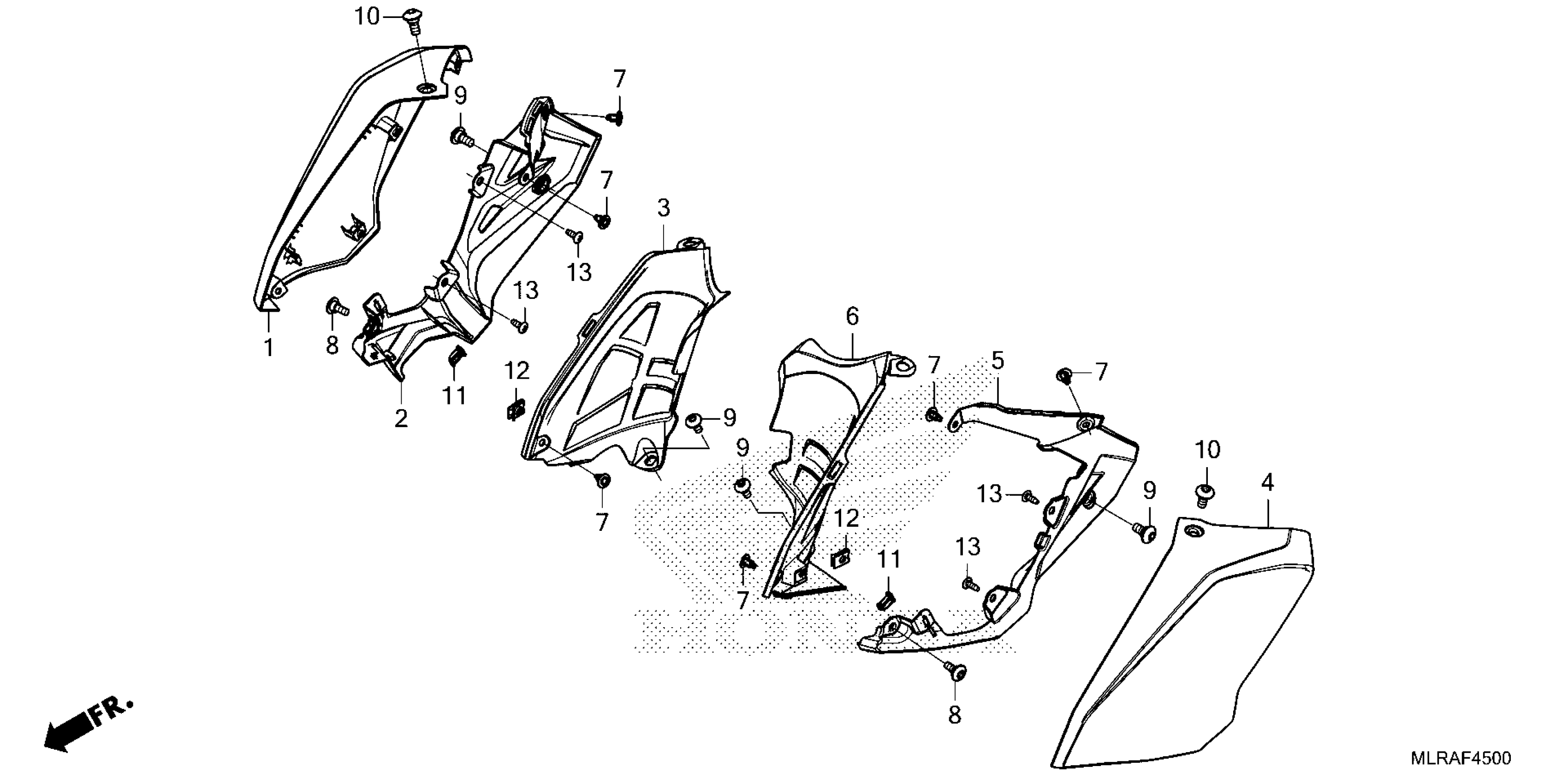

Honda CB500FA2AC (25) MOTORCYCLE, THA, VIN# MLHPC715-S5100001 TO MLHPC715-S5199999 MIDDLE COWL Diagram

SHROUD SET A, R. (TYPE2) (WL)

64300-MLR-A50ZA

$63.35

SHROUD SET A, R. (TYPE1) (WL)

64300-MLR-A50ZB

$63.35

SHROUD B, R.

64335-MLR-D40

$20.81

SHROUD, R. (INNER)

64336-MLR-D40

$7.87

SHROUD SET A, L. (TYPE2) (WL)

64400-MLR-A50ZA

Unavailable

SHROUD SET A, L. (TYPE1) (WL)

64400-MLR-A50ZB

$63.35

SHROUD B, L.

64435-MLR-D40

$20.63

SHROUD, L. (INNER)

64436-MLR-D40

$15.59

RIVET, PUSH (6MM)

90116-K0A-E11

$1.19

SCREW, SPECIAL (5X14)

90124-MKN-D50

$1.24

SCREW, SPECIAL (6X14)

90127-MKN-D50

$1.24

SCREW, PAN (6X14)

90133-KPP-T00

Unavailable

CLIP, SLIDE

90651-K14-A31

Unavailable

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

SCREW, TAPPING (4X12)

93903-24380

Unavailable
