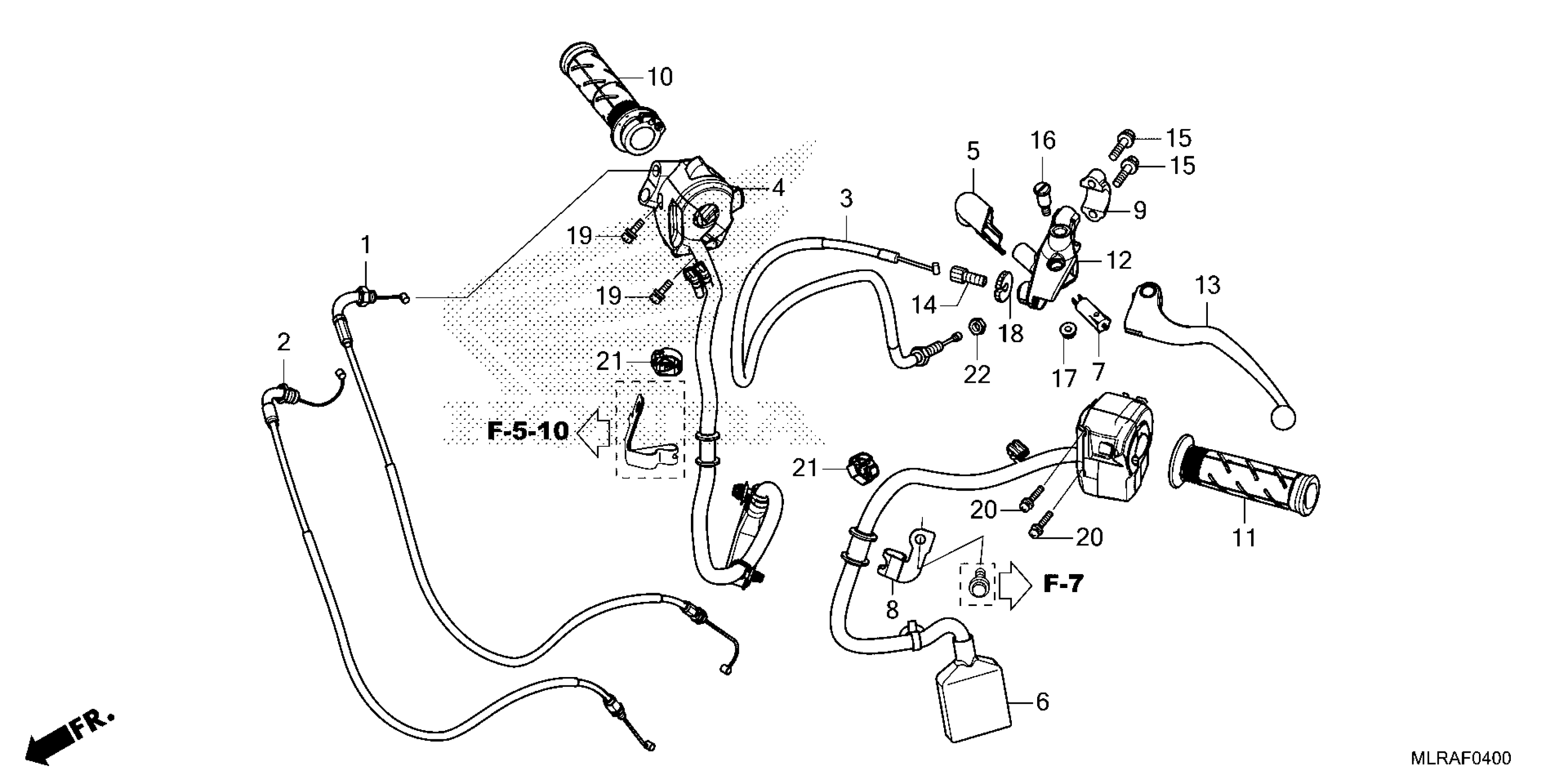

Honda CB500FA2AC (25) MOTORCYCLE, THA, VIN# MLHPC715-S5100001 TO MLHPC715-S5199999 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE A, THROTTLE

17910-MLR-D41

$11.00

CABLE B, THROTTLE

17920-MLR-D41

$9.69

CABLE, CLUTCH

22870-MKP-DP1

$7.74

SWITCH, ENGINE STOP

35130-MKP-DP1

$63.57

COVER, CLUTCH SWITCH

35152-MGZ-J00

$2.00

SWITCH, TURN SIGNAL

35200-MLR-D41

$125.44

SWITCH, FR. LEVER

35330-KYJ-901

$6.80

STAY, WIRE GUIDE

35910-MKP-J40

$6.89

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

GRIP, THROTTLE

53140-MGS-D30

$28.33

GRIP, L. HANDLE

53150-MGS-D30

$12.11

BRACKET, HANDLE LEVER

53172-KYJ-900

$14.31

LEVER, L. HANDLE

53178-MKP-J00

$13.63

BOLT, WIRE ADJUSTING

53192-MJE-D00

$4.51

BOLT, FLANGE (6X22)

90013-GHB-660

$2.33

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

NUT, FIXING

90321-KT7-760

$10.45

SCREW-WASHER (5X20)

90507-MGZ-J00

$1.49

SCREW-WASHER (5X25)

90508-MGE-D00

$1.49

CLAMP, HARNESS

90690-MEF-800

$1.49

NUT, HEX. (8MM)

94002-08070-0S

$1.49
