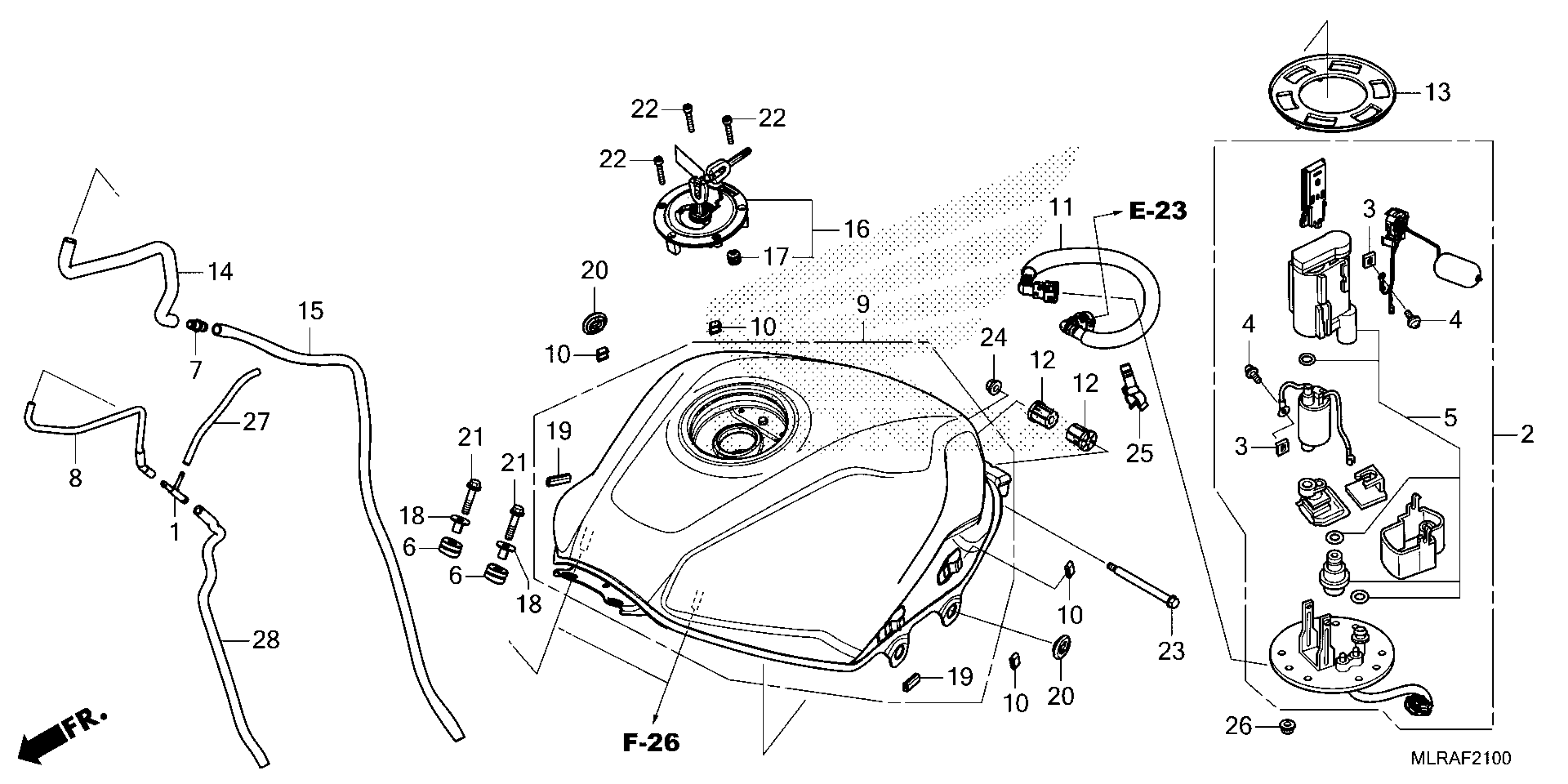

Honda CB500FA2AC (25) MOTORCYCLE, THA, VIN# MLHPC715-S5100001 TO MLHPC715-S5199999 FUEL TANK@FUEL PUMP Diagram

UNIT, FUEL PUMP

16700-MKP-J02

$501.53

STOPPER

16711-MGS-D31

$4.47

SCREW (4X6.6)

16712-MGS-D31

$1.74

FILTER ASSY., FUEL

16730-MKT-D01

$38.84

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.80

JOINT, BREATHER TUBE

17359-419-670

$1.90

TANK, FUEL (TYPE3)

17500-MLR-D40ZA

$481.74

TANK, FUEL (TYPE2)

17500-MLR-D40ZB

$481.74

RUBBER, TANK COVER

17529-K15-920

$1.97

HOSE, FUEL FEED

17570-MJW-J01

$43.59

CUSHION, RR. FUEL TANK PIVOT

17572-KPP-T00

$2.13

GASKET, BASE

17574-MGS-D30

$22.44

TUBE, FUEL TANK DRAIN

17590-MGZ-J00

$7.99

TUBE, FUEL TANK DRAIN

17591-MJW-J00

$5.41

CAP COMP

17620-MJE-D04

$205.01

SEAL, BREATHER

17621-MGP-D62

$4.90

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$3.83

RUBBER, PROTECTOR

64122-MCZ-000

$1.66

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

BOLT, FLANGE (6X25)

90013-GHB-670

$2.15

BOLT, SOCKET (4X25) (SUS)

90120-MJE-D00

$0.88

BOLT, TANK HINGE

90135-MS2-000

$5.95

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.28

CLAMP, FUEL HOSE (BLACK)

91593-MGZ-J01

$2.09

NUT, FLANGE (6MM)

94050-06000

$0.60
