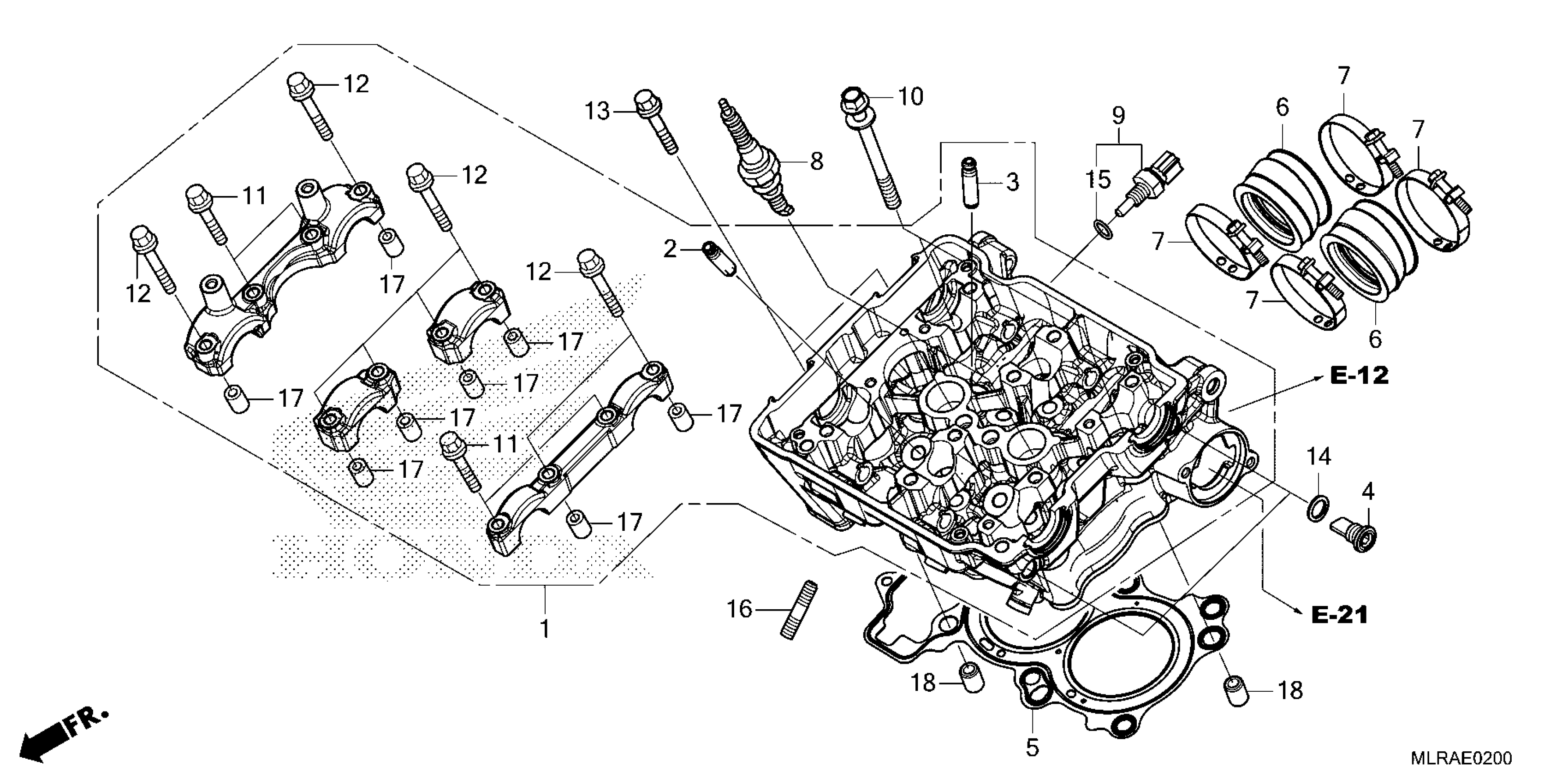

Honda CB500FA2AC (25) MOTORCYCLE, THA, VIN# MLHPC715-S5100001 TO MLHPC715-S5199999 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY.

12010-MKP-DA1

$547.62

GUIDE, VALVE (OVER SIZE) (EXHAUST SIDE)

12204-KYJ-305

$17.66

GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE)

12205-KYJ-305

$17.66

BOLT, SEALING (12MM)

12207-MGZ-J00

$7.78

GASKET, CYLINDER HEAD

12251-MGZ-J01

$30.07

INSULATOR

16211-MKP-DN0

$8.60

BAND, INSULATOR

16217-MGZ-J00

$3.13

SPARK PLUG (CPR8EA-9) (NGK)

31916-KRM-841

$4.88

SENSOR ASSY., WATER TEMPERATURE

37870-KZR-601

$8.17

BOLT-WASHER (9X100)

90007-MGZ-J00

$4.50

BOLT, FLANGE (6X32)

90017-KYJ-900

$0.71

BOLT, FLANGE (6X39.5)

90019-KYJ-900

$0.76

BOLT, FLANGE (6X35)

90023-GHB-720

$2.25

WASHER (12.2X17X1.5)

90418-KYJ-900

$0.87

O-RING (9.5X1.9) (PANASONIC)

91307-PLC-004

$2.96

BOLT, STUD (8X22)

92900-08022-3E

$2.13

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.62

PIN A, DOWEL (12X16)

94301-12160

$2.80
