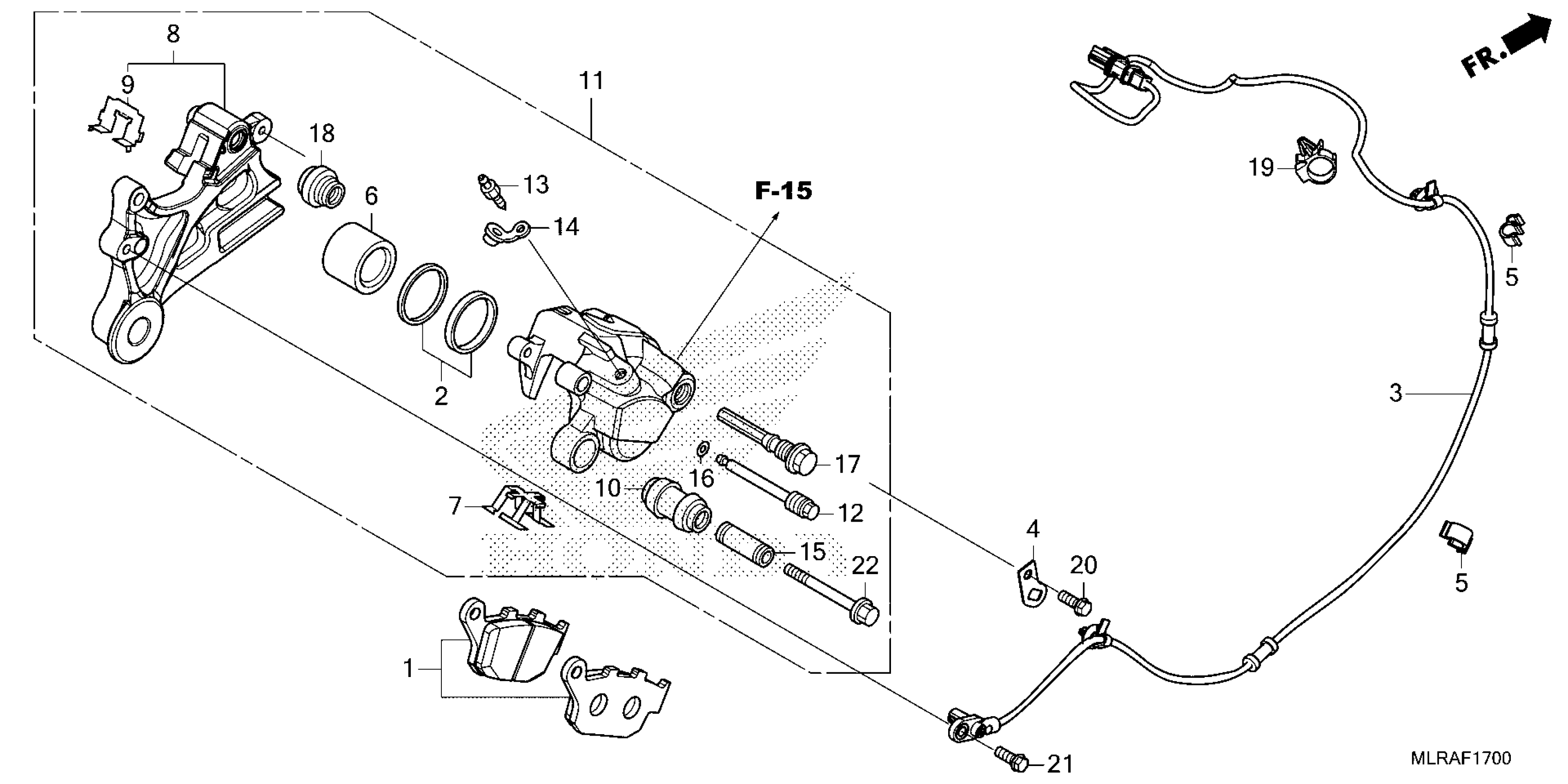

Honda CB500FA2AC (24) MOTORCYCLE, THA, VIN# MLHPC715-R5000001 TO MLHPC715-R5099999 REAR BRAKE CALIPER Diagram

#

Description
Price

1

PAD SET, RR.

06435-MGZ-J02

$27.89

2

SEAL SET, PISTON

06451-443-405

$12.15

3

SENSOR, RR. SPEED

38510-MLR-D01

$19.03

4

STAY, CLIP

38515-MKP-J00

$1.65

5

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.51

6

PISTON

43107-KT7-761

$34.77

7

SPRING, PAD

43108-MBB-006

$5.90

8

BRACKET, RR. BRAKE

43110-MJW-J11

$48.88

9

RETAINER

43112-KT7-761

$8.68

10

BOOT, SLEEVE

43132-KT7-761

$7.85

11

CALIPER SUB-ASSY., RR. (NISSIN) (MSDS)

43150-MJW-J11

$141.96

12

PIN, HANGER

43215-KZ4-J41

Unavailable

13

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

14

CAP, BLEEDER

43353-461-771

Unavailable

15

SLEEVE

45111-MA3-006

$12.28

16

RING, STOPPER

45111-MAJ-G41

$3.63

17

BOLT, PIN

45131-MN9-006

$14.66

18

BOOT B

45133-MA3-006

$5.21

19

CLIP, RETURN HOSE

53781-SE0-952

$7.00

20

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.15

21

BOLT, FLANGE (6X16)

90116-MKP-DN0

$0.99

22

BOLT, FLANGE (8X49)

90180-MN8-006

$5.80
