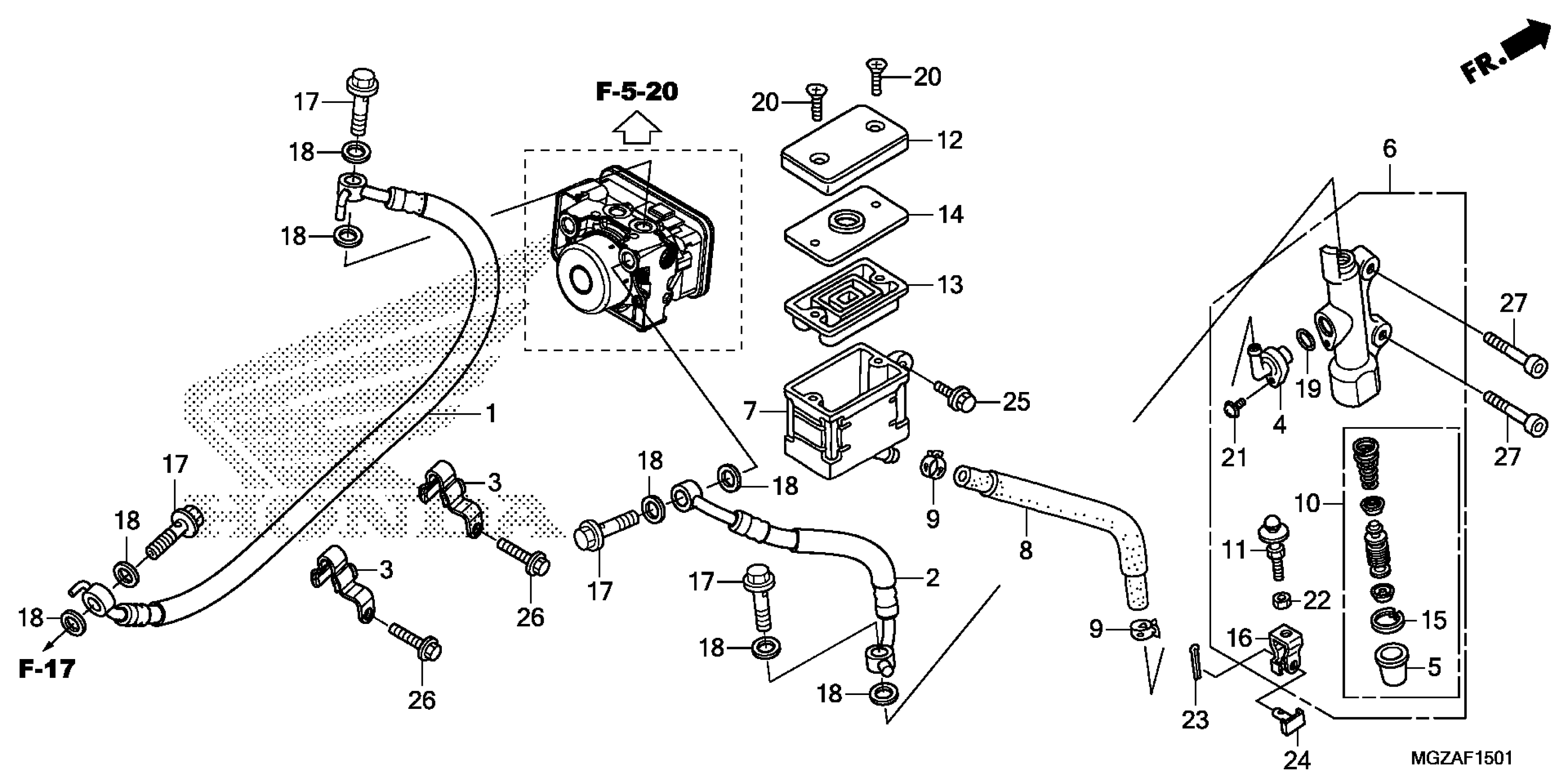

Honda CB500FA2AC (15) MOTORCYCLE, THA, VIN# MLHPC450-F5200001 REAR BRAKE MASTER CYLINDER (ABS) Diagram

#

Description
Price

1

HOSE A, RR. BRAKE

43310-MGZ-J11

$23.07

2

HOSE B, RR. BRAKE

43313-MGZ-J11

$21.66

3

GUIDE, RR. BRAKE HOSE

43468-MGZ-J10

$4.21

4

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.74

5

BOOT

43504-MB2-006

$10.04

6

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-MGZ-D01

$217.05

7

CUP, OIL

43511-KV3-831

$23.70

8

HOSE, RR. BRAKE MASTER CYLINDER

43512-MGZ-J01

$15.93

9

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

10

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$46.73

11

ROD, PUSH

43530-KV3-701

$19.84

12

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$4.28

12

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

13

DIAPHRAGM

45520-MG7-006

$10.61

14

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

15

CIRCLIP

46182-MEL-D21

$1.93

16

JOINT, BRAKE ROD

46504-KV6-702

$7.84

17

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

O-RING (14.8X2.4)

91212-422-006

$2.56

20

SCREW, FLAT (4X40)

93600-04040-1G

$1.49

21

SCREW-WASHER (4X12)

93893-04012-07

$1.49

21

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

22

NUT, HEX. (8MM)

94002-08000-0S

$1.49

23

PIN, COTTER (2.0X15)

94201-20150

$1.49

24

PIN D, JOINT

95015-54000

$4.24

25

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

26

BOLT, FLANGE (6X18)

96001-06018-07

$1.49

27

BOLT, SOCKET (6X20)

96600-06020-00

$1.49
