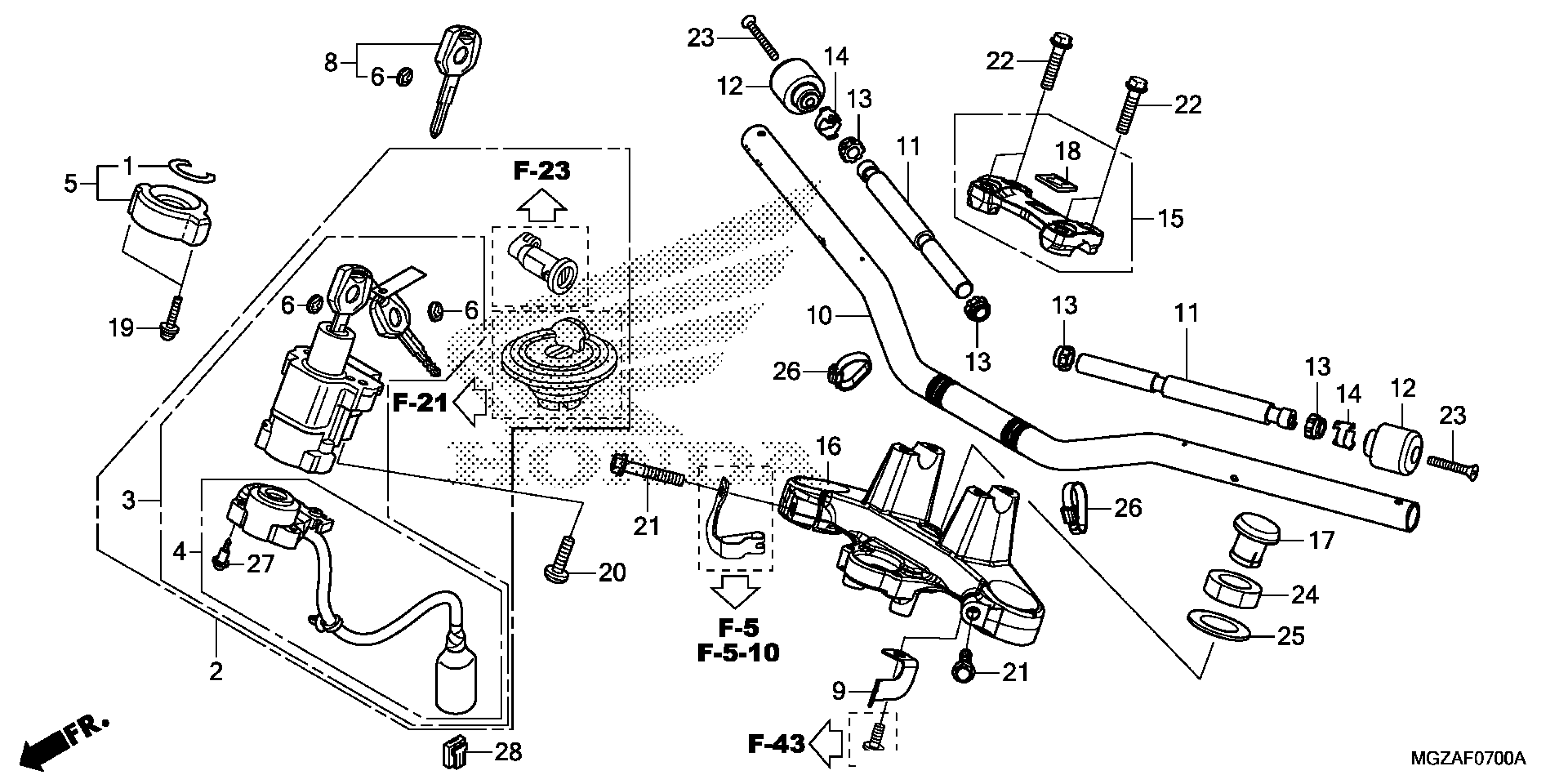

Honda CB500F3A (14) MOTORCYCLE, THA, VIN# MLHPC456-E5100001 TO MLHPC456-E5199999 HANDLEBAR@TOP BRIDGE Diagram

#

Description
Price

1

SEAL, IGNITION SWITCH

30433-MBW-602

$2.58

2

LOCK SET | Use up to Frame SN E5100196. This part replaces 35010-MGZ-A00.

35010-MGZ-A01

$222.39

2

LOCK SET

35010-MGZ-A01

$222.39

3

SWITCH ASSY., COMBINATION & LOCK (MSDS) | Use up to Frame SN E5100196. This part replaces 35100-MGZ-A01.

35100-MGZ-A02

$275.00

3

SWITCH ASSY., COMBINATION & LOCK (MSDS)

35100-MGZ-A02

$275.00

4

BASE, CONTACT

35101-MGZ-J01

$38.77

5

COVER, COMBINATION SWITCH

35106-MAT-A00

$9.44

6

EMBLEM, KEY | (Optional).

35113-MFJ-D01

$2.80

8

KEY, BLANK | (Optional).

35121-MGS-A31

$21.05

9

GUIDE, L. FR. WIRE

35910-MGZ-J00

$2.14

10

HANDLEBAR (COO)

53100-MGZ-306

$49.19

11

WEIGHT B, HANDLEBAR

53104-KYJ-900

$6.22

12

WEIGHT, HANDLEBAR

53104-MGZ-J00

$9.44

13

RUBBER, HANDLE WEIGHT (B)

53107-MY1-000

$6.52

14

RING, HANDLE WEIGHT SNAP

53108-KR3-770

$5.80

15

HOLDER ASSY., HANDLE (UPPER) *NH303M* (MAT AXIS GRAY METALLIC)

53130-MGS-D30ZB

$34.45

16

BRIDGE, FORK TOP

53230-MGZ-J40

$90.96

17

CAP, STEERING STEM NUT

53232-MJ4-670

$12.06

18

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.37

18

EMBLEM, PRODUCT (UEHARA)

86150-KPG-902

$3.65

19

SCREW-WASHER (5X22)

90020-MBW-610

$2.33

20

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.80

21

BOLT, FLANGE (8X40)

90108-KZZ-900

$0.67

22

BOLT, FLANGE (8X36) BOLT, FLANGE (8X35)

90111-362-000

$4.47

23

SCREW, OVAL (6X50)

90191-KYJ-900

$0.90

24

NUT, STEERING STEM

90304-KGA-900

$2.83

25

WASHER, STEERING STEM

90503-KGA-900

$1.36

26

BAND, WIRE

90650-KW3-000

$4.16

27

SCREW, TAPPING (3X16)

91059-KY2-711

$2.80

28

HOLDER, BRACKET (RED)

91554-SM4-003

$7.12
