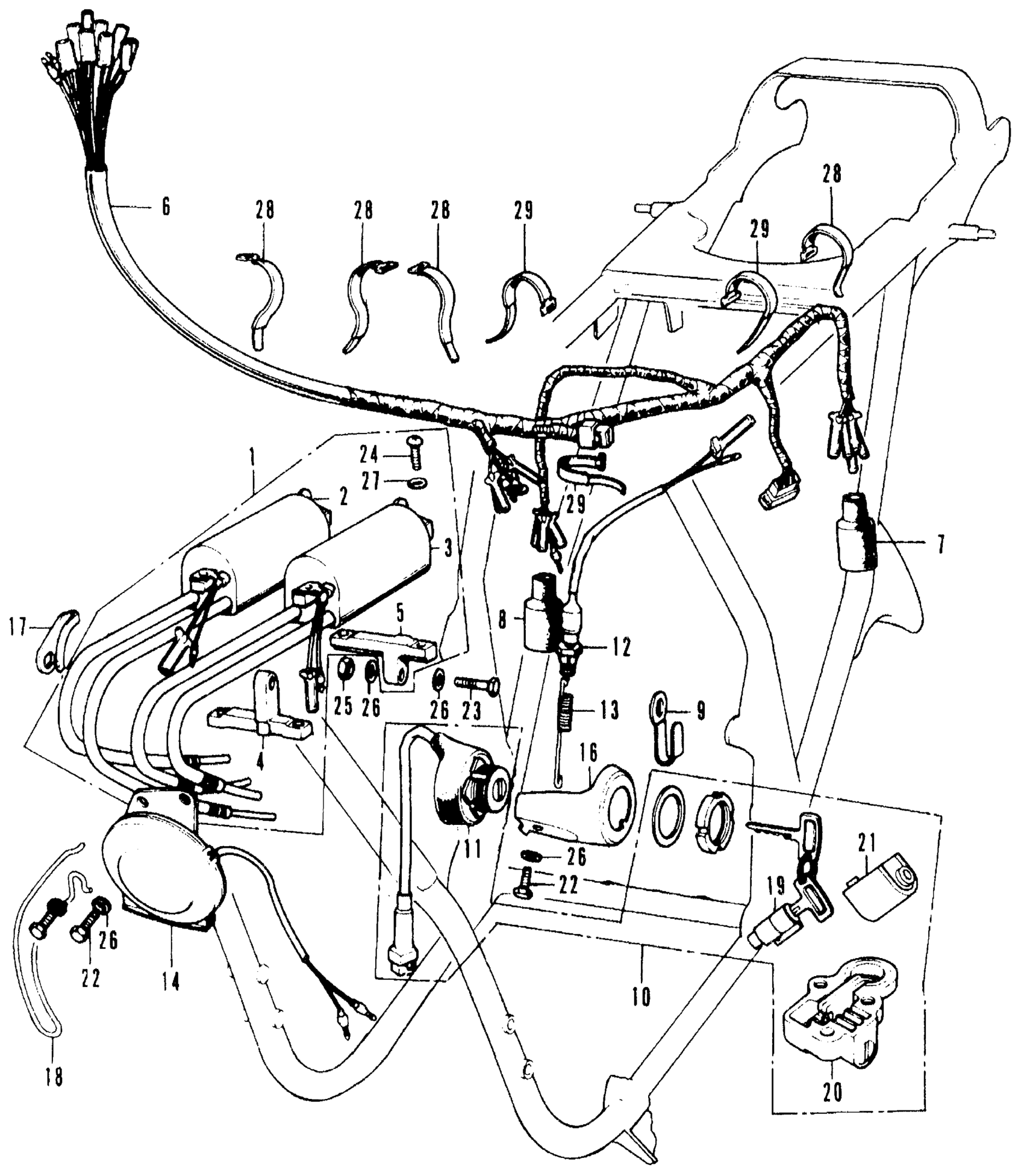

Honda CB500A MOTORCYCLE, JPN, VIN# CB500-1000001 WIRE HARNESS Diagram

#

Description
Price

1

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30500-323-023.

30500-404-000

Unavailable

2

COIL, R. IGNITION (NOT AVAILABLE)

30501-323-003

Unavailable

3

COIL, L. IGNITION (NOT AVAILABLE)

30502-323-003

Unavailable

4

BRACKET, IGNITION COIL (NOT AVAILABLE)

30511-300-000

Unavailable

5

BRACKET B, IGNITION COIL (NOT AVAILABLE)

30512-323-000

Unavailable

6

WIRE HARNESS (NOT AVAILABLE)

32100-323-020

Unavailable

7

COVER, WIRE HARNESS CONNECTOR

32108-046-750

$3.87

8

COVER, WIRE HARNESS CONNECTOR (NOT AVAILABLE)

32108-323-300

Unavailable

9

CLIP, WIRE HARNESS

32171-323-000

Unavailable

10

SWITCH KIT, MAIN (NOT AVAILABLE) This part replaces 35020-323-003.

35020-323-671

Unavailable

10

SWITCH KIT, MAIN (NOT AVAILABLE)

35020-323-671

Unavailable

11

SWITCH ASSY., COMBINATION (TOYO) This part replaces 35100-323-003.

35100-374-007

Unavailable

11

SWITCH ASSY., COMBINATION (TOYO) This part replaces 35100-369-740.

35100-374-007

Unavailable

11

SWITCH ASSY., COMBINATION (TOYO) This part replaces 35100-374-000.

35100-374-007

Unavailable

11

SWITCH ASSY., COMBINATION (TOYO)

35100-374-007

Unavailable

12

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

12

SWITCH ASSY., RR. STOP This part replaces 35350-292-003.

35350-KJ9-405

$16.97

12

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$16.97

13

SPRING, STOP SWITCH

35357-011-000

$2.46

14

HORN ASSY. (MITSUBA)

38100-300-023

Unavailable

16

BRACKET, MAIN SWITCH (NOT AVAILABLE)

50375-323-020

Unavailable

17

PROTECTOR, IGNITION COIL CABLE (NOT AVAILABLE)

50400-323-000

Unavailable

18

CLAMP, TACHOMETER CABLE This part replaces 50462-323-000.

50462-323-010

Unavailable

18

CLAMP, TACHOMETER CABLE

50462-323-010

Unavailable

19

LOCK, HANDLEBAR

35010-230-010

Unavailable

19

LOCK, HANDLEBAR This part replaces 53600-230-000.

35010-230-010

Unavailable

21

LOCK, HANDLEBAR (HONDALOCK)

53600-086-007

$47.89

21

LOCK, HANDLEBAR This part replaces 77250-323-000.

53600-086-007

$47.89

21

LOCK, HANDLEBAR This part replaces 77250-323-007.

53600-086-007

$47.89

22

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

23

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

23

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

24

SCREW, PAN (5X20)

93500-05020-0A

$1.49

25

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM)

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, SPRING (5MM)

94111-05000

$1.49

28

BAND B1, CABLE

32161-404-000

$2.23

28

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

29

BAND A2, CABLE

95014-61200

$2.33
