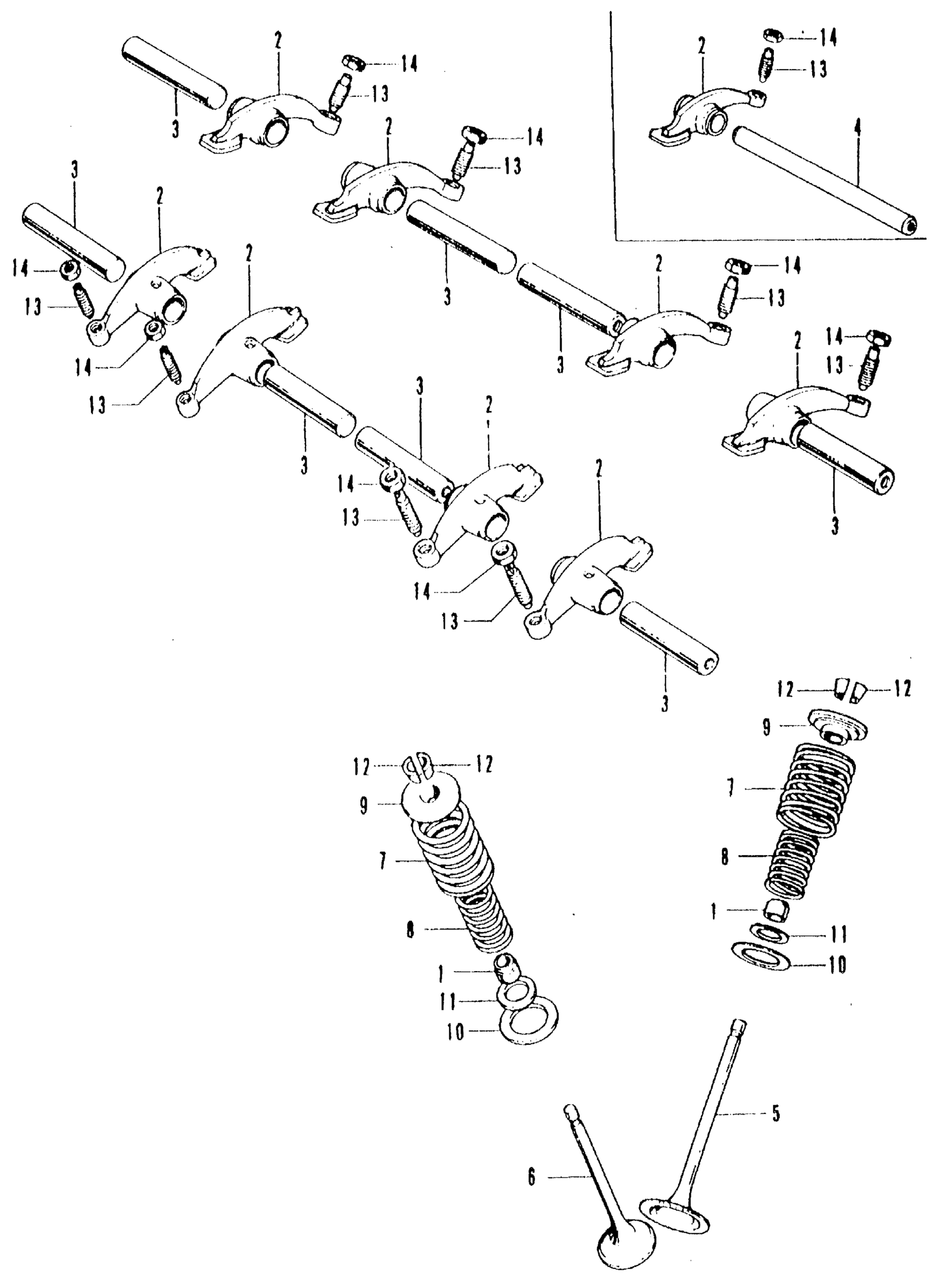

Honda CB500A MOTORCYCLE, JPN, VIN# CB500-1000001 VALVE + ROCKER ARM Diagram

#

Description
Price

1

SEAL, VALVE STEM (NIPPON) This part replaces 12209-323-005.

12209-333-005

$10.65

1

SEAL, VALVE STEM (NIPPON)

12209-333-005

$10.65

2

ARM, VALVE ROCKER

14431-324-000

Unavailable

4

SHAFT, VALVE ROCKER ARM (NOT AVAILABLE)

14451-323-305

Unavailable

5

VALVE, IN.

14711-107-020

Unavailable

6

VALVE, EX. (MITSUBISHI)

14721-323-005

$72.84

7

SPRING, VALVE (OUTER) This part replaces 14751-107-010.

14751-324-000

$9.08

7

SPRING, VALVE (OUTER)

14751-324-000

$9.08

8

SPRING, VALVE (INNER) This part replaces 14761-107-010.

14761-324-000

Unavailable

8

SPRING, VALVE (INNER)

14761-324-000

Unavailable

9

RETAINER, VALVE SPRING

14771-107-020

$7.99

10

SEAT, VALVE SPRING (OUTER)

14775-107-000

$4.08

11

SEAT, VALVE SPRING (INNER)

14776-107-010

$2.20

12

COTTER, VALVE (SANKO)

14781-107-003

$2.55

12

COTTER, VALVE (SANKO) This part replaces 14781-107-020.

14781-107-003

$2.55

13

SCREW, TAPPET ADJUSTING This part replaces 90012-300-000.

90012-426-000

$5.94

13

SCREW, TAPPET ADJ.

90012-426-000

$5.94

14

NUT, TAPPET ADJ.

90206-250-000

$2.94
