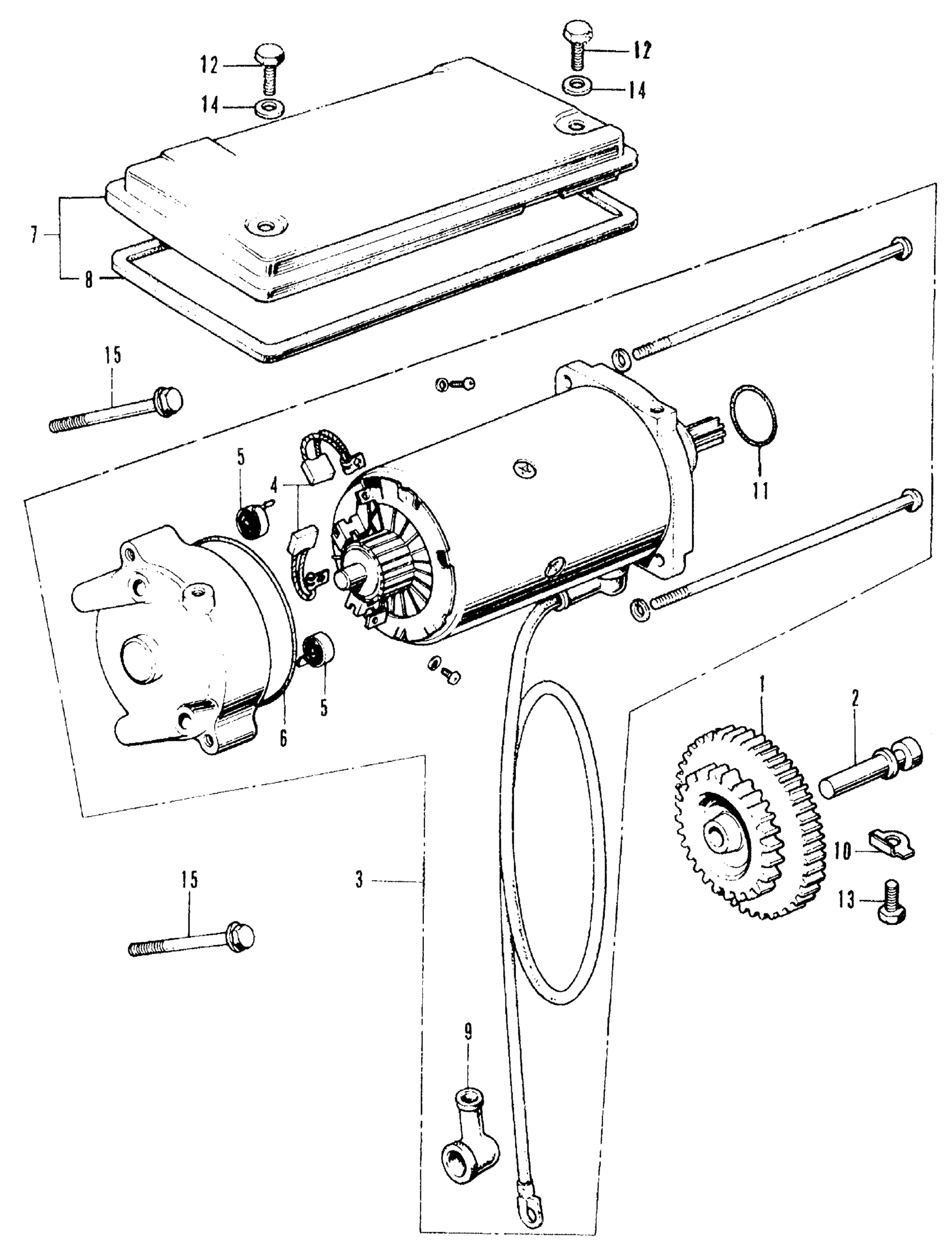

Honda CB500A MOTORCYCLE, JPN, VIN# CB500-1000001 STARTING MOTOR Diagram

#

Description
Price

1

GEAR, STARTER REDUCTION

28101-323-000

Unavailable

2

SHAFT, STARTER REDUCTION GEAR (NOT AVAILABLE)

28106-323-000

Unavailable

3

STARTER MOTOR ASSY. This part replaces 31200-323-013.

31200-426-405

Unavailable

4

BRUSH SET, CARBON

31201-292-158

$26.15

5

SPRING, CARBON BRUSH

31204-292-158

$3.83

6

O-RING (60X1.4) This part replaces 31206-286-158.

31206-402-008

Unavailable

6

O-RING (60X1.4)

31206-402-008

Unavailable

7

COVER, STARTER MOTOR (NOT AVAILABLE)

31280-323-000

Unavailable

8

GASKET, STARTER MOTOR COVER (NOT AVAILABLE)

31282-323-300

Unavailable

9

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

9

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

10

WASHER, SPRING (6MM) (NOT AVAILABLE)

90433-283-000

Unavailable

11

O-RING (24.4X3.1) This part replaces 91309-300-000.

91312-MG7-003

$6.34

11

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

11

O-RING (24.4X3.1)

91312-MG7-003

$6.34

12

BOLT, HEX. (6X12) This part replaces 92000-06012-02.

92101-06012-0B

$1.49

12

BOLT, HEX. (6X12)

92101-06012-0B

$1.49

13

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

14

WASHER, PLAIN (6MM)

94101-06200

$1.49

15

BOLT, FLANGE (6X55) This part replaces 95700-06055-00.

95701-06055-00

$2.16

15

BOLT, FLANGE (6X55)

95701-06055-00

$2.16
