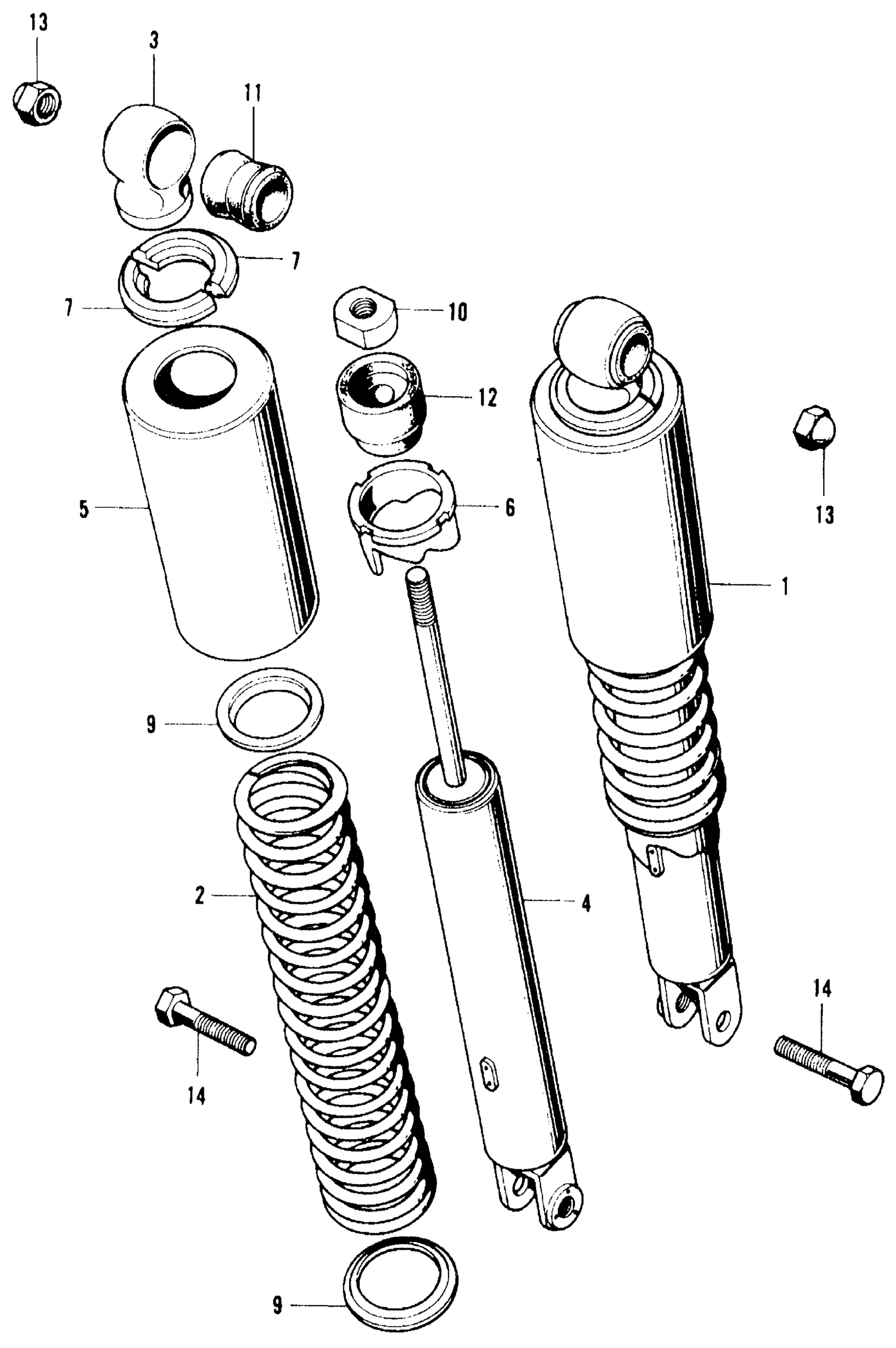

Honda CB500A MOTORCYCLE, JPN, VIN# CB500-1000001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE) This part replaces 52400-323-010XW.

52400-390-681XW

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-323-000

Unavailable

3

JOINT (UPPER) (NOT AVAILABLE)

52403-312-000

$18.07

4

DAMPER, RR. (NOT AVAILABLE)

52410-323-000

Unavailable

5

CASE, RR. SHOCK ABSORBER (UPPER) *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

52421-300-000XW

Unavailable

6

ADJUSTER, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)

52422-292-000

Unavailable

7

STOPPER, SPRING SEAT (SHOWA)

52424-331-003

$8.90

9

SEAT, RR. SHOCK ABSORBER SPRING (LOWER) (NOT AVAILABLE) This part replaces 52458-312-000.

52458-329-000

Unavailable

9

SEAT, RR. SHOCK ABSORBER SPRING (SHOWA) (NOT AVAILABLE)

52459-312-003

Unavailable

10

NUT, LOCK (10MM) (NOT AVAILABLE)

52482-312-000

Unavailable

11

RUBBER, JOINT

52484-292-000

$5.87

12

RUBBER, STOPPER (NOT AVAILABLE) This part replaces 52517-312-000.

52517-358-771

Unavailable

13

NUT, FLANGE (10MM)

90309-315-000

$5.35

14

BOLT, HEX. (10X32) This part replaces 93000-10032-0A.

93101-10032-0A

Unavailable

14

BOLT, HEX. (10X32) This part replaces 93100-10032-0A.

93101-10032-0A

Unavailable
