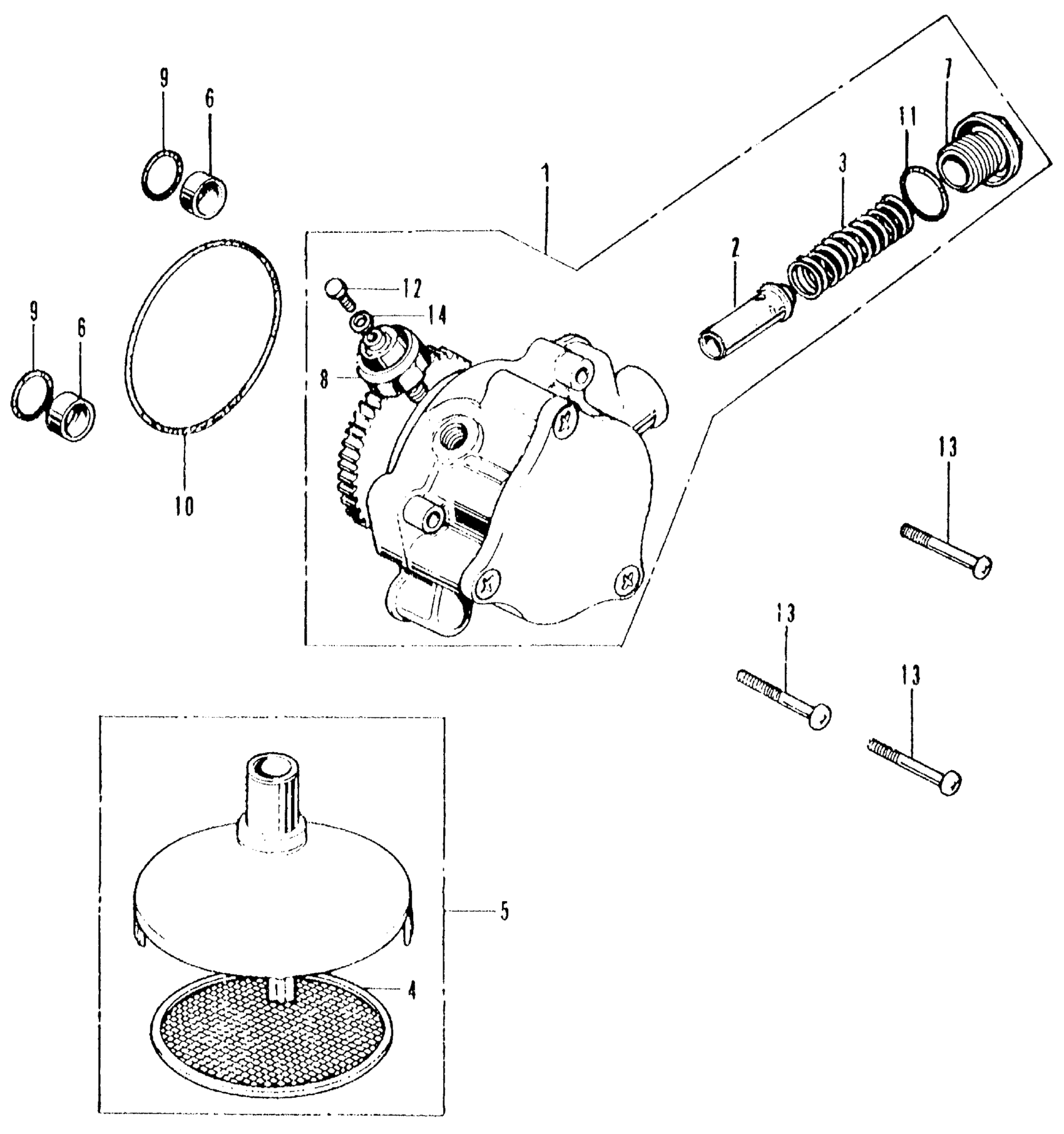

Honda CB500A MOTORCYCLE, JPN, VIN# CB500-1000001 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL (NOT AVAILABLE) This part replaces 15100-323-003.

15100-390-000

Unavailable

2

VALVE, RELIEF (NOT AVAILABLE)

15140-300-010

Unavailable

3

SPRING, RELIEF VALVE (NOT AVAILABLE)

15145-300-000

Unavailable

4

SCREEN, OIL STRAINER

15150-300-000

Unavailable

5

STRAINER, OIL (NOT AVAILABLE)

15150-323-000

Unavailable

6

COLLAR, O-RING (NOT AVAILABLE)

15155-323-000

Unavailable

7

CAP, OIL PASSAGE (NOT AVAILABLE)

15331-323-003

Unavailable

8

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-300-000.

37240-P13-013

$44.49

8

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-333-004.

37240-P13-013

$44.49

8

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-333-014.

37240-P13-013

$44.49

8

SWITCH ASSY., OIL PRESSURE (DENSO)

37240-P13-013

$44.49

9

O-RING (13.6X2.4)

91301-268-020

$2.95

10

O-RING (47X3.2)

91302-250-010

$7.30

11

O-RING (19.4X2.8) This part replaces 91315-044-000.

94608-40000

$1.49

11

O-RING (19.4X2.8)

94608-40000

$1.49

12

BOLT, HEX. (4X6) (NOT AVAILABLE)

92000-04006-0A

Unavailable

13

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

13

SCREW, PAN (6X35)

93500-06035-0A

$1.49

14

WASHER, PLAIN (4MM)

94101-04000

$1.49
