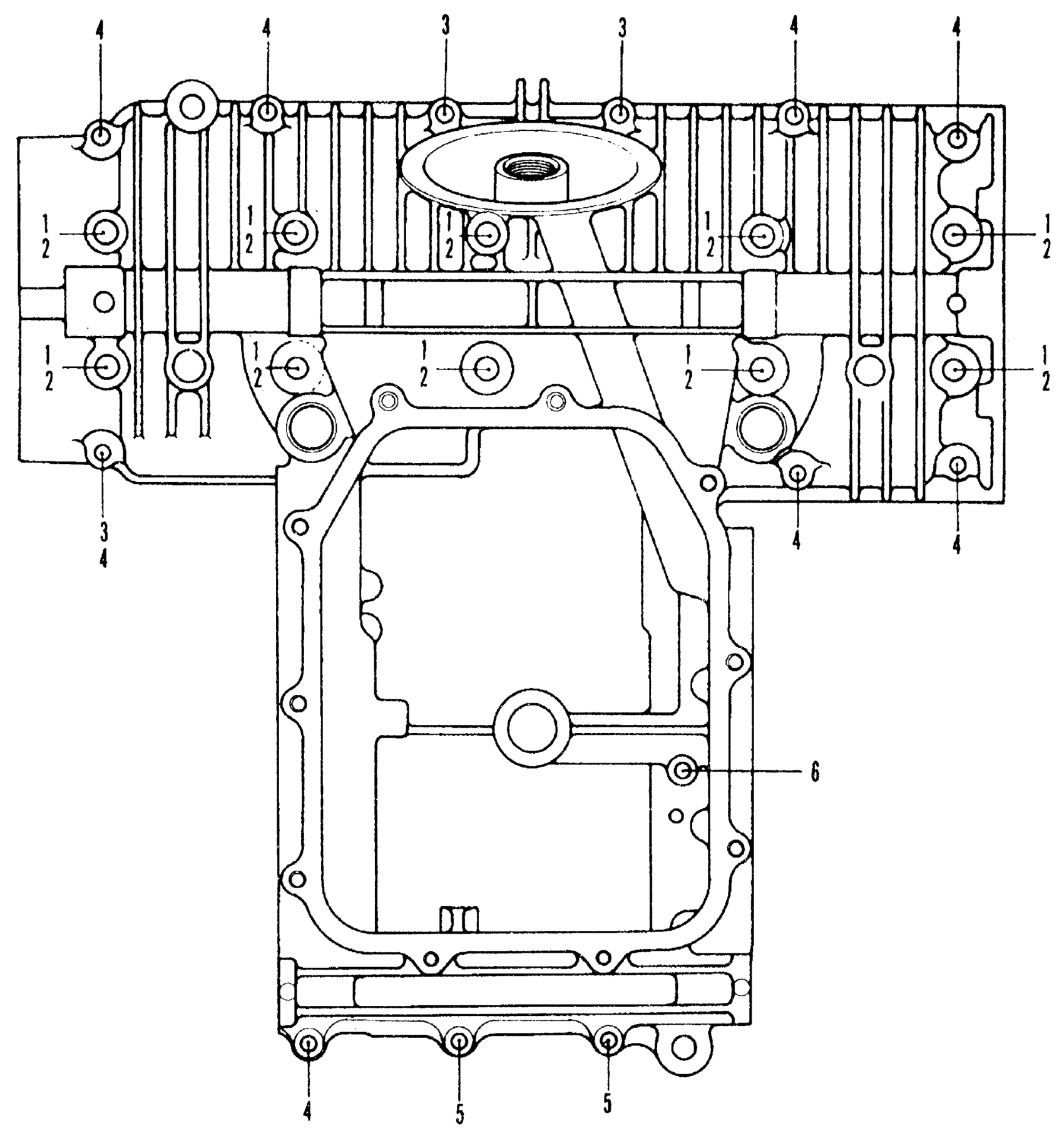

Honda CB500A MOTORCYCLE, JPN, VIN# CB500-1000001 LOWER CASE (BOLT, WASHER) Diagram

#

Description

Price

1

BOLT, HEX. (8X100) (NOT AVAILABLE)

90084-323-000

Unavailable

2

WASHER, THRUST (14MM)

90485-035-000

$2.72

3

BOLT, FLANGE (6X32) | Use up to Engine SN 1003154 This part replaces 95700-06032-00.

95701-06032-00

$1.88

3

BOLT, FLANGE (6X32) | Use from Engine SN 1003154 This part replaces 95700-06032-00.

95701-06032-00

$1.88

3

BOLT, FLANGE (6X32) | Use up to Engine SN 1003154

95701-06032-00

$1.88

3

BOLT, FLANGE (6X32) | Use from Engine SN 1003154

95701-06032-00

$1.88

4

BOLT, FLANGE (6X40) | Use up to Engine SN 1003154 This part replaces 95700-06040-00.

95701-06040-00

$1.88

4

BOLT, FLANGE (6X40) | Use from Engine SN 1003155 This part replaces 95700-06040-00.

95701-06040-00

$1.88

4

BOLT, FLANGE (6X40) | Use up to Engine SN 1003154

95701-06040-00

$1.88

4

BOLT, FLANGE (6X40) | Use from Engine SN 1003155

95701-06040-00

$1.88

5

BOLT, FLANGE (6X55) This part replaces 95700-06055-00.

95701-06055-00

$2.75

5

BOLT, FLANGE (6X55)

95701-06055-00

$2.75

6

BOLT, FLANGE (6X105) This part replaces 95700-06105-00.

95701-06105-00

Unavailable

6

BOLT, FLANGE (6X105)

95701-06105-00

Unavailable
