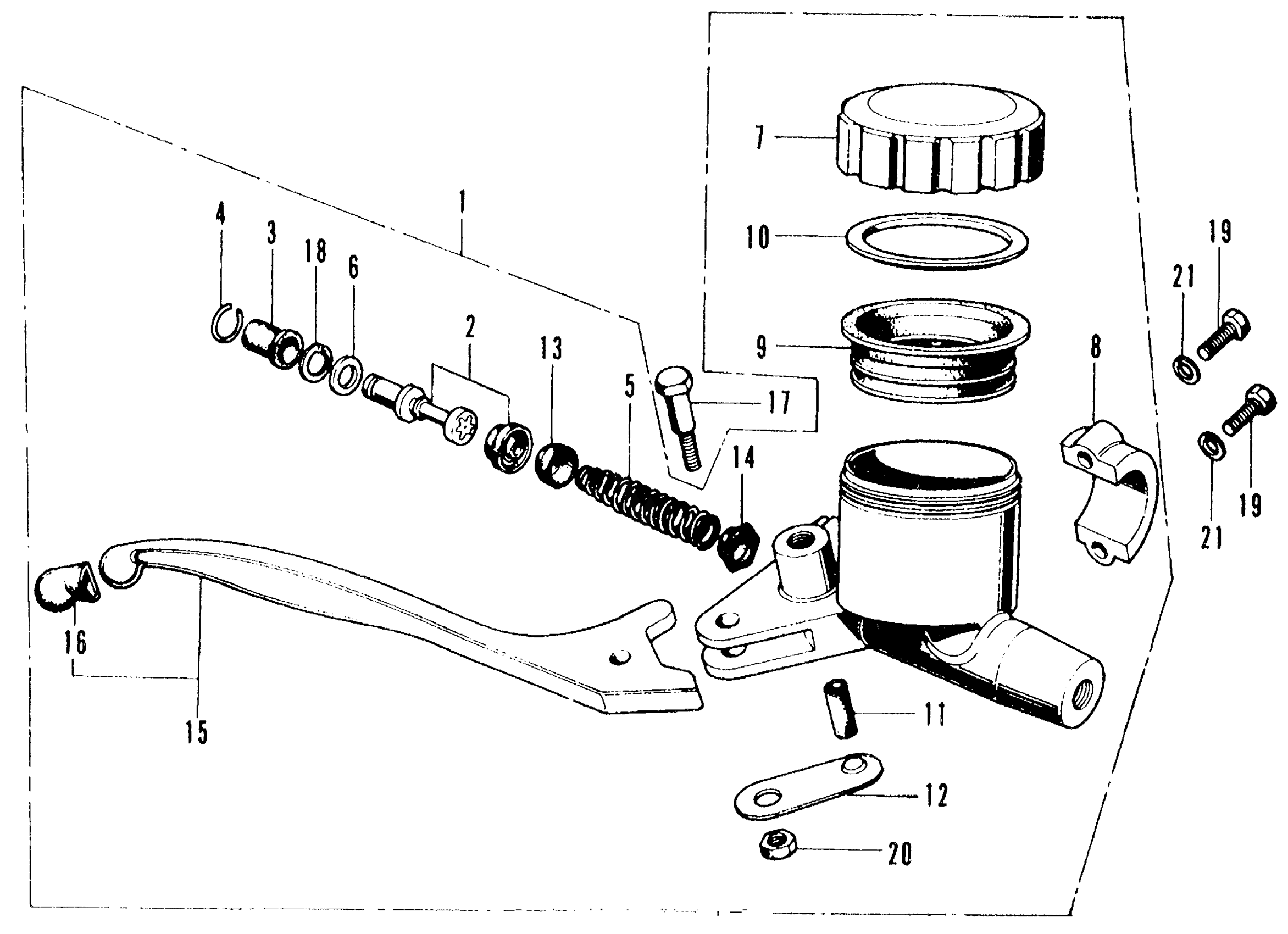

Honda CB500A MOTORCYCLE, JPN, VIN# CB500-1000001 FRONT BRAKE MASTER + CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY. (N/A: SEE COMPONENTS) This part replaces 45500-300-050.

45500-341-771

Unavailable

1

MASTER CYLINDER ASSY. (N/A: SEE COMPONENTS) This part replaces 45500-341-670.

45500-341-771

Unavailable

1

MASTER CYLINDER ASSY. (N/A: SEE COMPONENTS) This part replaces 45500-341-671.

45500-341-771

Unavailable

1

MASTER CYLINDER ASSY. (N/A: SEE COMPONENTS) This part replaces 45500-341-770.

45500-341-771

Unavailable

1

MASTER CYLINDER ASSY. (N/A: SEE COMPONENTS)

45500-341-771

Unavailable

2

PISTON SET

45502-300-305

Unavailable

3

BOOT

45504-300-003

Unavailable

4

STOPPER, BOOT

45505-300-003

Unavailable

5

SPRING

45506-300-003

Unavailable

6

WASHER (10.5MM)

45512-300-003

Unavailable

7

CAP, OIL CUP This part replaces 45513-300-020.

43513-MJ6-006

Unavailable

7

CAP, OIL CUP This part replaces 45513-341-670.

43513-MJ6-006

Unavailable

7

CAP, OIL CUP This part replaces 45513-341-671.

43513-MJ6-006

Unavailable

7

CAP, OIL CUP

43513-MJ6-006

Unavailable

7

CAP, OIL CUP This part replaces 43513-461-771.

43513-MJ6-006

Unavailable

7

CAP, OIL CUP This part replaces 45513-341-770.

43513-MJ6-006

Unavailable

7

CAP, OIL CUP This part replaces 45513-341-771.

43513-MJ6-006

Unavailable

8

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

8

HOLDER, MASTER CYLINDER This part replaces 45517-300-003.

45517-MA5-671

$29.30

9

DIAPHRAGM

45520-300-000

$9.05

10

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

10

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$4.06

11

BUSH, R. HANDLEBAR CONTROL LEVER This part replaces 45526-300-000.

45526-341-000

Unavailable

11

BUSH, R. HANDLEBAR CONTROL LEVER

45526-341-000

Unavailable

12

PLATE, CONTROL LEVER BUSH SETTING

45527-300-000

Unavailable

13

CUP, FR. PRIMARY (NISSHIN)

46125-533-003

Unavailable

14

VALVE, CHECK (NISSHIN)

46140-533-003

Unavailable

15

LEVER, R. HANDLEBAR This part replaces 53170-300-000.

53175-369-003

Unavailable

15

LEVER, R. HANDLEBAR This part replaces 53170-333-000.

53175-369-003

Unavailable

15

LEVER, R. HANDLEBAR This part replaces 53170-369-003.

53175-369-003

Unavailable

15

LEVER, R. HANDLEBAR

53175-369-003

Unavailable

16

CAP A, LEVER This part replaces 53180-286-000.

95010-16001

$5.97

16

CAP A, LEVER This part replaces 95010-16000.

95010-16001

$5.97

16

CAP A, LEVER

95010-16001

$5.97

17

BOLT, HANDLEBAR LEVER PIVOT

90114-300-000

$8.07

18

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

19

BOLT, HEX. (6X25) This part replaces 93000-06025-0B.

93101-06025-0B

$2.00

19

BOLT, HEX. (6X25) This part replaces 93000-06025-02.

93101-06025-0B

$2.00

19

BOLT, HEX. (6X25)

93101-06025-0B

$2.00

20

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

20

NUT, HEX. (6MM)

94002-06000-0S

$1.49

21

WASHER, SPRING (6MM)

94111-06000

$1.49
