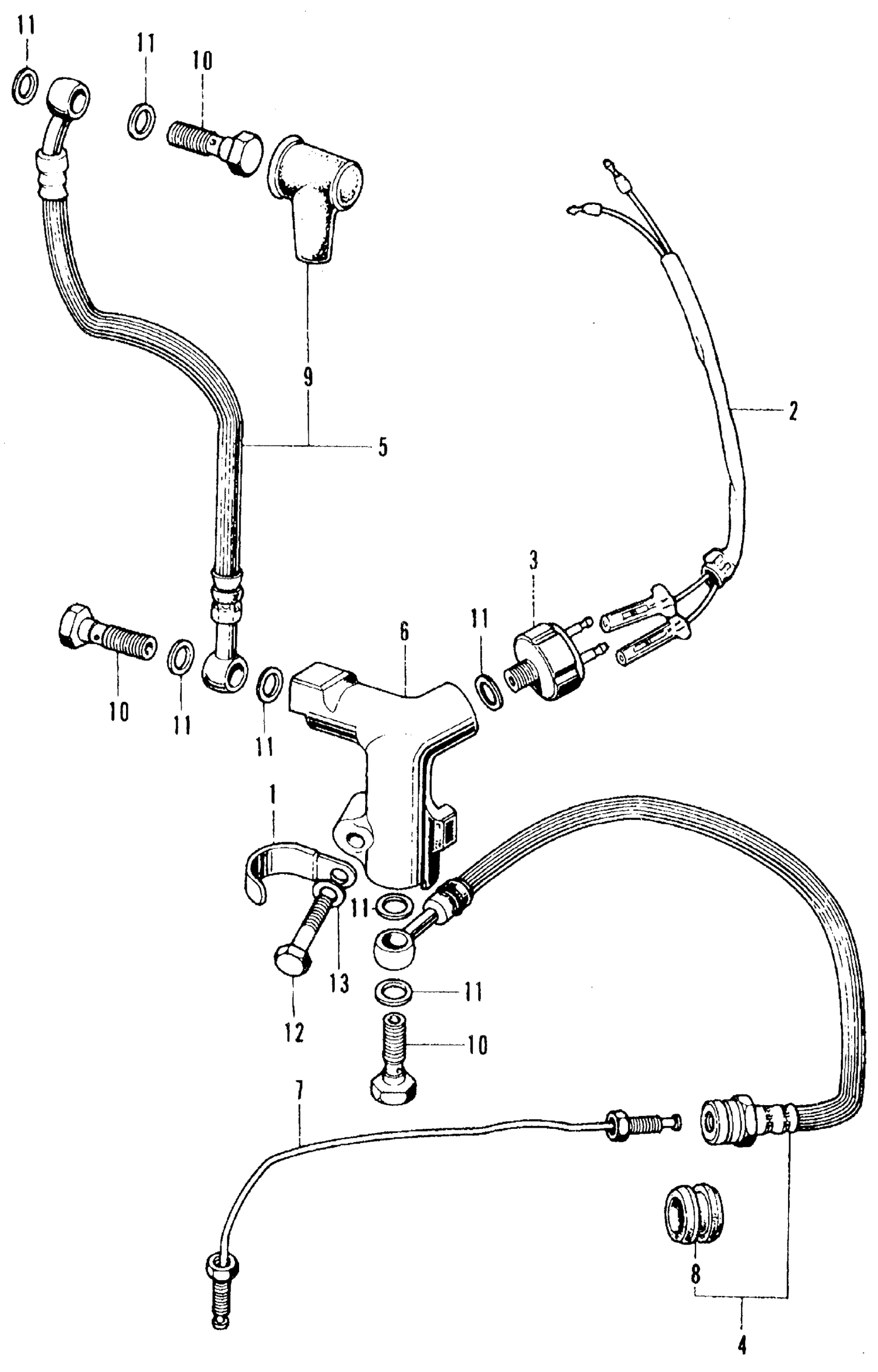

Honda CB500A MOTORCYCLE, JPN, VIN# CB500-1000001 FRONT BRAKE HOSE Diagram

#

Description
Price

1

CLAMP, CABLE

32111-323-000

$3.98

2

SUB-WIRE, FR. STOP SWITCH (NOT AVAILABLE)

35345-319-000

Unavailable

3

SWITCH, STOP (NOT AVAILABLE) | Use up to Frame SN 1015452 This part replaces 35350-300-006.

35350-300-016

Unavailable

3

SWITCH, STOP (NOT AVAILABLE)

35350-300-016

Unavailable

4

HOSE A, FR. BRAKE (NICHIRIN)

45125-300-003

Unavailable

4

HOSE A, FR. BRAKE (NICHIRIN) This part replaces 45125-300-020.

45125-300-003

Unavailable

5

HOSE B, FR. BRAKE (NICHIRIN)

45126-300-003

Unavailable

5

HOSE B, FR. BRAKE (NICHIRIN) (NOT AVAILABLE) This part replaces 45126-300-030.

45126-300-003

Unavailable

6

JOINT, THREE-WAY

45127-323-000

Unavailable

7

PIPE, FR. BRAKE

45128-323-020

$14.36

8

GROMMET, BRAKE HOSE

45146-300-000

$4.24

9

BOOT, MASTER CYLINDER

45522-300-010

$9.29

10

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

10

BOLT, OIL

90145-300-010

$9.68

11

WASHER, OIL BOLT

90545-300-000

$3.99

12

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

12

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

13

WASHER, SPRING (6MM)

94111-06000

$1.49
