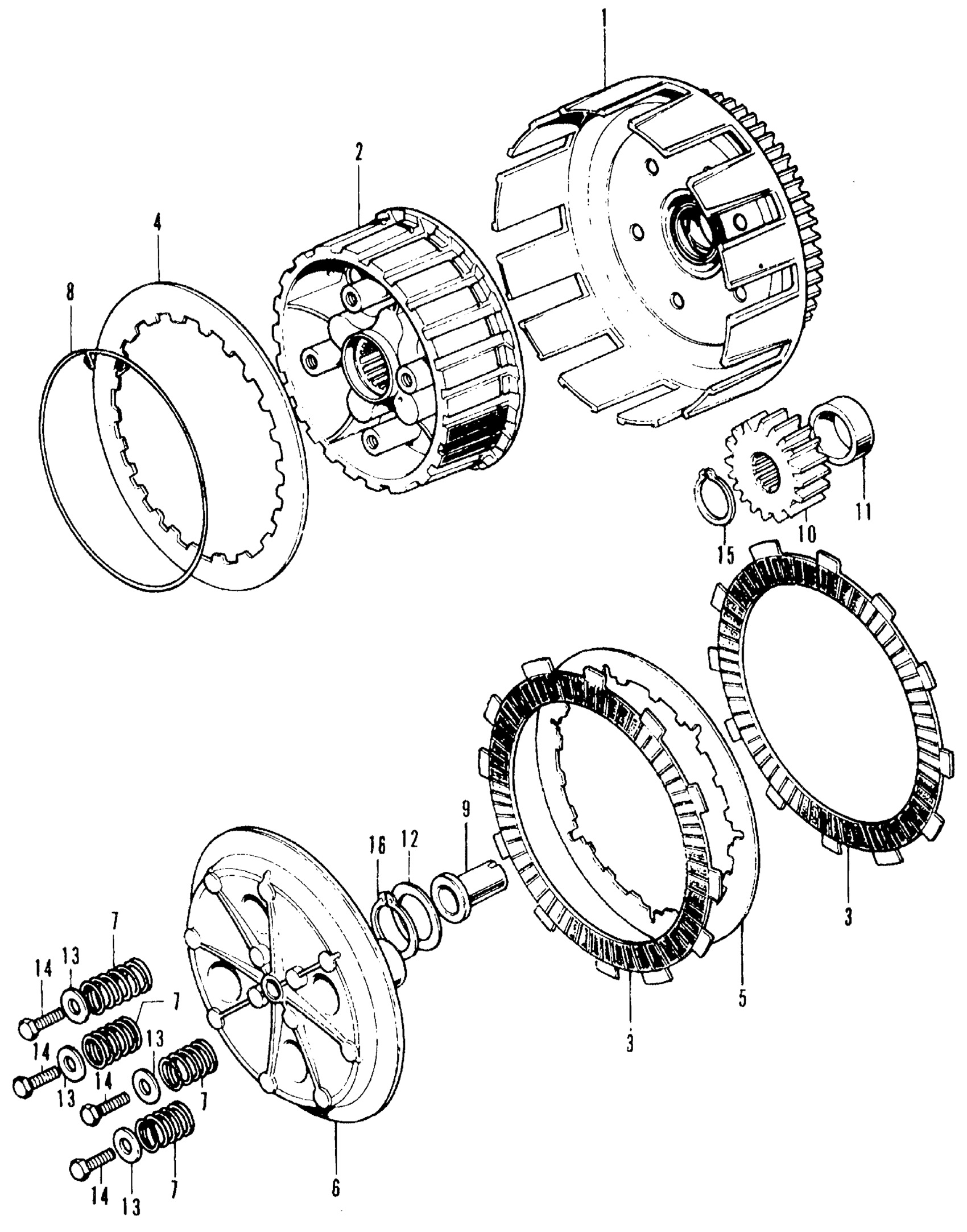

Honda CB500A MOTORCYCLE, JPN, VIN# CB500-1000001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE)

22100-323-000

Unavailable

2

CENTER, CLUTCH (NOT AVAILABLE) | Use up to Engine SN 1021198

22120-323-000

Unavailable

2

CENTER, CLUTCH | Use from Engine SN 1021199

22120-323-010

Unavailable

3

DISK, CLUTCH FRICTION | Use up to Engine SN 1018727 This part replaces 22201-323-000.

22201-KY2-000

$14.84

3

DISK, CLUTCH FRICTION | Use up to Engine SN 1018727 This part replaces 22201-323-010.

22201-KY2-000

$14.84

3

DISK, CLUTCH FRICTION

22201-KY2-000

$14.84

3

DISK, CLUTCH FRICTION | Use up to Engine SN 1018727

22201-KY2-000

$14.84

3

DISK, CLUTCH FRICTION This part replaces 22201-MA6-000.

22201-KY2-000

$14.84

3

DISK, CLUTCH FRICTION | Use up to Engine SN 1018727 This part replaces 22201-MA6-000.

22201-KY2-000

$14.84

4

PLATE A, CLUTCH (NOT AVAILABLE) | Use up to Engine SN 1021198

22311-286-000

Unavailable

5

PLATE B, CLUTCH | Use up to Engine SN 1018727

22321-KA4-700

$21.59

5

PLATE B, CLUTCH

22321-KA4-700

$21.59

5

PLATE B, CLUTCH | Use up to Engine SN 1018727 This part replaces 22321-286-000.

22321-KA4-700

$21.59

5

PLATE B, CLUTCH | Use up to Engine SN 1018727 This part replaces 22321-323-000.

22321-KA4-700

$21.59

5

PLATE B, CLUTCH This part replaces 22321-323-000.

22321-KA4-700

$21.59

6

PLATE, CLUTCH PRESSURE This part replaces 22350-286-000.

22350-329-000

Unavailable

6

PLATE, CLUTCH PRESSURE

22350-329-000

Unavailable

7

SPRING, CLUTCH This part replaces 22401-275-000.

22401-323-003

$7.70

7

SPRING, CLUTCH This part replaces 22401-323-000.

22401-323-003

$7.70

7

SPRING, CLUTCH

22401-323-003

$7.70

8

RING, CLUTCH PLATE STOPPER (NOT AVAILABLE) | Use up to Engine SN 1021198

22431-259-000

Unavailable

9

PIECE, CLUTCH LIFTER JOINT

22838-323-000

Unavailable

10

GEAR, PRIMARY DRIVE (23T)

23103-323-000

Unavailable

11

COLLAR (22X13.6)

23105-323-000

Unavailable

12

SPACER (0.1MM) (NOT AVAILABLE) | Use up to Engine SN 1021198 This part replaces 90458-323-000.

90458-323-010

Unavailable

12

SPACER (0.1MM) (NOT AVAILABLE) | Use from Engine SN 1021199

90458-323-010

Unavailable

12

SPACER (0.3MM) (NOT AVAILABLE) | Use up to Engine SN 1021198

90459-323-000

Unavailable

12

SPACER (0.3MM) (NOT AVAILABLE) | Use from Engine SN 1021199

90459-323-010

Unavailable

12

SPACER (0.5MM) (NOT AVAILABLE) | Use up to Engine SN 1021198

90460-323-000

Unavailable

12

SPACER (0.5MM) (NOT AVAILABLE) | Use from Engine SN 1021199

90460-323-010

Unavailable

13

WASHER (6X19) (NOT AVAILABLE) | Use from Engine SN 1021199

22501-323-000

Unavailable

13

WASHER (6X19) | Use up to Engine SN 1021198

90481-259-000

Unavailable

14

BOLT, HEX. (6X20) (NOT AVAILABLE)

92020-06020

Unavailable

15

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

16

CIRCLIP (OUTER) (25MM) (SOURCE: VINTAGE PARTS INC.)

94510-25150

Unavailable
