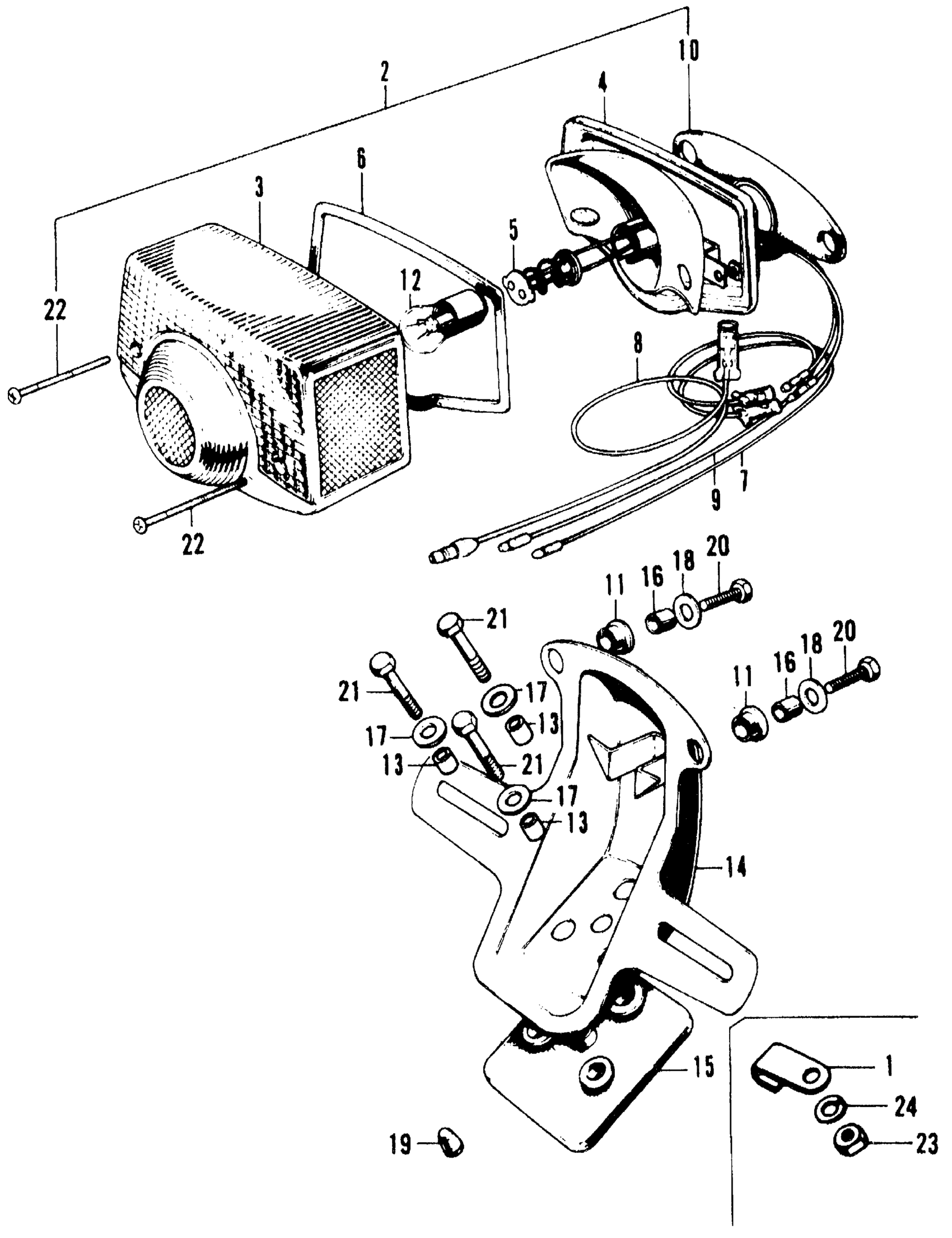

Honda CB500A MOTORCYCLE, JPN, VIN# CB500-1000001 CB500 TAILLIGHT Diagram

#

Description
Price

1

CLAMP, CABLE

32111-323-000

$3.98

2

TAILLIGHT UNIT (NOT AVAILABLE)

33701-300-671

Unavailable

3

LENS, TAILLIGHT

33702-077-671

$36.90

4

BASE, TAILLIGHT

33703-077-671

Unavailable

5

WIRE, TAILLIGHT

33708-077-671

Unavailable

6

GASKET, TAILLIGHT

33709-077-671

$3.41

7

CABLE, TAILLIGHT SUB (NOT AVAILABLE) This part replaces 33711-300-000.

33711-323-000

Unavailable

7

CABLE, TAILLIGHT SUB (NOT AVAILABLE)

33711-323-000

Unavailable

8

CABLE, TAILLIGHT GROUND (STANLEY) (NOT AVAILABLE)

33712-300-003

Unavailable

9

CABLE, STOP LIGHT SUB (NOT AVAILABLE) This part replaces 33713-300-000.

33713-323-000

Unavailable

9

CABLE, STOP LIGHT SUB (NOT AVAILABLE)

33713-323-000

Unavailable

10

GASKET, TAILLIGHT BASE (NOT AVAILABLE)

33718-077-671

Unavailable

11

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

12

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 33551-568-610.

34906-313-671

$6.67

12

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

12

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34906-268-810.

34906-313-671

$6.67

12

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

13

COLLAR A, RR. FENDER This part replaces 80108-061-000.

80108-061-010

$4.12

13

COLLAR A, RR. FENDER

80108-061-010

$4.12

14

BRACKET, NUMBER PLATE *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

84701-300-672XW

Unavailable

15

SEAT, NUMBER PLATE BRACKET (NOT AVAILABLE)

84702-300-010

Unavailable

16

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

17

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

17

WASHER (18MM)

90581-831-650

$1.87

18

WASHER (18MM)

90581-831-650

$1.87

19

PLUG, CONE

90899-283-000

$2.56

20

BOLT, HEX. (5X20) This part replaces 92000-05020-0B.

92101-05020-0B

Unavailable

21

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

21

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

22

SCREW, PAN (4X50) (NOT AVAILABLE)

93500-04050-4J

Unavailable

23

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM)

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

24

WASHER, SPRING (6MM)

94111-06000

$1.49
