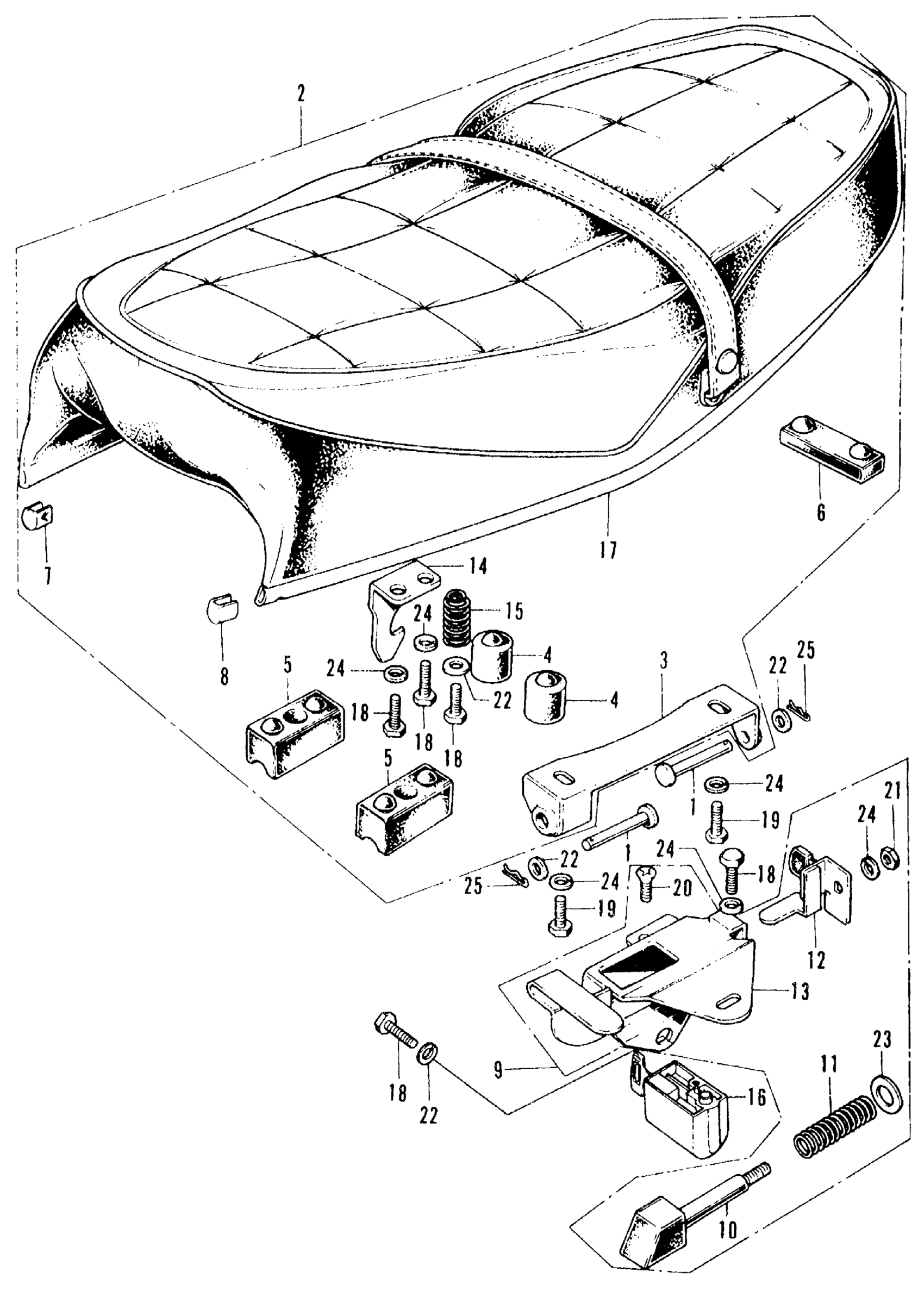

Honda CB500A MOTORCYCLE, JPN, VIN# CB500-1000001 CB500 SEAT Diagram

#

Description
Price

1

BAR, SEAT HINGE

77103-313-000

Unavailable

2

SEAT ASSY. *NH1L* (BLACK) (NOT AVAILABLE)

77200-323-030A

Unavailable

3

HINGE, SEAT (NOT AVAILABLE) This part replaces 77201-323-000.

77201-323-010

Unavailable

3

HINGE, SEAT (NOT AVAILABLE)

77201-323-010

Unavailable

4

RUBBER A, SEAT SETTING

77204-286-020

$10.02

5

RUBBER, SEAT SETTING

77204-292-000

$9.11

6

RUBBER, SEAT SETTING

77204-312-000

$5.05

7

GARNISH, R. SEAT MOLDING (NOT AVAILABLE)

77211-323-300

Unavailable

8

GARNISH, L. SEAT MOLDING (NOT AVAILABLE)

77212-323-300

Unavailable

9

CATCH ASSY., SEAT (NOT AVAILABLE)

77230-323-020

Unavailable

10

SLIDER, SEAT CATCH (NOT AVAILABLE)

77231-317-670

Unavailable

11

SPRING, SEAT CATCH (NOT AVAILABLE)

77232-300-000

Unavailable

12

LEVER, SEAT CATCH (NOT AVAILABLE)

77233-323-010

Unavailable

13

PLATE, SEAT CATCH (NOT AVAILABLE)

77234-323-030

Unavailable

14

HOOK, SEAT CATCH (NOT AVAILABLE)

77235-323-000

Unavailable

15

SPRING, SEAT LIFT (NOT AVAILABLE)

77244-300-000

Unavailable

16

LOCK, HANDLEBAR (HONDALOCK)

53600-086-007

$47.89

16

LOCK, HANDLEBAR This part replaces 77250-323-000.

53600-086-007

$47.89

16

LOCK, HANDLEBAR This part replaces 77250-323-007.

53600-086-007

$47.89

17

COVER SET, TOP (NOT AVAILABLE)

77270-323-003

Unavailable

18

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

20

SCREW, FLAT (6X10) This part replaces 93600-06010.

93600-06010-0A

$3.90

20

SCREW, FLAT (6X10)

93600-06010-0A

$3.90

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

WASHER, PLAIN (8MM)

94102-08000

$1.49

24

WASHER, SPRING (6MM)

94111-06000

$1.49

25

PIN, LOCK (6MM)

94251-06000

$1.49
