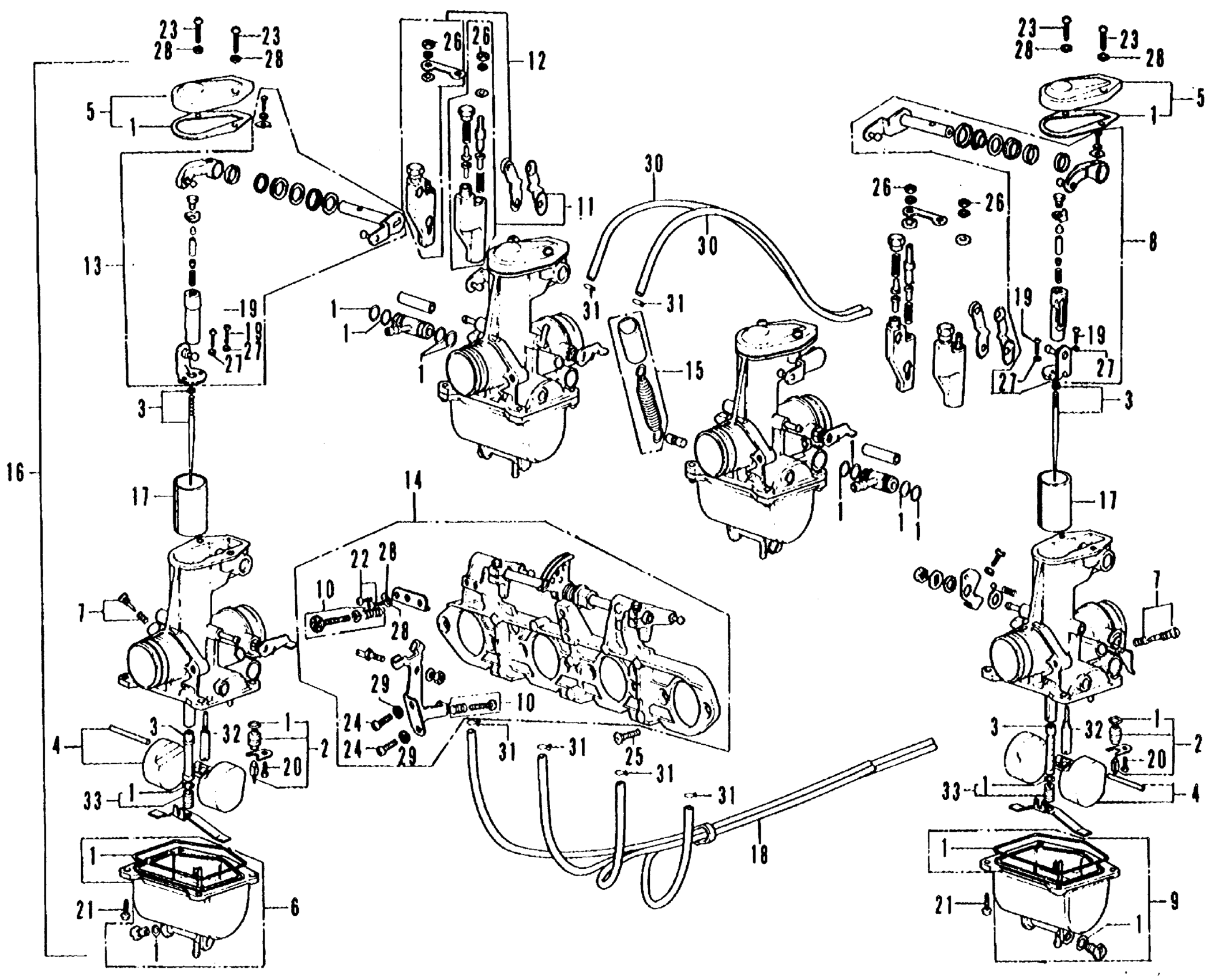

Honda CB500A MOTORCYCLE, JPN, VIN# CB500-1000001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-323-004.

16010-323-315

$21.27

1

GASKET SET This part replaces 16010-323-305.

16010-323-315

$21.27

2

VALVE SET, FLOAT

16011-329-004

$44.11

3

NEEDLE SET, JET

16012-323-004

Unavailable

4

FLOAT SET

16013-329-004

Unavailable

5

TOP SET (NOT AVAILABLE)

16014-323-004

Unavailable

6

CHAMBER SET A, FLOAT (NOT AVAILABLE)

16015-323-004

Unavailable

7

SCREW SET A (NOT AVAILABLE)

16016-323-004

Unavailable

8

ARM SET A, LINK (NOT AVAILABLE)

16018-323-004

Unavailable

9

CHAMBER SET B, FLOAT

16023-323-004

Unavailable

10

SCREW SET B (NOT AVAILABLE)

16028-323-004

Unavailable

11

HOLDER SET A, ADJ.

16029-323-004

Unavailable

12

HOLDER SET B, ADJ. (NOT AVAILABLE)

16030-323-004

Unavailable

13

ARM SET B, LINK (NOT AVAILABLE)

16031-323-004

Unavailable

14

PLATE SET, STAY

16035-323-004

Unavailable

15

TUBE SET, PROTECT (NOT AVAILABLE)

16036-323-004

Unavailable

16

CARBURETOR ASSY. This part replaces 16100-323-004.

16100-323-024

Unavailable

16

CARBURETOR ASSY. This part replaces 16100-323-014.

16100-323-024

Unavailable

17

VALVE, THROTTLE (NOT AVAILABLE)

16111-323-004

Unavailable

18

TUBE ASSY., OVERFLOW (NOT AVAILABLE) This part replaces 16290-323-000.

16290-323-010

Unavailable

18

TUBE ASSY., OVERFLOW (NOT AVAILABLE)

16290-323-010

Unavailable

19

SCREW, PAN (3X10)

93500-03010-0A

$1.49

20

SCREW, PAN (4X10)

93500-04010-0A

$1.49

21

SCREW, PAN (4X12)

93500-04012-0A

$1.49

22

SCREW, PAN (5X12)

93500-05012-0A

$1.49

23

SCREW, PAN (5X16)

93500-05016-0A

$1.49

24

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

24

SCREW, PAN (6X12)

93500-06012-0A

$1.49

24

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

25

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

25

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

26

NUT, HEX. (5MM)

94001-05000-0S

$2.74

27

WASHER, SPRING (3MM)

94111-03000

$1.49

28

WASHER, SPRING (5MM)

94111-05000

$1.49

29

WASHER, SPRING (6MM)

94111-06000

$1.49

30

BULK HOSE, FUEL (3.5X3000) (3.5X330)

95001-35003-60M

$20.85

31

CLIP, TUBE (B7)

95002-02070

$1.80

32

JET, SLOW (#40)

99124-076-0400

$9.85

33

JET SET, SECONDARY MAIN (#100)

99202-601-1000

Unavailable
