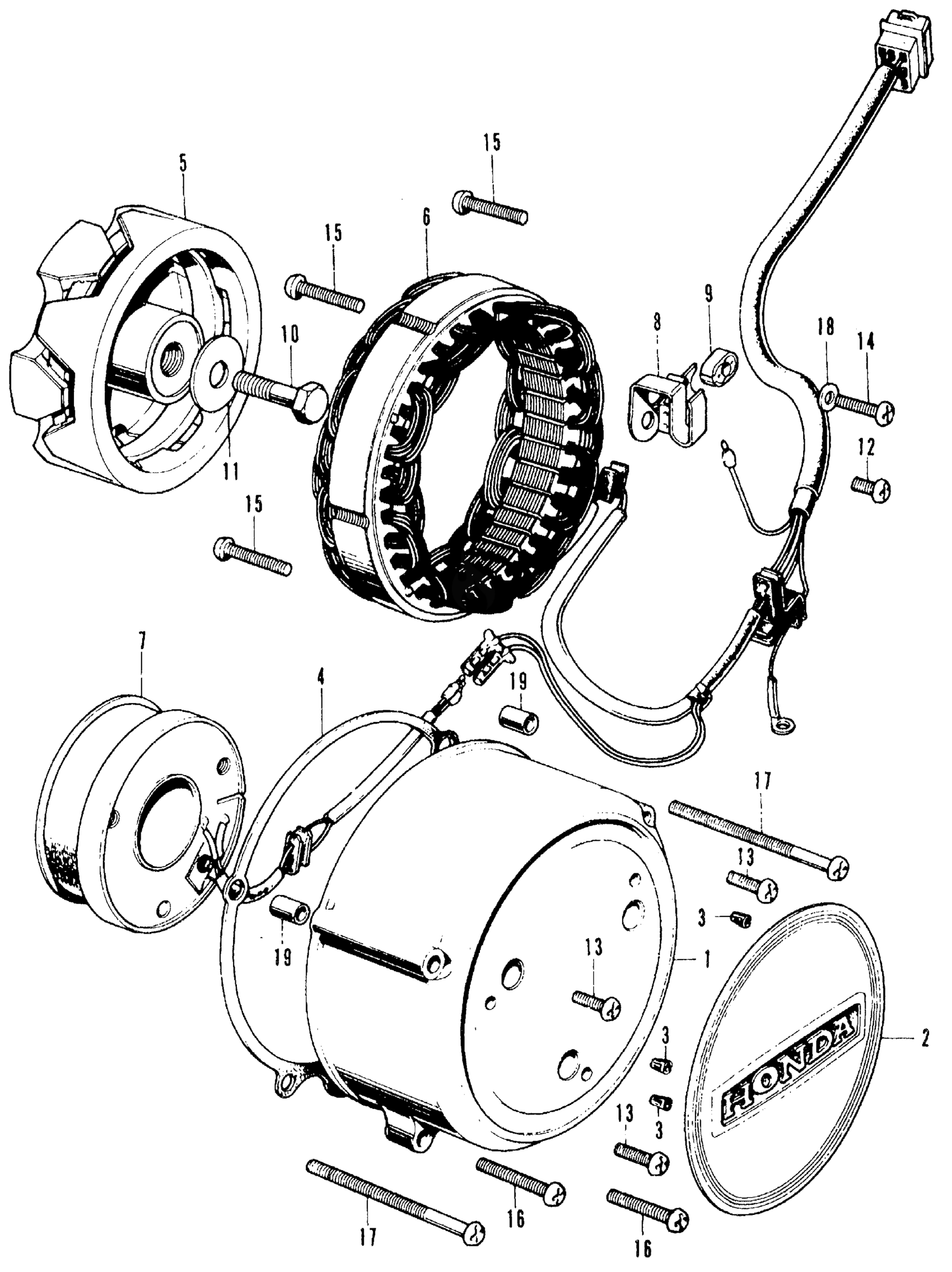

Honda CB500A MOTORCYCLE, JPN, VIN# CB500-1000001 ALTERNATOR Diagram

#

Description
Price

1

COVER A, ALTERNATOR (NOT AVAILABLE)

11631-323-000

Unavailable

2

COVER B, ALTERNATOR (UEHARA)

11632-323-003

Unavailable

3

CLIP, PUSH (J-TYPE)

11633-323-000

$2.52

4

GASKET, ALTERNATOR COVER (AS) This part replaces 11691-323-000.

11691-323-306

Unavailable

4

GASKET, ALTERNATOR COVER (AS)

11691-323-306

Unavailable

5

ROTOR (HITACHI) This part replaces 31101-323-005.

31101-404-831

Unavailable

5

ROTOR (HITACHI)

31101-404-831

Unavailable

6

STATOR (HITACHI) (NOT AVAILABLE) | Use up to Engine SN 1033424 This part replaces 31102-323-005.

31102-323-305

Unavailable

6

STATOR (HITACHI) (NOT AVAILABLE) This part replaces 31102-323-015.

31102-323-305

Unavailable

6

STATOR (HITACHI) (NOT AVAILABLE)

31102-323-305

Unavailable

7

COIL, FIELD (NOT AVAILABLE) This part replaces 31103-323-005.

31103-390-005

Unavailable

7

COIL, FIELD (NOT AVAILABLE)

31103-390-005

Unavailable

8

STATOR, NEUTRAL SWITCH (NOT AVAILABLE)

35752-323-000

Unavailable

9

ROTOR, NEUTRAL SWITCH (NOT AVAILABLE)

35753-323-000

Unavailable

10

BOLT, UBS (10X32) This part replaces 90014-323-000.

90014-333-003

Unavailable

10

BOLT, UBS (10X32) This part replaces 90014-333-000.

90014-333-003

Unavailable

10

BOLT, UBS (10X32)

90014-333-003

Unavailable

11

WASHER (10X30X3.5T) This part replaces 90401-551-000.

90401-880-000

$8.28

11

WASHER (10X30X3.5T)

90401-880-000

$8.28

12

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

12

SCREW, PAN (6X12)

93500-06012-0A

$1.49

12

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

13

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

13

SCREW, PAN (6X16)

93500-06016-0A

$1.49

14

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

14

SCREW, PAN (6X20)

93500-06020-0A

$1.49

15

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

15

SCREW, PAN (6X28)

93500-06028-0A

$1.49

16

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

16

SCREW, PAN (6X32)

93500-06032-0A

$1.49

17

SCREW, PAN (6X65) This part replaces 93500-06065.

93500-06065-0A

$1.53

17

SCREW, PAN (6X65)

93500-06065-0A

$1.53

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

PIN A, DOWEL (8X14)

94301-08140

$2.25
