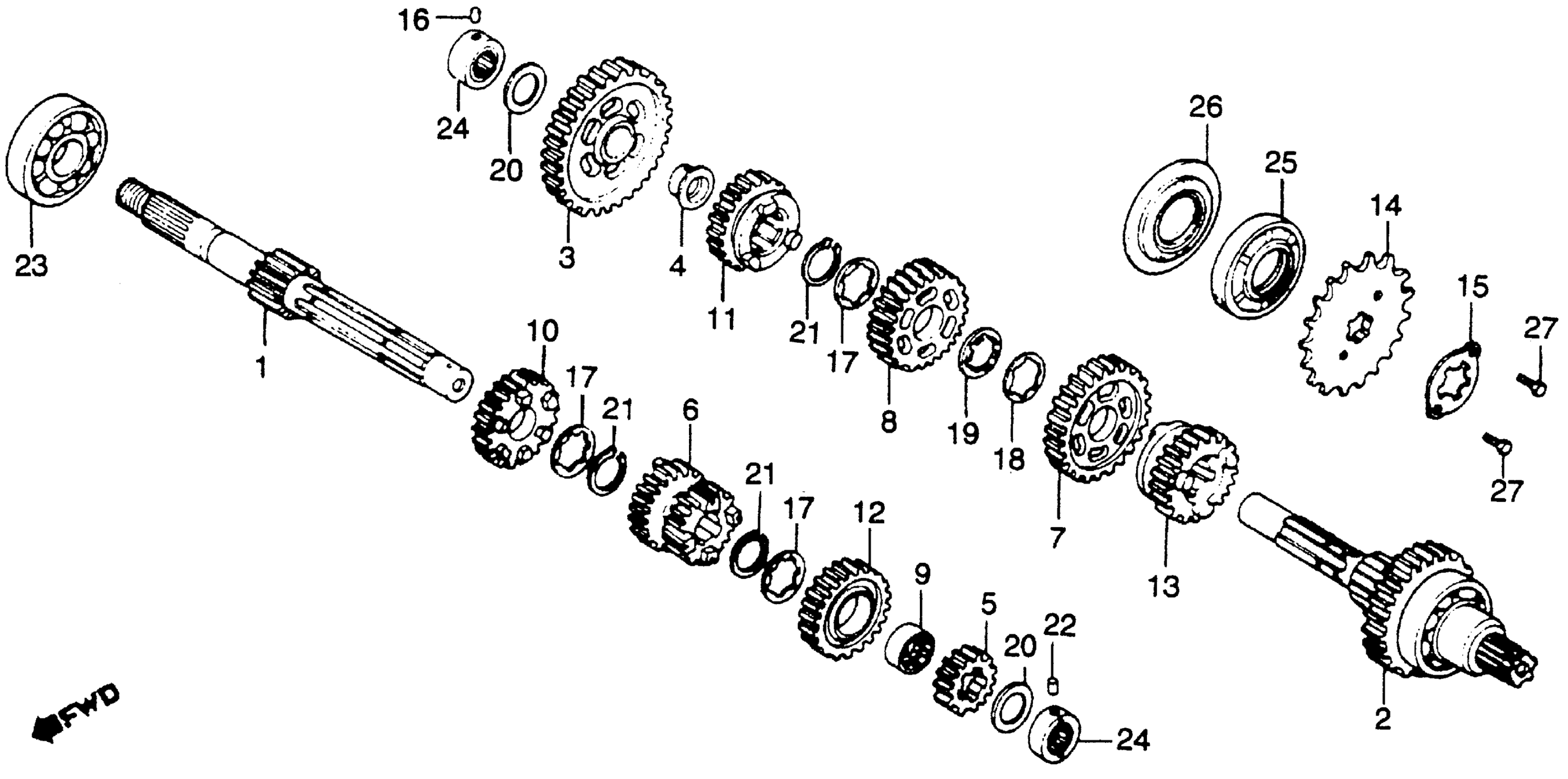

Honda CB450TA (82) HAWK, JPN, VIN# JH2PC050-CM000001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (14T) This part replaces 23211-MC0-000.

23211-MC0-010

Unavailable

1

MAINSHAFT, TRANSMISSION (14T)

23211-MC0-010

Unavailable

2

COUNTERSHAFT, TRANSMISSION (37T) This part replaces 23220-443-000.

23220-443-010

Unavailable

2

COUNTERSHAFT, TRANSMISSION (37T)

23220-443-010

Unavailable

3

GEAR, COUNTERSHAFT FIRST (40T) (NOT AVAILABLE)

23421-MC0-000

Unavailable

4

BUSH (20MM) (NOT AVAILABLE)

23422-443-000

Unavailable

5

GEAR, MAINSHAFT SECOND (19T) (NOT AVAILABLE)

23431-MC0-000

Unavailable

6

GEAR, MAINSHAFT THIRD & FOURTH (22T, 25T)

23451-443-000

Unavailable

7

GEAR, COUNTERSHAFT THIRD (34T)

23461-MC0-000

Unavailable

8

GEAR, COUNTERSHAFT FOURTH (32T) This part replaces 23481-443-010.

23481-443-020

Unavailable

8

GEAR, COUNTERSHAFT FOURTH (32T)

23481-443-020

Unavailable

9

BUSH, SPLINE (28MM)

23485-369-000

$29.59

10

GEAR, MAINSHAFT FIFTH (27T) (NOT AVAILABLE)

23491-MC0-000

Unavailable

11

GEAR, COUNTERSHAFT FIFTH (29T)

23501-MC0-000

Unavailable

12

GEAR, MAINSHAFT TOP (NOT AVAILABLE)

23511-ME0-000

Unavailable

13

GEAR, COUNTERSHAFT TOP (27T) This part replaces 23521-ME0-000.

23521-ME0-010

Unavailable

13

GEAR, COUNTERSHAFT TOP (27T)

23521-ME0-010

Unavailable

14

SPROCKET, DRIVE (16T)

23801-344-000

Unavailable

15

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

16

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

17

WASHER, THRUST (25MM)

90451-413-000

$3.26

18

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

19

WASHER, LOCK (25MM)

90462-323-000

$3.77

20

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

20

WASHER, THRUST (20X1.00) This part replaces 90554-700-000.

90454-428-000

$2.53

21

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

22

PIN, BEARING SETTING (NOT AVAILABLE)

90705-413-000

Unavailable

23

BEARING, RADIAL BALL (6305) (NACHI)

91001-071-003

$46.05

24

BEARING, NEEDLE (20MM)

91022-415-008

$52.13

25

OIL SEAL (34X63X12)

91206-MC0-000

$18.67

26

OIL SEAL (34X66)

91211-393-003

$14.10

26

OIL SEAL (34X66) This part replaces 91211-393-005.

91211-393-003

$14.10

27

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

27

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

27

BOLT, HEX. (6X12)

92101-06012-0A

$1.49
