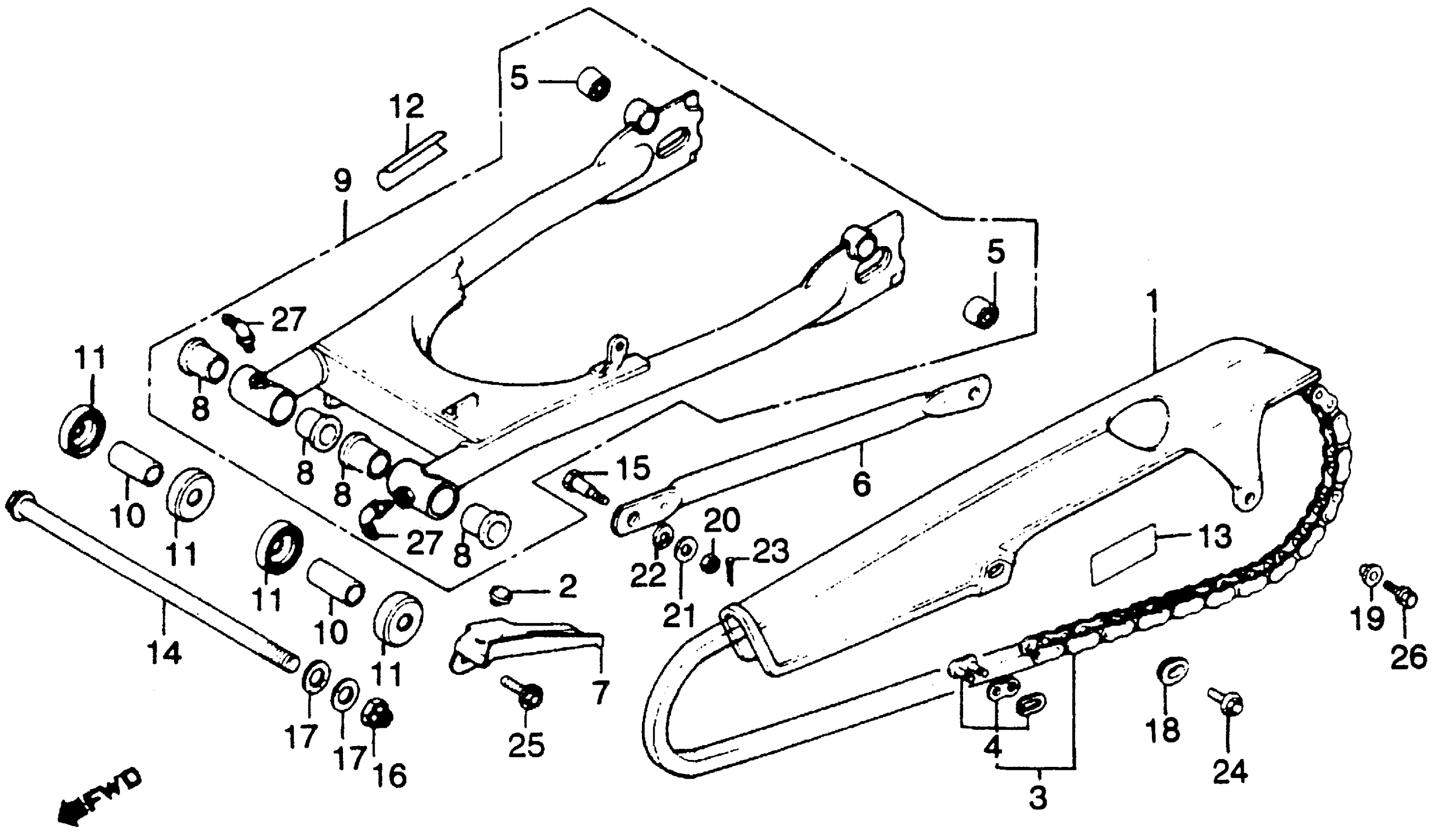

Honda CB450TA (82) HAWK, JPN, VIN# JH2PC050-CM000001 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-413-701

Unavailable

2

PLUG, CHAIN GUARD

40514-333-000

$2.38

3

CHAIN, DRIVE (RK50KS-102L) (TAKASAGO) (NOT AVAILABLE) This part replaces 40530-413-003.

405W3-413-505

Unavailable

3

CHAIN, DRIVE (RK50KS-102L) (TAKASAGO) (NOT AVAILABLE) This part replaces 40530-413-004.

405W3-413-505

Unavailable

3

CHAIN, DRIVE (RK50KS-102L) (TAKASAGO) (NOT AVAILABLE) This part replaces 40530-413-951.

405W3-413-505

Unavailable

4

MASTER LINK (RK50KS) (TAKASAGO)

40531-413-004

Unavailable

4

MASTER LINK

40531-413-951

Unavailable

5

RUBBER, RR. SWINGARM (LOWER)

40548-268-000

$7.58

6

ARM, RR. BRAKE STOPPER This part replaces 43431-413-000.

43431-460-010

Unavailable

6

ARM, RR. BRAKE STOPPER This part replaces 43431-460-000.

43431-460-010

Unavailable

6

ARM, RR. BRAKE STOPPER

43431-460-010

Unavailable

7

PLATE, OIL GUIDE (NOT AVAILABLE)

50750-413-000

Unavailable

8

BUSH, SWINGARM This part replaces 52108-356-006.

52109-KC1-003

$17.90

8

BUSH, SWINGARM

52109-KC1-003

$17.90

9

SWINGARM ASSY. *NH1* (BLACK) (NOT AVAILABLE)

52110-413-010ZA

Unavailable

10

COLLAR, R. SWINGARM This part replaces 52141-356-000.

52141-356-010

$80.28

10

COLLAR, R. SWINGARM

52141-356-010

$80.28

11

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$15.89

11

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$15.89

11

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$15.89

11

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$15.89

11

CAP, DUST SEAL (NOK)

52144-356-005

$15.89

12

LABEL, MUFFLER CAUTION

87504-028-670

$2.80

13

LABEL, TIRE CAUTION (NOT AVAILABLE)

87505-413-940

Unavailable

14

BOLT, SWINGARM PIVOT

90121-447-000

Unavailable

15

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.28

16

NUT, AXLE (14MM) This part replaces 90305-197-003.

90305-197-013

$5.86

16

NUT, AXLE (14MM)

90305-197-013

$5.86

17

WASHER, SWINGARM PIVOT

90501-447-000

Unavailable

18

WASHER (6X9)

90513-323-000

$1.69

19

WASHER, NUMBER BRACKET SETTING

90563-045-000

$2.97

20

NUT, HEX. (8MM)

94001-08000-0S

$1.31

21

WASHER, PLAIN (8MM)

94101-08000

Unavailable

22

WASHER, SPRING (8MM)

94111-10000

$1.24

23

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.01

23

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.01

23

PIN, COTTER (2.0X22)

94201-20220

$1.01

23

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.01

23

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.01

23

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.01

23

PIN, COTTER (2.0X35)

94201-20350

$1.01

23

PIN, COTTER (2.0X22)

94201-29220

$1.01

24

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$2.03

24

BOLT, FLANGE (6X12)

95701-06012-00

$2.03

25

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.50

25

BOLT, FLANGE (6X12)

95701-06012-08

$1.50

26

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.50

26

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

27

FITTING, GREASE (B.76S)

96201-80000

$2.37
