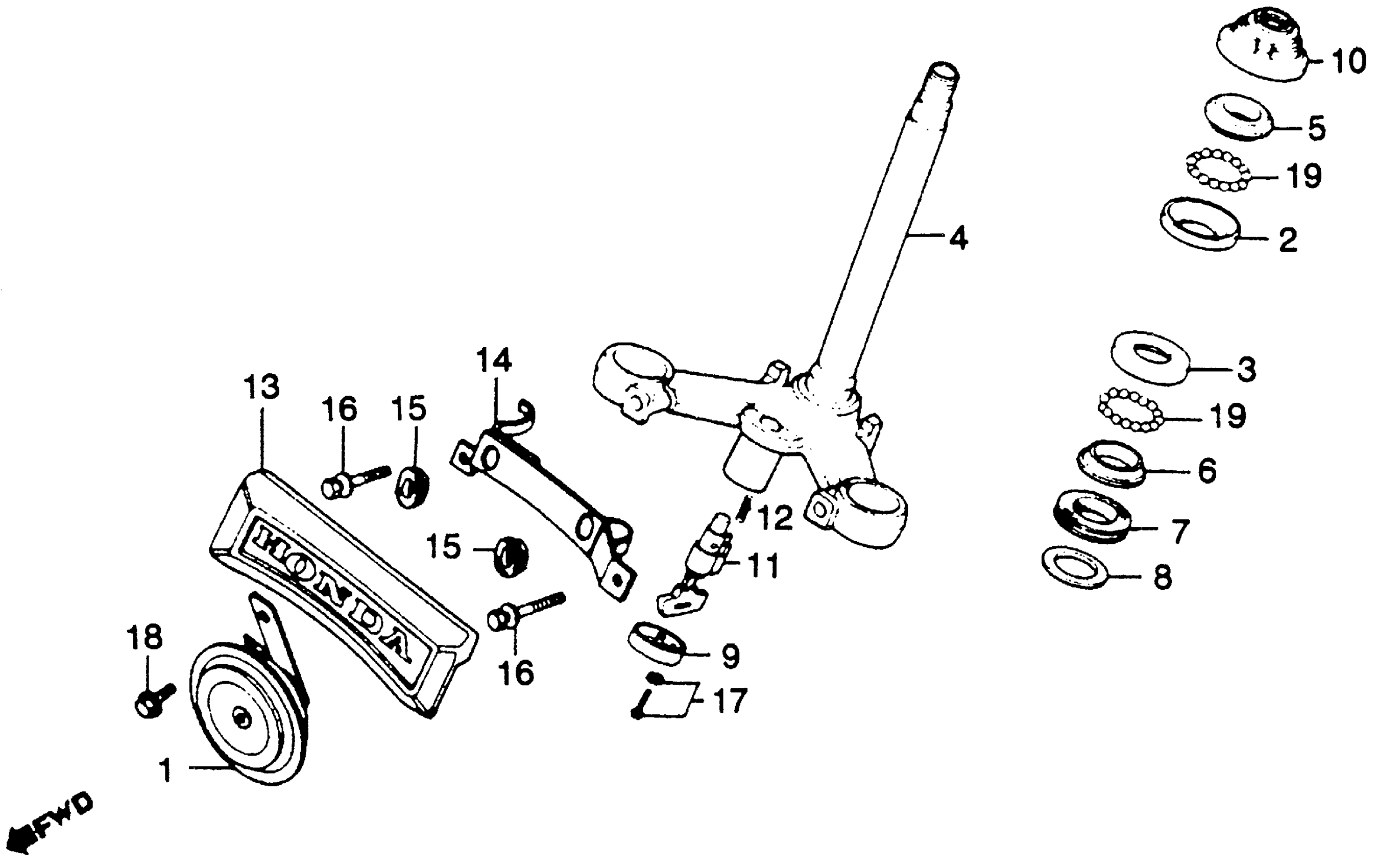

Honda CB450TA (82) HAWK, JPN, VIN# JH2PC050-CM000001 STEERING STEM + HORN Diagram

#

Description
Price

1

HORN (HIGH)

38110-MK6-008

Unavailable

1

HORN (HIGH) This part replaces 38110-443-004.

38110-MK6-008

Unavailable

1

HORN (HIGH) This part replaces 38110-443-621.

38110-MK6-008

Unavailable

2

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$19.29

2

RACE, STEERING BALL (UPPER)

50301-268-010

$19.29

3

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$18.94

3

RACE, STEERING BALL (LOWER)

50302-268-010

$18.94

4

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-447-000ZA

Unavailable

5

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$23.45

5

RACE, STEERING CONE (UPPER)

53211-268-010

$23.45

6

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$18.81

6

RACE, STEERING CONE (LOWER)

53212-250-010

$18.81

7

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$2.81

8

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.13

9

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE)

53215-391-670

Unavailable

10

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

11

LOCK, HANDLEBAR (NOT AVAILABLE)

53600-382-671

Unavailable

12

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

13

COVER, FR. (NOT AVAILABLE)

61401-447-000

Unavailable

14

STAY, FR. COVER (NOT AVAILABLE)

61405-MC0-670

Unavailable

15

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.42

16

BOLT-WASHER (8X40)

93481-08040-00

Unavailable

17

SCREW-WASHER (3X12) (NOT AVAILABLE)

93891-03012-00

Unavailable

18

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.03

18

BOLT, FLANGE (8X12)

95701-08012-00

$1.03

19

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
