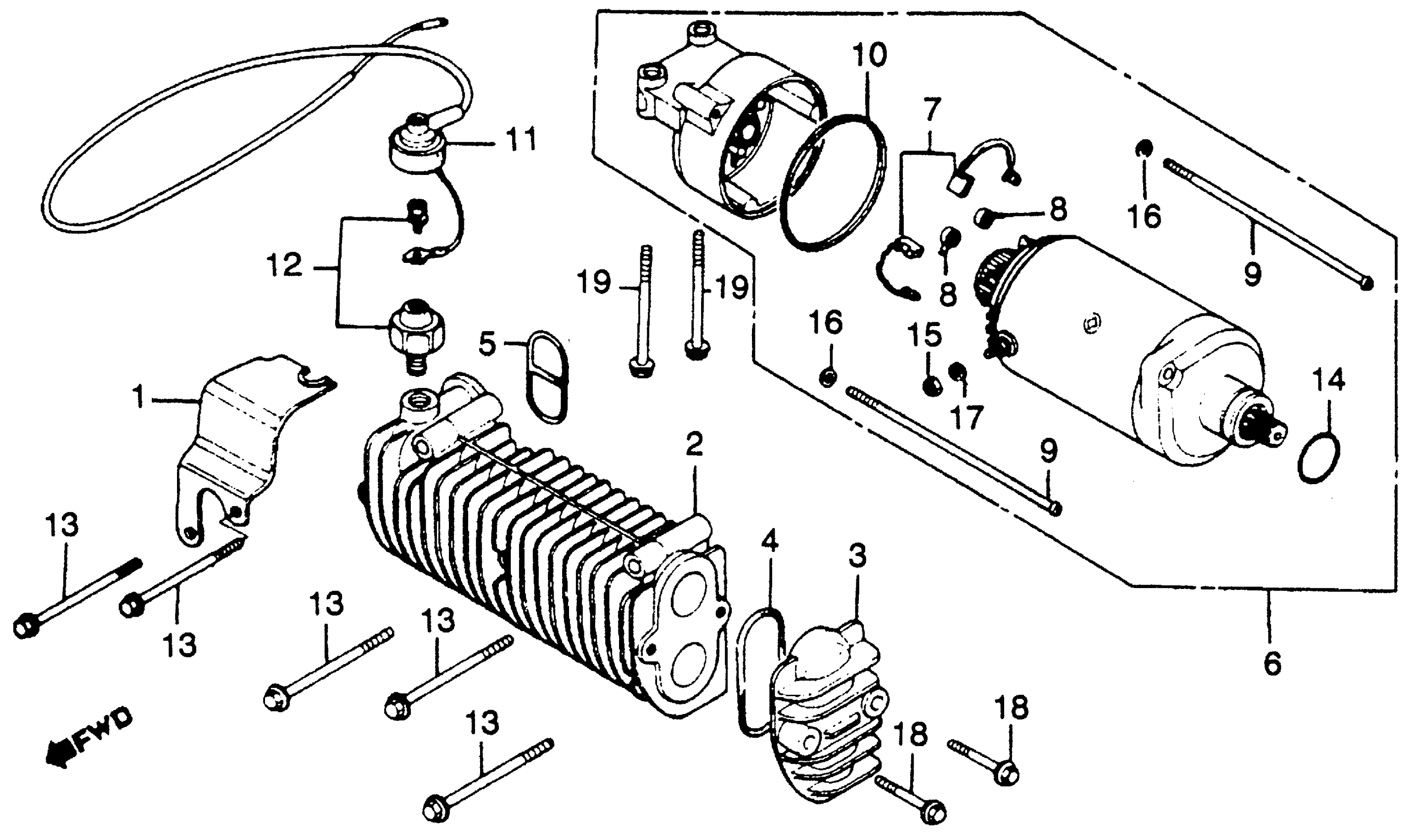

Honda CB450TA (82) HAWK, JPN, VIN# JH2PC050-CM000001 STARTING MOTOR + OIL COOLER Diagram

PROTECTOR, PRESSURE SWITCH (NOT AVAILABLE)

11711-MC0-000

Unavailable

COOLER, OIL (NOT AVAILABLE)

15811-MC0-000

Unavailable

CAP, OIL COOLER (NOT AVAILABLE)

15812-MC0-000

Unavailable

GASKET, OIL COOLER CAP (NOT AVAILABLE)

15911-417-000

Unavailable

GASKET, OIL COOLER

15912-MC0-000

Unavailable

MOTOR ASSY., STARTER This part replaces 31200-MC0-671.

31200-MC0-673

Unavailable

MOTOR ASSY., STARTER This part replaces 31200-MC0-672.

31200-MC0-673

Unavailable

MOTOR ASSY., STARTER

31200-MC0-673

Unavailable

BRUSH SET (MITSUBA)

31201-230-174

Unavailable

SPRING, BRUSH This part replaces 31204-225-154.

31204-230-174

$4.64

SPRING, BRUSH

31204-230-174

$4.64

BOLT, STARTER MOTOR COVER

31205-413-780

Unavailable

O-RING (60X1.4)

31206-402-008

Unavailable

CABLE, OIL PRESSURE SWITCH SUB (NOT AVAILABLE) This part replaces 32111-MC0-670.

32111-MC9-740

Unavailable

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MB9-004.

35500-MJ4-024

$42.43

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ0-004.

35500-MJ4-024

$42.43

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-004.

35500-MJ4-024

$42.43

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

BOLT, FLANGE (6X85) (NOT AVAILABLE)

90035-MC0-000

Unavailable

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1)

91312-MG7-003

$6.34

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

NUT, HEX. (6MM)

94002-06000-0S

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

BOLT, FLANGE (6X60) This part replaces 95700-06060-00.

95701-06060-00

$1.49

BOLT, FLANGE (6X60)

95701-06060-00

$1.49
